wtf are these wires?

Thread Tools

Search this Thread

Old 07-15-13, 03:53 PM
  #1
Full Member
Thread Starter

Claytons91's Avatar

Join Date: Jun 2013
Location: Macon
Posts: 112
Likes: 0
Received 0 Likes on 0 Posts
wtf are these wires?

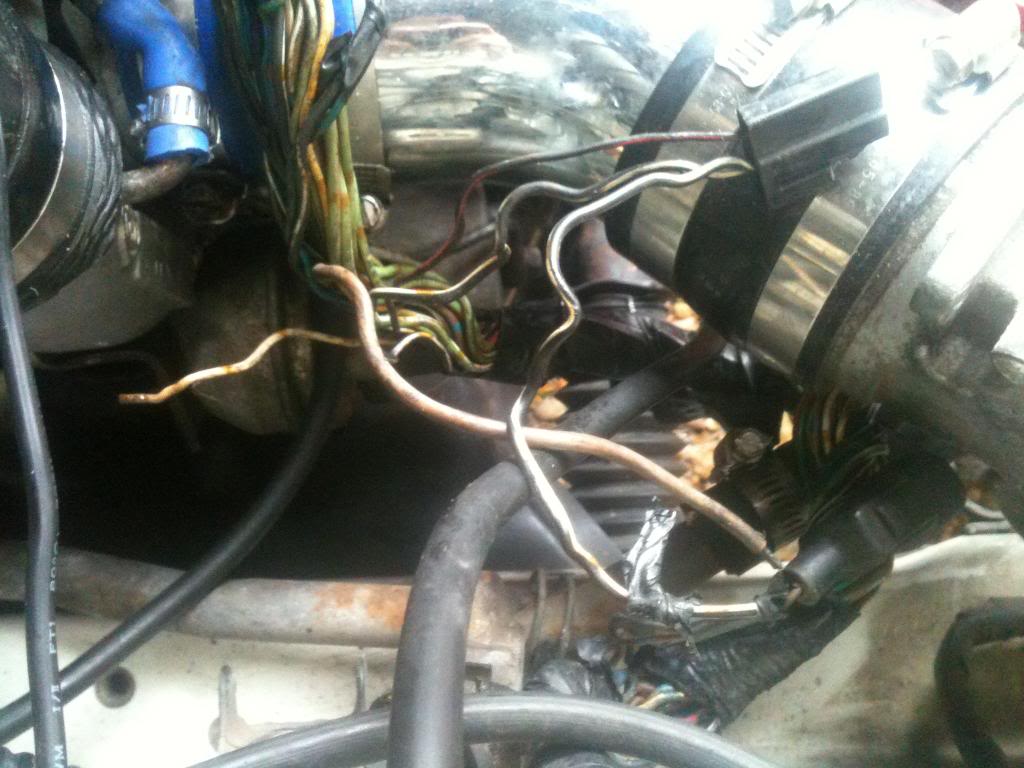

Can anyone help me identify these wires and if i need them?

Name: 067_zps920b7f80.jpg Views: 42 Size: 93.7 KB
Claytons91 is offline
Reply Like
Old 07-15-13, 04:17 PM
  #2
Moderator

iTrader: (1)

satch's Avatar

Join Date: Jun 2005
Location: tulsa,ok.
Posts: 11,738
Received 12 Likes on 11 Posts
There are only about twenty wires or so in the pic, which ones are you talking about? What are the specific wire colors?
satch is offline
Reply Like
Old 07-15-13, 04:59 PM
  #3
Full Member
Thread Starter

Claytons91's Avatar

Join Date: Jun 2013
Location: Macon
Posts: 112
Likes: 0
Received 0 Likes on 0 Posts
obliviously the ones that are cut and not connected to anything....
Claytons91 is offline
Reply Like
Old 07-15-13, 05:37 PM
  #4
Money talks-mine says bye

iTrader: (18)

cone_crushr's Avatar

Join Date: May 2005
Location: LBC, CA
Posts: 718
Received 13 Likes on 10 Posts
Wasn't particularly obvious to me either, but Satch's question is still valid since the color rendering of the pic is marginal. Is the small wire Y/R or Y/O? And S4/S5? or even better, year of TII (or JSPEC engine swap?)
cone_crushr is offline
Reply Like
Old 07-17-13, 09:56 PM
  #5
version 2.0

iTrader: (17)

texFCturboII's Avatar

Join Date: Mar 2007
Location: Fort Worth, TX
Posts: 3,590
Received 1 Like on 1 Post
Originally Posted by Claytons91
obliviously the ones that are cut and not connected to anything....
crappy phone pic, followed by jerk statement?

What color are the wires? We can't tell in your grainy image.
texFCturboII is offline
Reply Like
Old 07-17-13, 10:07 PM
  #6
Super-Pinoy

iTrader: (3)

PnoyRx7's Avatar

Join Date: Jul 2009
Location: Hamilton, Ontario
Posts: 1,725
Received 16 Likes on 16 Posts
No need for attitude on the forum with people trying to help.

Yeesh
PnoyRx7 is offline
Reply Like
Old 07-18-13, 07:33 PM
  #7
Full Member
Thread Starter

Claytons91's Avatar

Join Date: Jun 2013
Location: Macon
Posts: 112
Likes: 0
Received 0 Likes on 0 Posts
sorry, i'm mainly trying to find the O2 wire, is it a thick grey wire? only see one and my o2 isnt hooked up its the fat wire that looks orange in the pic.
Claytons91 is offline
Reply Like

Trending Topics

Old 07-18-13, 11:39 PM
  #8
Retired Moderator, RIP

iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes on 114 Posts
O2 will be shielded and usually around the TB area...across from the firewall.
misterstyx69 is offline
Reply Like
Old 07-19-13, 12:34 AM
  #9
Full Member
Thread Starter

Claytons91's Avatar

Join Date: Jun 2013
Location: Macon
Posts: 112
Likes: 0
Received 0 Likes on 0 Posts
yeah it was they thick grey wire, it had a black wire inside with metal braiding around it.
Claytons91 is offline
Reply Like
Old 07-19-13, 08:03 AM
  #10
Retired Moderator, RIP

iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes on 114 Posts
Originally Posted by Claytons91
yeah it was they thick grey wire, it had a black wire inside with metal braiding around it.
Yep..that'd be the Puppy ya want!
misterstyx69 is offline
Reply Like
