2nd Generation Specific (1986-1992) 1986-1992 Discussion including performance modifications and technical support sections.

Wont turn over

Thread Tools

Search this Thread

Old Jul 25, 2009 | 02:01 PM
  #26
HAILERS2's Avatar
Rotary Freak

Joined: Jul 2008
Posts: 1,660
Likes: 2
From: FORT WORTH TEXAS

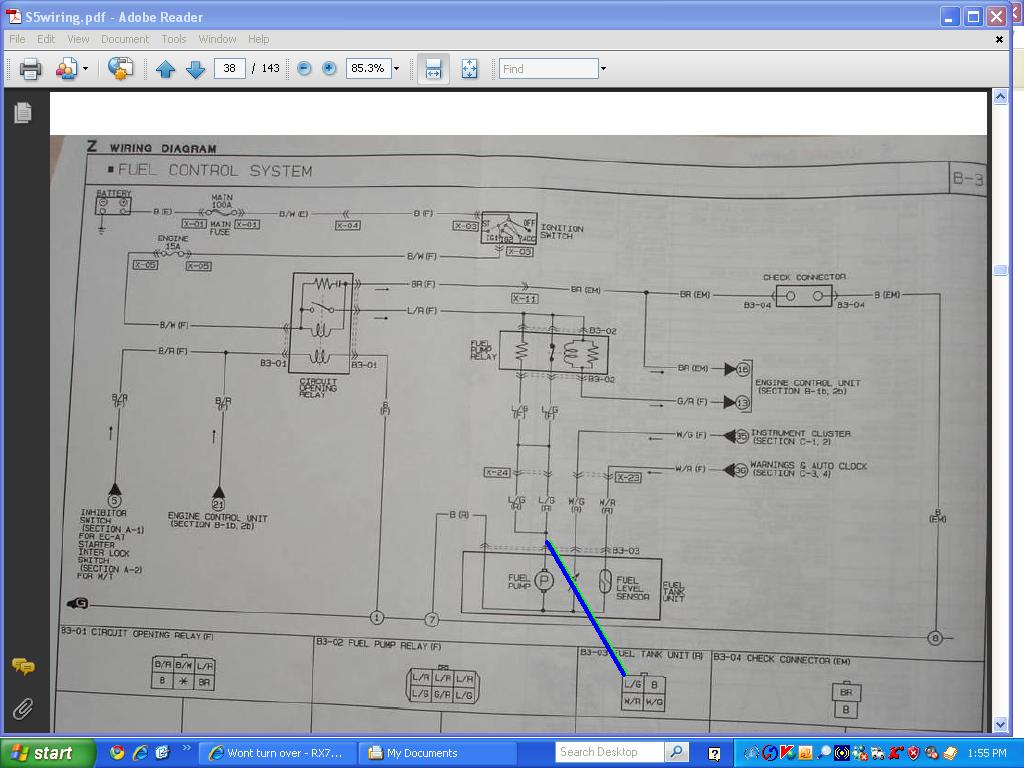

I forgot this is a series five car, not series four. It's a blue/green wire as shown in the attached jpg. All series four and five wiring diagrams are downloadable from the FAQ thered.

BLUE/GREEN only has pwr when the engine is running.........when the key is HELD to START.............when key is ON, engine OFF and the yellow two socket fuel pump check connector is jumpered.

BLUE/GREEN does not get pwr by just putting the key to ON and taking no other action.

Fuel pump is powered by the circuti opening relay via the ENGINE fuse.
Attached Thumbnails Wont turn over-bluegreen.jpg
