wiring up SAFC, ran into a weird problem.
01-03-04, 12:28 PM
#1
wiring up SAFC, ran into a weird problem.

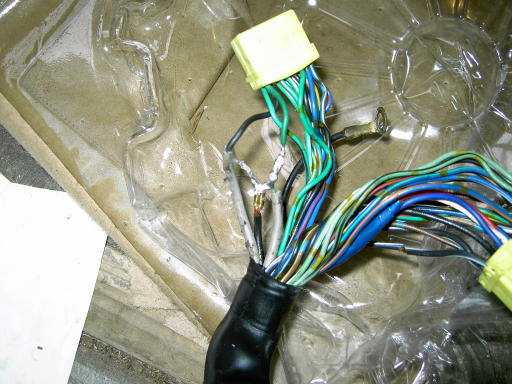

i am wiring my SAFC harness to my engine wiring harness and i noticed something a little weird.. the pressure sensor wire and the AFM wire have been spliced together... i'll attach a picture to explain it better.
how am i supposed to hook this up with these wires running together as one?
how am i supposed to hook this up with these wires running together as one?
01-03-04, 03:10 PM
#5
Senior Member
Join Date: Dec 2001
Location: Longmont, Co
Posts: 297
Likes: 0
Received 0 Likes
on
0 Posts
So your car currently runs fine with the afm and pressure signal spliced together?
Try pulling codes off the ecu, it should give you a better idea of whats going on. I'm going to guess theres a reason someone made that hack in the first place (can't imagine what it is though...).
Try pulling codes off the ecu, it should give you a better idea of whats going on. I'm going to guess theres a reason someone made that hack in the first place (can't imagine what it is though...).
01-03-04, 04:18 PM
#6
Ho's and Cadillac Doors
it looks to me like you can remove the splice and just re-route the AFM wires and pressure sensor wires back to their original place. Thats a weird looking splice though.
Trending Topics
01-03-04, 06:32 PM
#8
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Re: wiring up SAFC, ran into a weird problem.
Originally posted by jacobcartmill
...the pressure sensor wire and the AFM wire have been spliced together...
...the pressure sensor wire and the AFM wire have been spliced together...
Return all the wiring to normal but don't wire in the S-AFC just yet. Test drive the car to see if any problems pop up. This may have been a dodgy band-aid to mask another problem.
If it checks out OK, continue your install.
01-04-04, 04:30 PM
#9
Re: Re: wiring up SAFC, ran into a weird problem.
Originally posted by NZConvertible
I presume a previous owner did that? Some people should just never be allowed near cars...
Return all the wiring to normal but don't wire in the S-AFC just yet. Test drive the car to see if any problems pop up. This may have been a dodgy band-aid to mask another problem.
If it checks out OK, continue your install.
I presume a previous owner did that? Some people should just never be allowed near cars...
Return all the wiring to normal but don't wire in the S-AFC just yet. Test drive the car to see if any problems pop up. This may have been a dodgy band-aid to mask another problem.
If it checks out OK, continue your install.
i undid the work and redid it as it should be stock. i checked continuity to make sure it was going to be ok. it ended up being the o2 sensor and pressure being grounded. also, the pressure sensor wire pin on the ecu plug did not have continuity with the pressure sensor plug...
01-05-04, 09:07 PM
#10
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Ummm. Are you using SERIES FIVE schematics and plug pinouts. They are different than series four. Just FYI. As in pin 2B is the pressure sensor on a series four but not on a series five. That's what I refer to.
01-05-04, 09:52 PM
#11
Originally posted by HAILERS
Ummm. Are you using SERIES FIVE schematics and plug pinouts. They are different than series four. Just FYI. As in pin 2B is the pressure sensor on a series four but not on a series five. That's what I refer to.
Ummm. Are you using SERIES FIVE schematics and plug pinouts. They are different than series four. Just FYI. As in pin 2B is the pressure sensor on a series four but not on a series five. That's what I refer to.
yes i printed out the SERIES 5 fsm emissions control section
