Wiring Harness Help

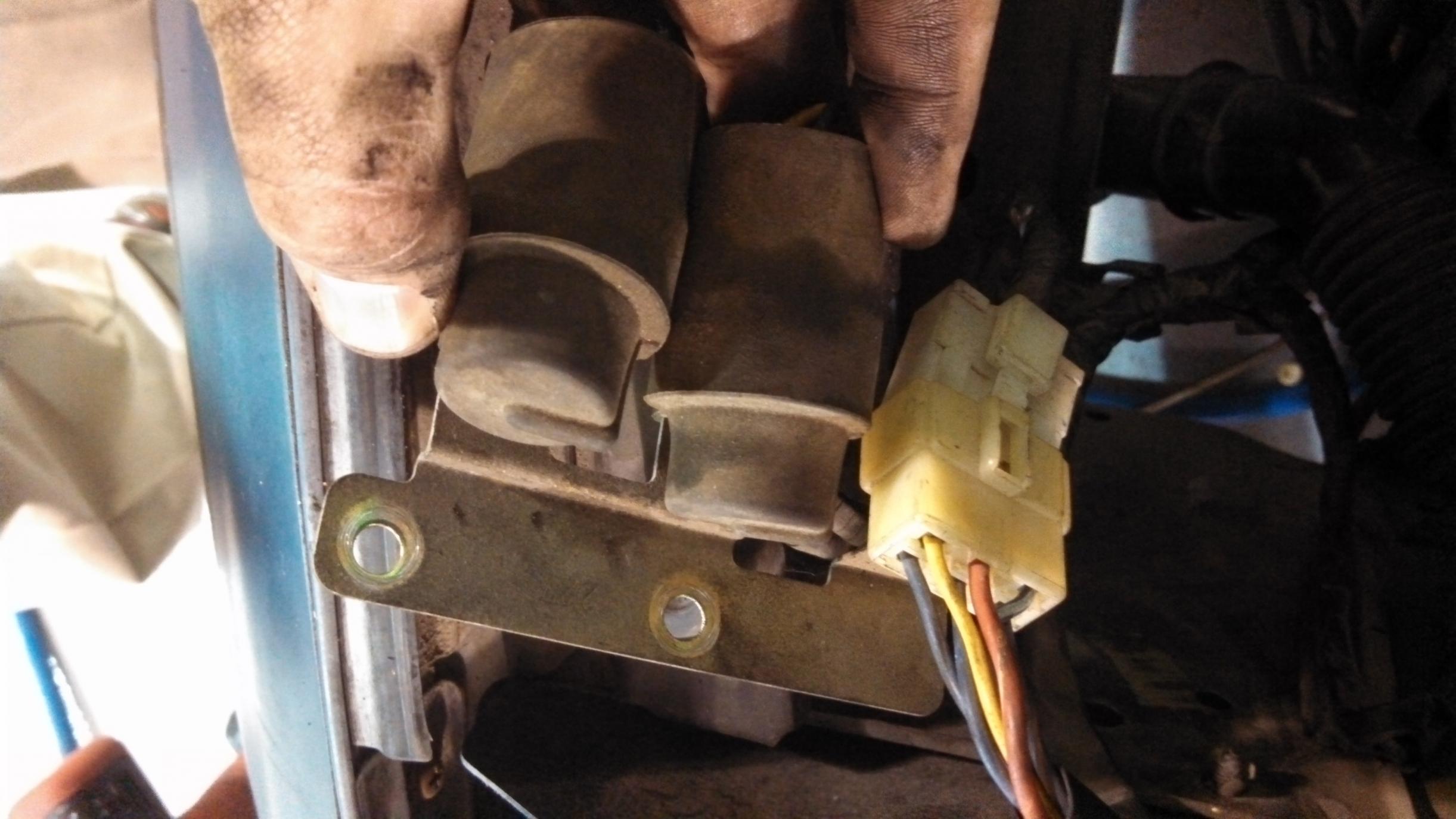

Hey, I have a question about a wiring harness I found on my car, I am trying to take everything out to clean up my engine bay a little bit, and found a harness that I thought at first was an aftermarket piece. It came out right next to the master cylinder, went to a relay on the firewall, then went down to the fuse box on the LF Strut tower. From the strut tower it went down to the front of the car, in front of the radiator to a 6 pin connector, then it also had 2 solenoids attached as well. That is the part where I got confused, because then it looked like a factory harness. I have attached 2 pics, so if anyone has any help on this, I would be glad to take it.
Attached Thumbnails Wiring Harness Help-wiring1.jpg   Wiring Harness Help-wiring2.jpg
Reply
Old Oct 23, 2013 | 10:46 PM
  #2
misterstyx69's Avatar
Retired Moderator, RIP
Tenured Member: 20 Years
iTrader: (142)

Joined: Sep 2005
Posts: 25,581
Likes: 136
From: Smiths Falls.(near Ottawa!.Mapquest IT!)

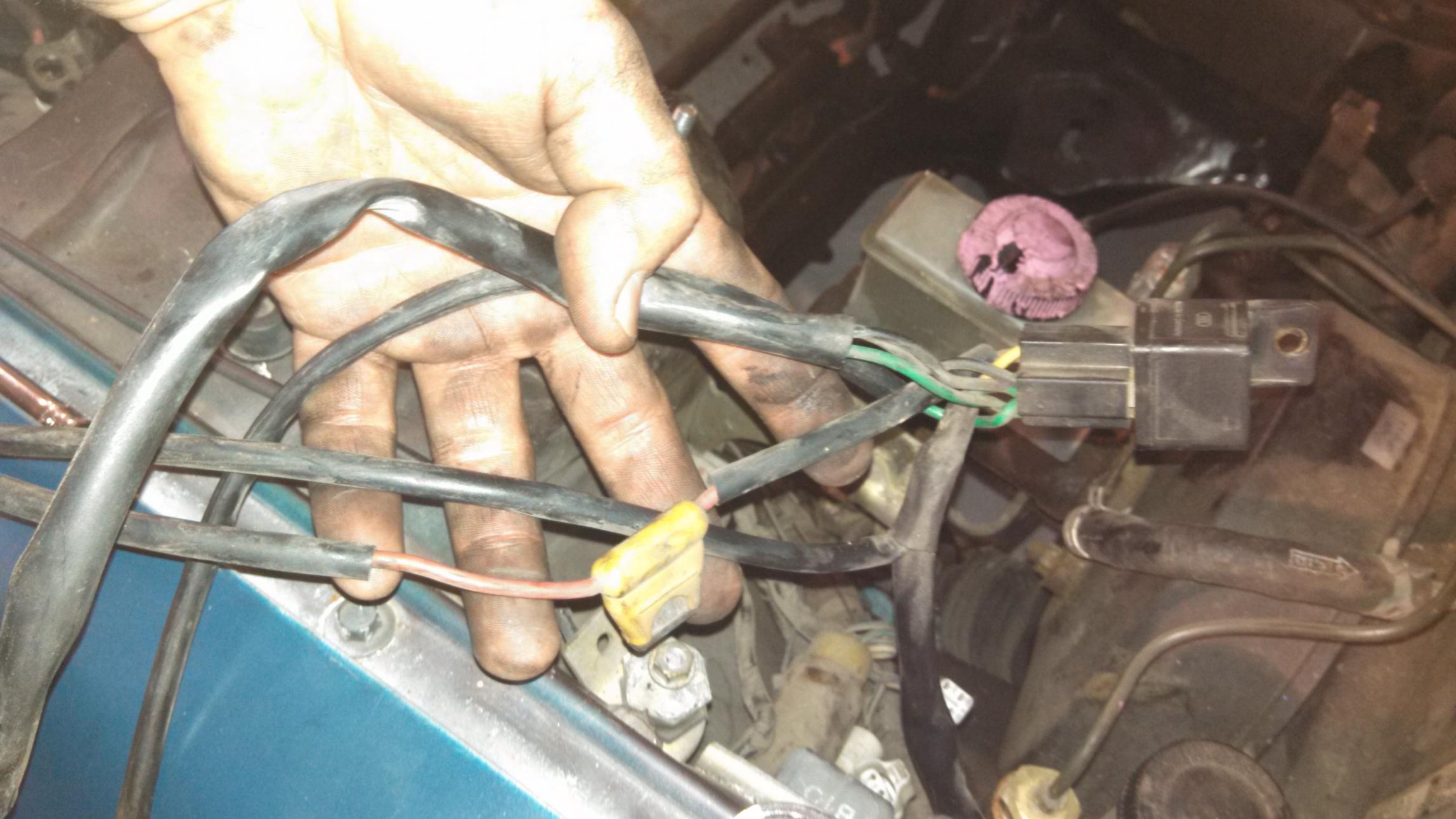

that part you have in your hand is not stock.(2nd pic)
