wiring
#1
Newbie
Thread Starter
Join Date: Oct 2006
Location: NC
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
wiring
I was wondering if any one has a diagram showing the pin locations and what they are going into the computer. I need the one for the 88 and for the 89-91. Any information would be extremely helpfull.
Thanks.
Thanks.
#3
Senior Member
iTrader: (4)
Join Date: May 2006
Location: Pittsburgh
Posts: 416
Likes: 0
Received 0 Likes
on
0 Posts
Theres A GREAT link for the S5 HOWEVER there is CRAP for the S4 im not an electrician so I dont know how to follow a schematic.... but the s4 one explains which pin is which color and what it goes to (ie injectors, etc)
go here for the S5 part
http://208.62.166.66:82/guest/shop_manuals/89-91FSM/
go here for the S5 part
http://208.62.166.66:82/guest/shop_manuals/89-91FSM/
#4
Full Member
Join Date: Oct 2006
Location: NAPLES, FLORIDA
Posts: 155
Likes: 0
Received 0 Likes
on
0 Posts
89-91 Wiring Diagrams
Originally Posted by marlboroman87
I was wondering if any one has a diagram showing the pin locations and what they are going into the computer. I need the one for the 88 and for the 89-91. Any information would be extremely helpfull.
Thanks.
Thanks.
#5
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by JDM_FC
Theres A GREAT link for the S5 HOWEVER there is CRAP for the S4...
http://www.teamfc3s.org/main/factory...ual/1986_1988/
#6
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

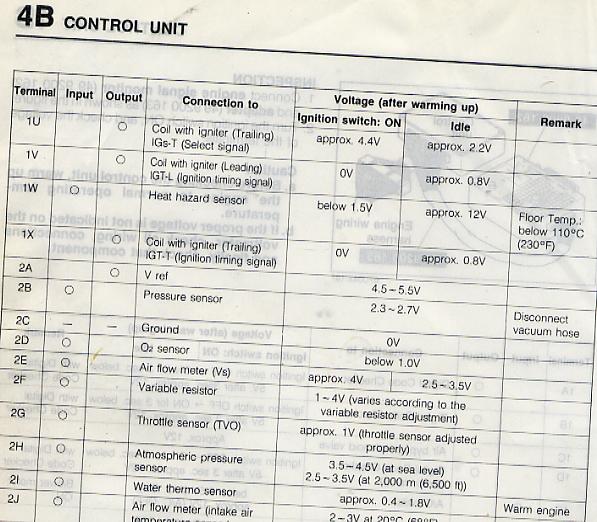

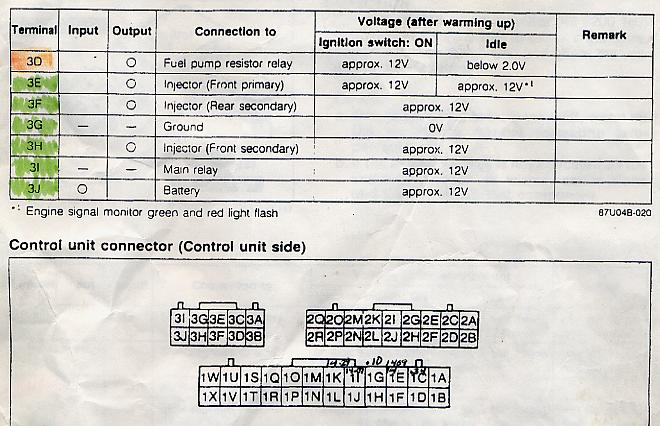

Attached is a partial of the pinout of the series four from the series four FSM. The series five is similar.
If the author of the thread is trying to install a series five ECU in a SERIES four, you need to consider more than just the pinout of the ECU's. There are other players on that EM harness. If your not doing that......then just ignore this piece of advice.
If the author of the thread is trying to install a series five ECU in a SERIES four, you need to consider more than just the pinout of the ECU's. There are other players on that EM harness. If your not doing that......then just ignore this piece of advice.
