Wire colors for S5 pressure sensor and AFM
coul someone with a series 5 TII or N/A check to see what colors the wires are for the pressure sensor and the AFM

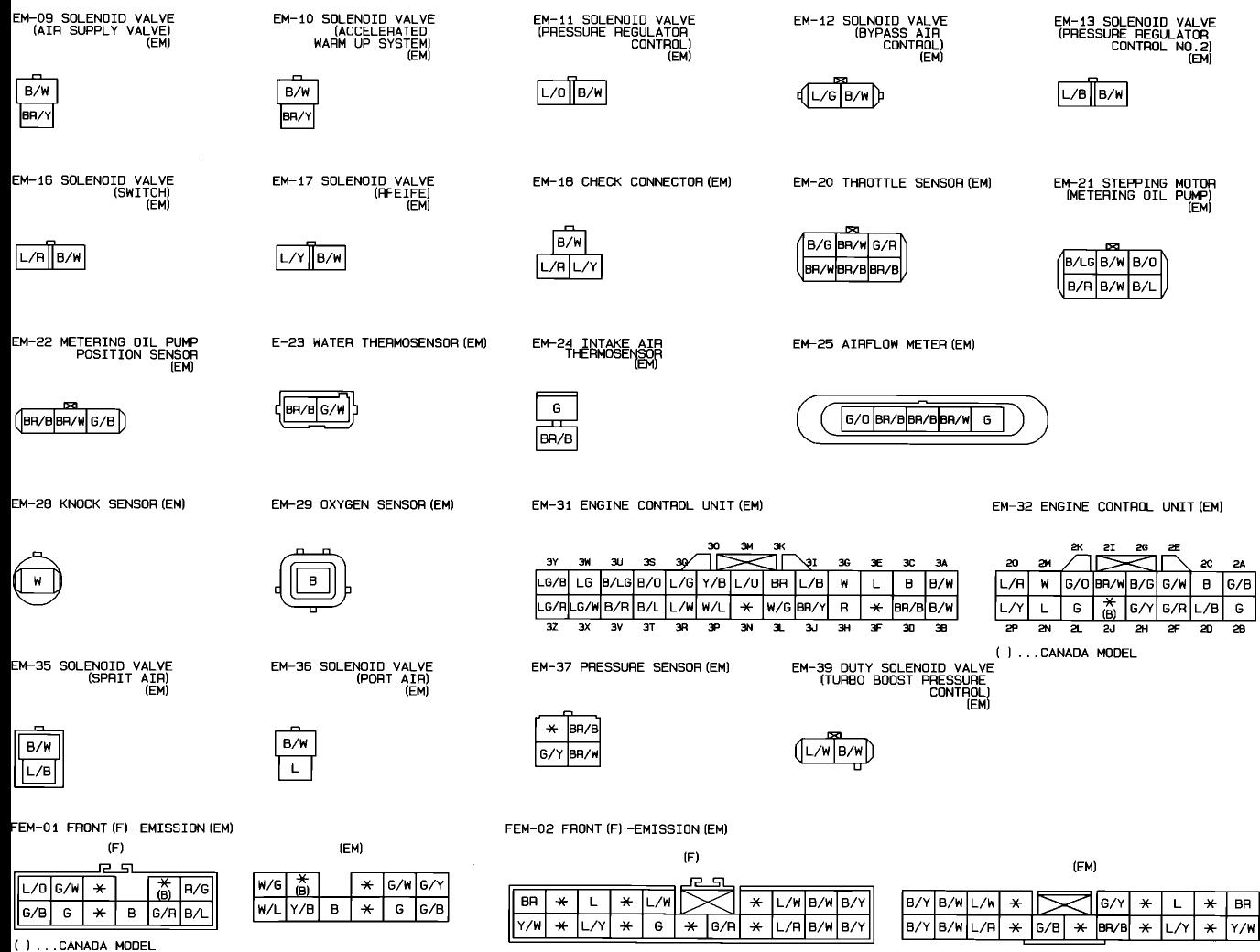

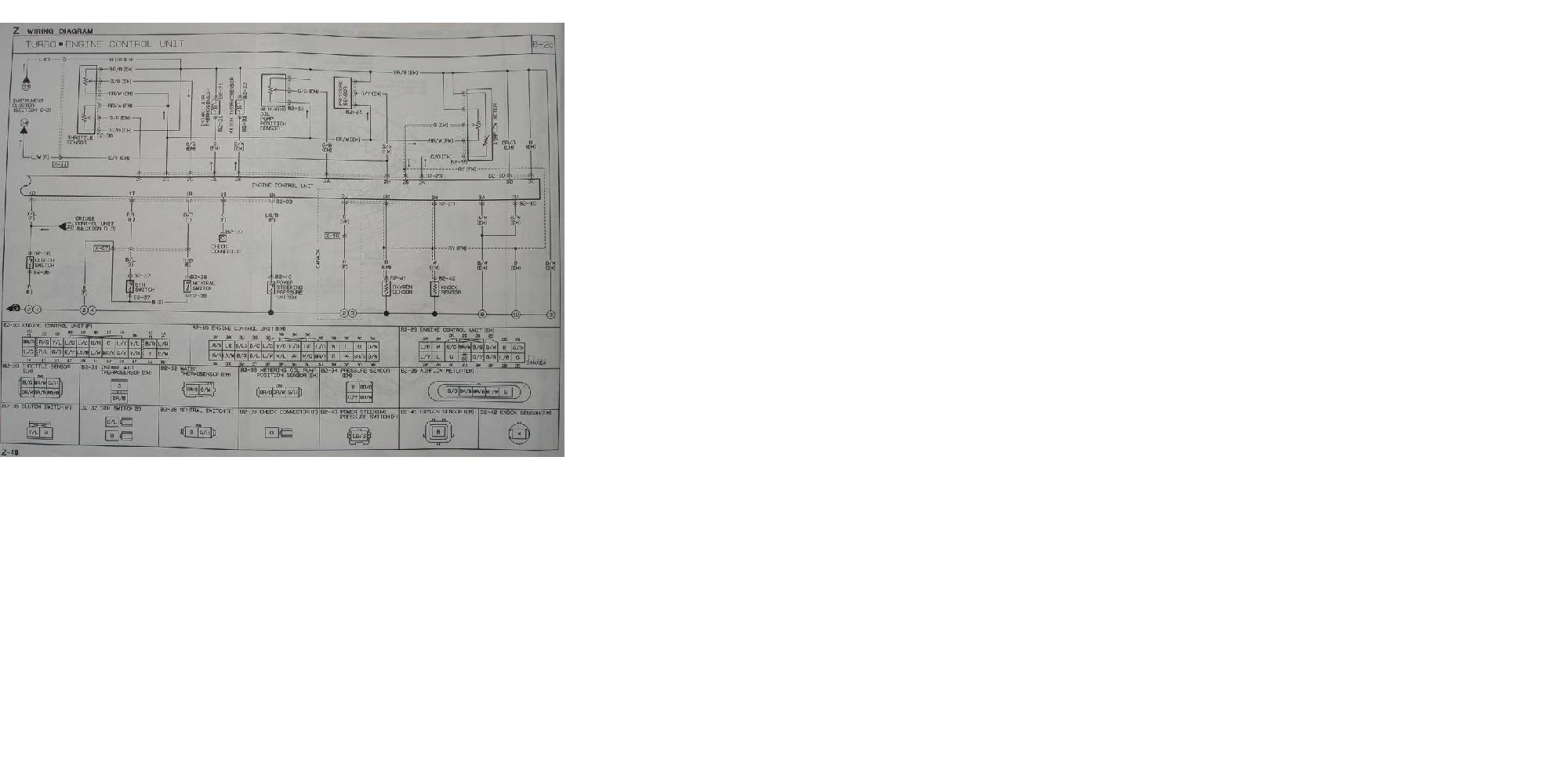

just match them up to my pictures lol the little bumps on the top are the clips
have it so the female end is facing you
just match them up to my pictures lol the little bumps on the top are the clips
have it so the female end is facing you
Last edited by FC3Sdrift; 02-18-08 at 08:41 AM.
02-18-08, 03:30 PM
#2
Autocrossed. I got CONED!
iTrader: (4)
Join Date: Jun 2006
Location: Lake Charles, LA
Posts: 629
Likes: 0
Received 0 Likes
on
0 Posts
N/A S5 AFM from left to right is:
A, Green with Grey shielding (double insulated wire)
B, Beige with White stripe
C, Beige with Black stripe, Blue dot
D, Beige with Black stripe, Blue dot
E, Green with Orange stripe
You'll have to guess with C and D since there is no color difference between the two (go Mazda!)
Can't help you with the pressure sensor though.
A, Green with Grey shielding (double insulated wire)
B, Beige with White stripe
C, Beige with Black stripe, Blue dot
D, Beige with Black stripe, Blue dot
E, Green with Orange stripe
You'll have to guess with C and D since there is no color difference between the two (go Mazda!)
Can't help you with the pressure sensor though.
02-18-08, 06:29 PM
#5
Autocrossed. I got CONED!
iTrader: (4)
Join Date: Jun 2006
Location: Lake Charles, LA
Posts: 629
Likes: 0
Received 0 Likes
on
0 Posts

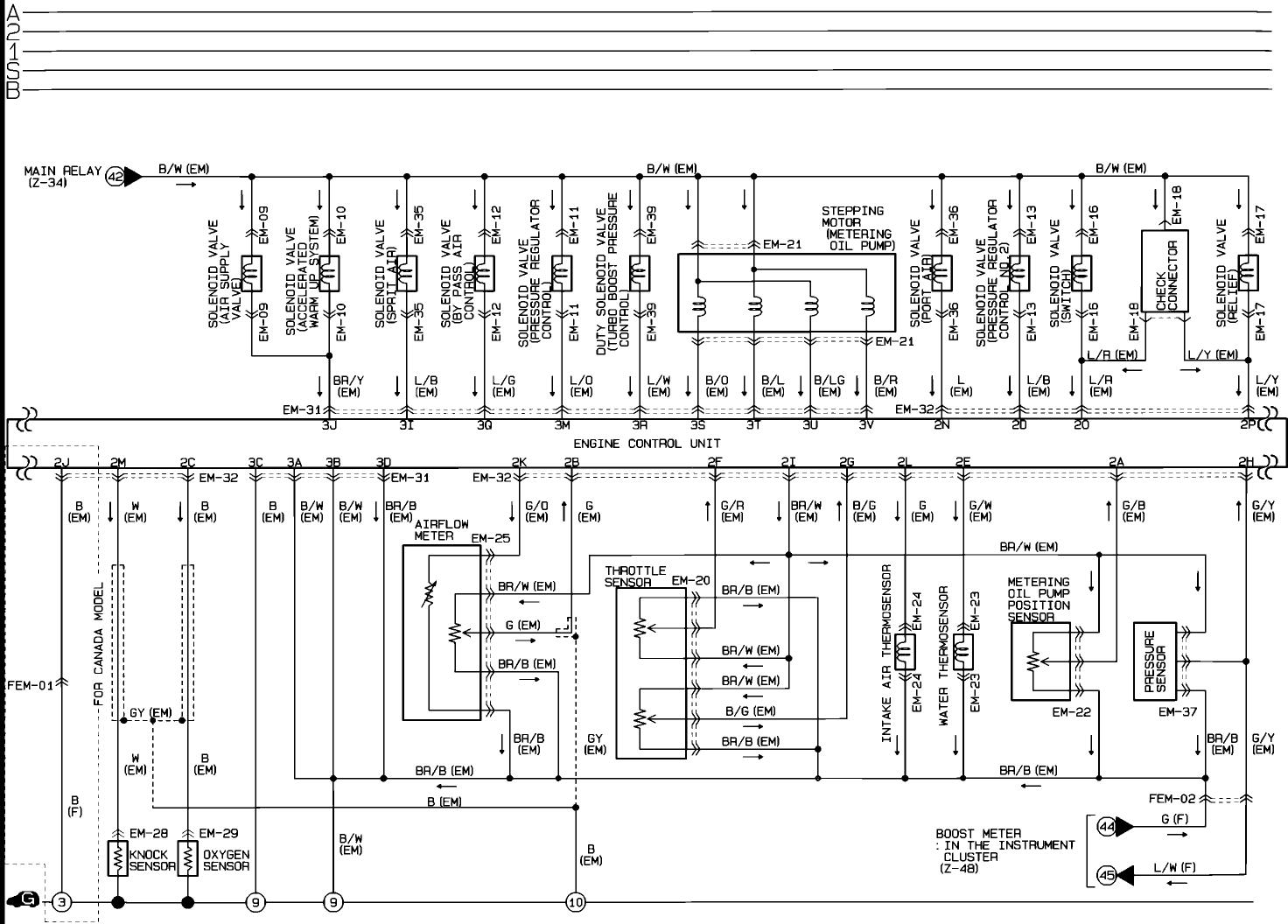

I'm confused HAILERS. In the third pic you posted, what perspective is the AFM viewed from? Is that staring at the AFM side, or the wire side? I might have thrown you off FC3Sdrift, if I did I'm sorry. I listed the colors as if you were staring from the passenger side fender looking down on top of the AFM
I hate wiring schematics, they always f*ck with my mind!
I hate wiring schematics, they always f*ck with my mind!
02-19-08, 03:32 PM
#7
Displacement Replacement
Thread Starter
iTrader: (5)
Join Date: Apr 2007
Location: St. Thomas
Posts: 1,502
Likes: 0
Received 0 Likes
on
0 Posts
lol i spent a while goin through the online FSM looking for those because i couldn't remember where i saw them before lol.... i have those saved on my computer
thanks for the help
thanks for the help
Last edited by FC3Sdrift; 02-19-08 at 03:49 PM.
