winter project! Making the nicest engine bay possible. post pics
#1
I have injector envy!
Thread Starter
winter project! Making the nicest engine bay possible. post pics
So now that I have a garage I want to clean out my engine bay. I want pics of your clean engine so I have a reference.
I already have haltech which cleaned things up a bit. But I want to fill in all the holes in the fenders and firewall that are not used. Can I use bondo for this, or do I need to weld and grind them shut. I am just not too sure on how much flex would be on these panels, I think bondo would work.
Also where do you guys relocate your coils and fuse panel to? I want all that stuff gone!
I am in the proces of relocatingthe battery as of now.
Lastley What kind of paint should I use. I dont have a paint gun. I laid a quick coat down last summer and it looked great! but even after clear coating it it still smudged up with grease, but I want to keep it white.
So should I go with a Laquer??
I want a glossy white finish resistant to oil and grease!
I already have haltech which cleaned things up a bit. But I want to fill in all the holes in the fenders and firewall that are not used. Can I use bondo for this, or do I need to weld and grind them shut. I am just not too sure on how much flex would be on these panels, I think bondo would work.
Also where do you guys relocate your coils and fuse panel to? I want all that stuff gone!
I am in the proces of relocatingthe battery as of now.
Lastley What kind of paint should I use. I dont have a paint gun. I laid a quick coat down last summer and it looked great! but even after clear coating it it still smudged up with grease, but I want to keep it white.
So should I go with a Laquer??
I want a glossy white finish resistant to oil and grease!
#4
Rotax?! WTF is a Rotax!?
Join Date: Sep 2004
Location: Toronto
Posts: 616
Likes: 0
Received 0 Likes
on
0 Posts
Heya!
I have kinda started this, my bigger project is the Haltech Install. I find that making it neat is also quite challenging without screwing up. I'll post some stuff up once i get home!
I have kinda started this, my bigger project is the Haltech Install. I find that making it neat is also quite challenging without screwing up. I'll post some stuff up once i get home!
#6
I have injector envy!
Thread Starter
Not bad looking at all.
I vouch to have the cleanest rx-7 engine bays come spring. And you can mark my word.
I plan to hide and relocate everything I can, including wiring harnesses. Run all my haltech straight back into the firewall.
my biggest issue is if I can bondo/gorrilla hair the holes in the fenders and wirewall or if I need to weld them shut.
I might go e-fan but the front of my motor is ugly! I havent rebuilt it so I havent needed to paint the motor.
The sucky part is going throught the existing CPU harness and removing everything that isnt plugged in.
like next to your primary coils...what is that green plug that is never plugged in?? it just sits there.
I vouch to have the cleanest rx-7 engine bays come spring. And you can mark my word.
I plan to hide and relocate everything I can, including wiring harnesses. Run all my haltech straight back into the firewall.
my biggest issue is if I can bondo/gorrilla hair the holes in the fenders and wirewall or if I need to weld them shut.
I might go e-fan but the front of my motor is ugly! I havent rebuilt it so I havent needed to paint the motor.
The sucky part is going throught the existing CPU harness and removing everything that isnt plugged in.
like next to your primary coils...what is that green plug that is never plugged in?? it just sits there.
Trending Topics
#9
Full Member
Join Date: Dec 2006
Location: jersey uk channel islands
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
I ran all my wires down the boxing under the wing (you can drill into it from behind the fuse box). A bit of a mishion but worth it. seperated all the gear box whiper moter and egi wires out and ran them down the other side most only went through the bulk head. but standard looms run them miles round the car. you can also relocate the fuel pump voltage regulater behind the dash and ditch miles of wire of the run its the unit bolted to the gray piece of metal behind the lights. I also ditched the fuse box just ran a new feed to a 4 way fuse box behind the lights for the front power (lts and pop up motors) and an egi fuse from the relocated battery in the back. just be methodical you have to cut wires just do one at a time. yau can also remove the wires from the plugs just be carefull i find a very small drill bit is great to release the plastic clips just lable everything carefully and draw the plugs with wire colours.
#10
coolant leak that kills
iTrader: (1)
Join Date: Sep 2004
Location: colorado
Posts: 411
Likes: 0
Received 0 Likes
on
0 Posts
looks nice, turbo80cid.
good project idea, i've wanted to do this a while myself. i've been a sucker for clean engine bays ever since, as a 11-year-old kid, i looked under the hood of my uncle's 68 chevelle ss and saw what an engine bay was meant to look like. even though the big-block 427 took up most of the space, i was amazed by the lack of miscellaneous crap obscuring it.
be sure to post pics when you're done, or along the way.
good project idea, i've wanted to do this a while myself. i've been a sucker for clean engine bays ever since, as a 11-year-old kid, i looked under the hood of my uncle's 68 chevelle ss and saw what an engine bay was meant to look like. even though the big-block 427 took up most of the space, i was amazed by the lack of miscellaneous crap obscuring it.
be sure to post pics when you're done, or along the way.
#11
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Originally Posted by yusoslo
So now that I have a garage I want to clean out my engine bay. I want pics of your clean engine so I have a reference.
I already have haltech which cleaned things up a bit. But I want to fill in all the holes in the fenders and firewall that are not used. Can I use bondo for this, or do I need to weld and grind them shut. I am just not too sure on how much flex would be on these panels, I think bondo would work.
Also where do you guys relocate your coils and fuse panel to? I want all that stuff gone!
Lastley What kind of paint should I use. I dont have a paint gun. I laid a quick coat down last summer and it looked great! but even after clear coating it it still smudged up with grease, but I want to keep it white.
So should I go with a Laquer??
#12
I have injector envy!
Thread Starter
so what kind of paint to go with the clear? And enamel base paint with a clear coat?
I am looking forward to being creative about the engine bay. I will put an offical thread up of before and during pics.
I am looking forward to being creative about the engine bay. I will put an offical thread up of before and during pics.
#14
I have injector envy!
Thread Starter

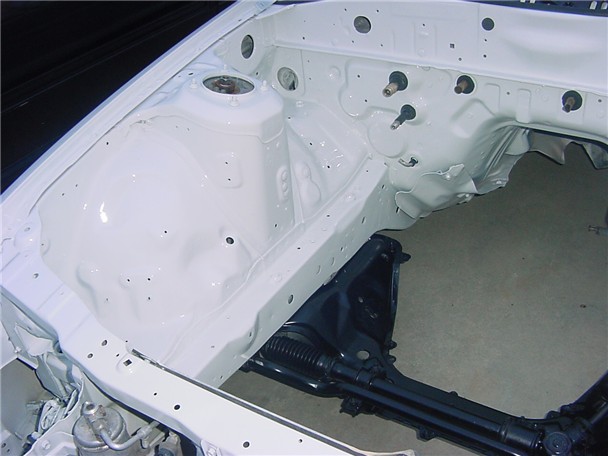

This is what I am starting with, I had just sprayed the engine bay quickly when dropping the new motor in. I am a bit unsure what to do with the headlight wiring loom that is on the drivers side frame rail. It needs to go. As do the holes in the shock towers.
but none the less my 3 hour engine bay job from last year. Sucks cause I used etching primer, 4 coats of paint, and 2 clear, and it was chipping from tools and such hitting it.
but none the less my 3 hour engine bay job from last year. Sucks cause I used etching primer, 4 coats of paint, and 2 clear, and it was chipping from tools and such hitting it.
#15
Originally Posted by rotaryracer11
is that the stock top mount in that pic......
I removed the sealing "lip" that use to go all the way around the intercooler.
#18
I have injector envy!
Thread Starter
wow very nice. Veru similar to mine right now but I want those holes gone! and move the other ISH.
BTW Is that Tupperware in your engine bay!?!?
and what kinda paint did you use?
BTW Is that Tupperware in your engine bay!?!?
and what kinda paint did you use?
#23
Rotary Freak
iTrader: (5)
Join Date: Jun 2002
Location: Va
Posts: 1,549
Likes: 0
Received 0 Likes
on
0 Posts

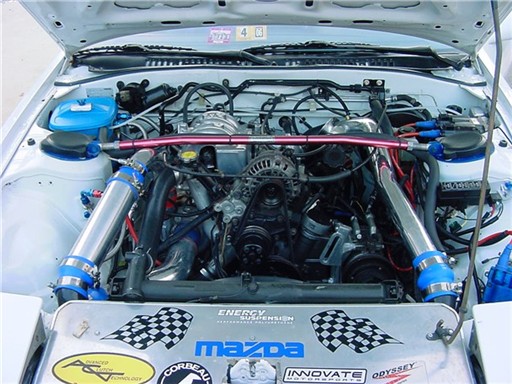

I wasn't even going to respond to the tupperware comment but since it has drawn a little more interest, It is a Moroso cool can, a lot of drag racers use them to cool fuel before its ignited.
I actually use it to cool fuel after the fuel rails, Then it goes into a pre intercooler before the front mount. The fuel is the cooling media. much like a water to air. The fuel is then returned to the tank via the return line. I also do water meth injection and monitor intake temps on both sides of the I/C.
Thanks for the interest, maybe Ill try potato salad next
The paint is the same as the outside GM white
Johny
I actually use it to cool fuel after the fuel rails, Then it goes into a pre intercooler before the front mount. The fuel is the cooling media. much like a water to air. The fuel is then returned to the tank via the return line. I also do water meth injection and monitor intake temps on both sides of the I/C.
Thanks for the interest, maybe Ill try potato salad next
The paint is the same as the outside GM white
Johny
#25
I have injector envy!
Thread Starter
Im gonna try and post pics later tonite. I relocated the battery, split open the wiring loom and rerouted all my wires under the frame.
The headlight relays are now fed from where the windsheild washer resevior was and on the drivers side there is a hole as well. The fuse box is located under the brake booster.
So all that is left is my haltech harness and my coils.
I do need everyones help though...should I try and respray my engine bay white, which is a pain to keep clean. Or paint it satin black rino liner???
And help would be appreciated.
The headlight relays are now fed from where the windsheild washer resevior was and on the drivers side there is a hole as well. The fuse box is located under the brake booster.
So all that is left is my haltech harness and my coils.
I do need everyones help though...should I try and respray my engine bay white, which is a pain to keep clean. Or paint it satin black rino liner???
And help would be appreciated.
