Kalle

I dont have my original washer tank anymore so I need to use an universal one. I´ve searched the forum and looked in the manual but dont get any wiser.

So, does anyone know which plug it is that I would use to connect my new tank to?

pfsantos

iTrader: (1)

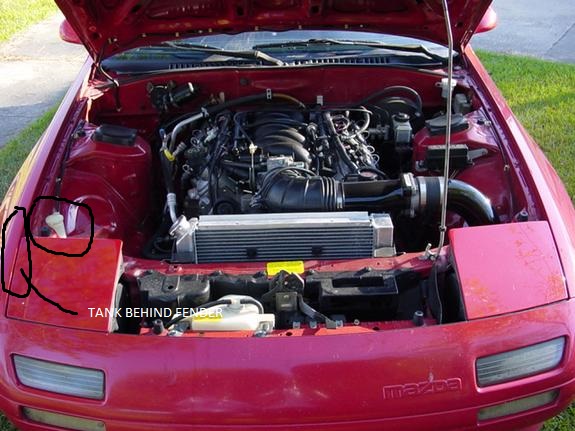

Near driver side headlight. Filler neck would have been underhood, near battery. Most of the reservoir (including plug) would be accessible in front of wheel, behind wheelwell liner.

edit: some cars had it on opposite side. If I find a decent pic, will post.

Kalle

I have alot of unused plugs on left hand side. Im suspecting its the black one with 4 pins? Cant really get a good signal from it though...

pfsantos

iTrader: (1)

See my sig below, or search for the wiring diagram online. Use it to check plug type, pin qty. and wiring colors.

http://www.rotaryheads.com/PDF/2nd_g...ng_diagram.pdf

50-44 (section 50, page 44)

satch

iTrader: (1)

The plug should be square and contain 4 wires which are Blue, Blue/Orange, Black and a Green wire.

Kalle

Washer motor works now thanks to you guys! I used the Blue and Blue/Orange wire to make it work.

Thanks again.

satch

iTrader: (1)

The other two wires tell the idiot lights when the tank is low on fluid. Thus there are probably two plugs for the tank.

Kalle

Thats what I suspected, wont use it for my aftermarket tank though.

Thanks
