i seen a greddy or hks one while ago it was a t4 divided cast iron manifold . looking for a divided one if anyone remebers who made one . thanks



turblown makes them now......... tubular one are good to check out gleaseman....price is on pt



Only divided T4 cast manifold I have seen advertised as fitting FC is the Turblown one.


Greddy FC TD06 kit used a undivided cast manifold with a T4 to T3 adapter.

HKS FC T04 cast manifold was also undivided.

-----------
HKS FD cast manifold is the divided one. I don't know what turbos you can fit on the FC using it.
------------

I will look through old HyperRevs when I get home, but I never remember seeing a cast divided T4 manifold for the FC.



the cast one is the HKS FD



I just sold my HKS cast FC undivided manifold



I am probably wrong, but if prices were comparable, I would go with a quality tubular manifold, than a cast one.



Yeah, I looked through my HyperRevs and the only manifolds advertised were all stainless tubular.

They did have pictures of the complete turbo kits for FCs but they were using the Greddy cast undivided manifold, except the HKS kit which used the HKS cast undivided manifold.

So, only the Turblown cast divided T4 manifold for the FC and it is for IWG only.



i was looking into buying a cast one stronger more solid dont have to worry about warping turbo to manifold gasket blowing out . i seen a divided one before for sale im pissed it was hks or greddy i remeber . but it might have been a fd one then



https://scontent-iad3-1.xx.fbcdn.net...27&oe=57A6BDDD

https://scontent-iad3-1.xx.fbcdn.net...26567748_o.jpg

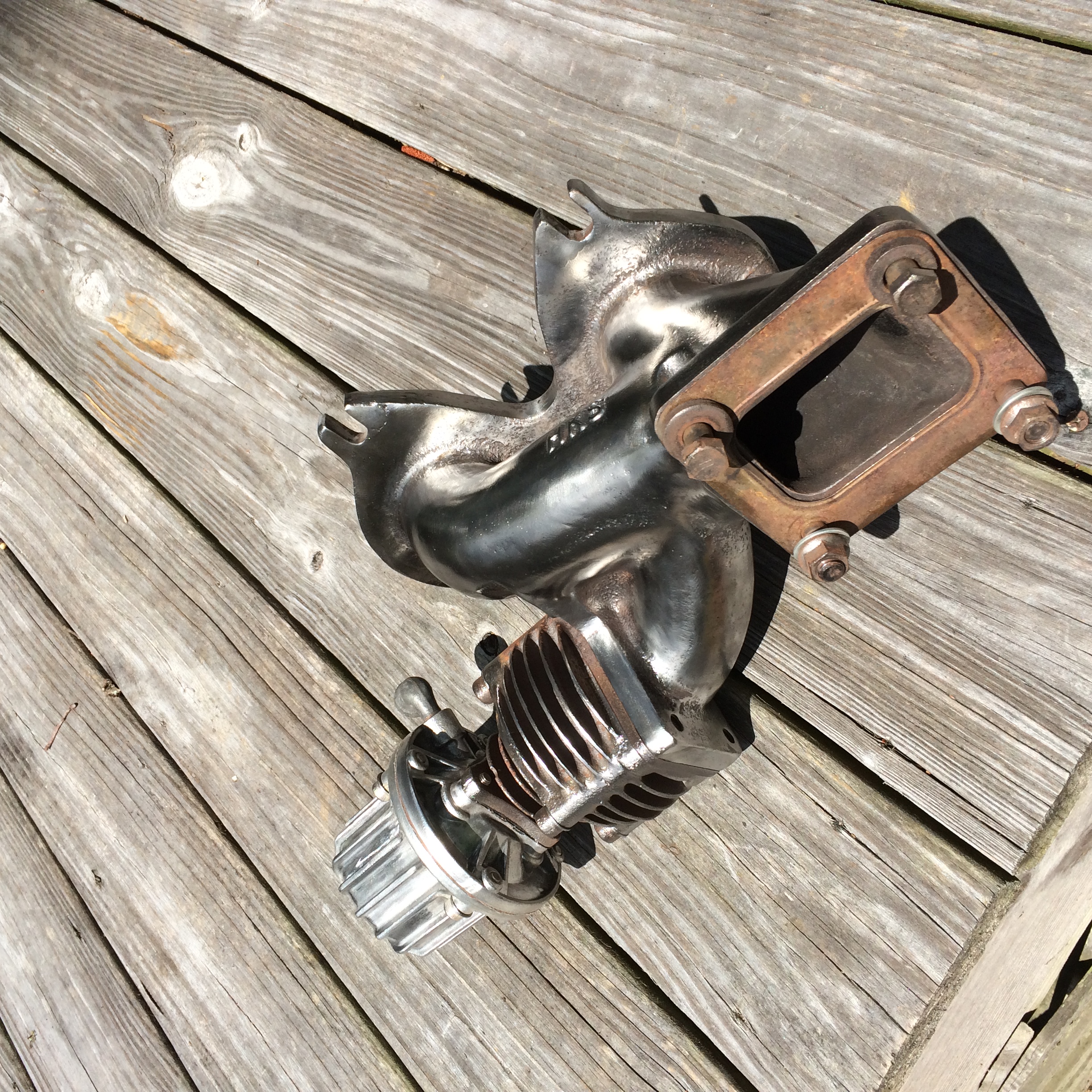

I have that, I assume its for an FD. Divided cast iron, no ewg flange. Definitely does not clear an HX40 on a 13BT engine. It doesnt have a brand casting on it so I have no idea where it came from, any ideas?



That's an HKS FC manifold, part of the old T04E turbo kit. It used an IWG like the stock S5 turbo.



Garrett Japan makes turbos for HKS, so HKS had a To4E, which is nothing out of the ordinary, except it had an internal wastegate turbine housing, which is unique.
