Where the heck does this thing connect to?

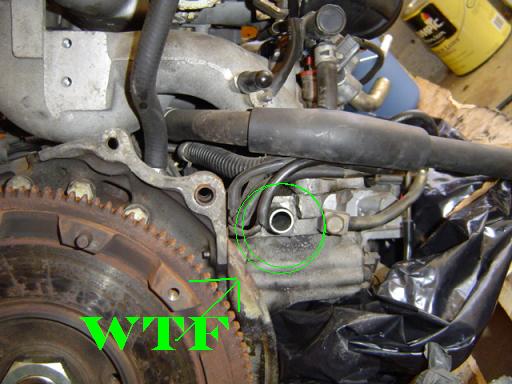

Got up under the car to tighten the exaust bolts down and noticed i forgot to connect a hose, but where does it go?
Attached Thumbnails Where the heck does this thing connect to?-wtf-001.jpg
Type_zero is offline
Reply Like
Old 01-31-06, 05:08 PM
  #2
The Brap is Back

iTrader: (3)

FirstRotaryExp's Avatar

Join Date: Sep 2005
Location: Dandridge, Tennessee
Posts: 2,777
Likes: 0
Received 1 Like on 1 Post
That is for the split air pipe. It connects to yoru exhaust, that is assuming you have a S4 na there.
FirstRotaryExp is offline
Reply Like
Old 01-31-06, 05:11 PM
  #3
Who are you?


jgrts20's Avatar

Join Date: Mar 2003
Location: CenCal
Posts: 2,235
Likes: 0
Received 0 Likes on 0 Posts
no he has a s5 91
jgrts20 is offline
Reply Like
Old 01-31-06, 05:18 PM
  #4
The Brap is Back

iTrader: (3)

FirstRotaryExp's Avatar

Join Date: Sep 2005
Location: Dandridge, Tennessee
Posts: 2,777
Likes: 0
Received 1 Like on 1 Post
Ahhh then unfortunately I am at a loss, id run out to my S5....but its abotu 10 miles away so I cant check visually, sorry man.
FirstRotaryExp is offline
Reply Like
Old 01-31-06, 07:24 PM
  #5
I just wanna hump my car.

iTrader: (3)

NeCr0mStR's Avatar

Join Date: May 2002
Location: Lansing area Michigan
Posts: 841
Likes: 0
Received 1 Like on 1 Post
its the air pipe for the exhaust but is unneeded since the air pipe does not control the 5/6 port opening on the s5. You can put a hose on it and block it off with a screw or you can attach it to the exhaust manifold.
NeCr0mStR is offline
Reply Like
Old 01-31-06, 08:08 PM
  #6
Now With 10th AE Fun!

iTrader: (1)

1SWEET7's Avatar

Join Date: Jun 2005
Location: CA
Posts: 1,869
Likes: 0
Received 0 Likes on 0 Posts
Well actually if he is still running emissions, the split air pipe is used to help heat up the catalytic converter to help emissions. So it is needed, unless he is running no cat.
1SWEET7 is offline
