Where is the fuel pump fuse???
03-20-10, 11:11 AM
#4
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
ENGINE fuse in the interior powers the fuel pump.
You turn the key to ON..........power passes thru the key to the interior fuse box row of fuses called IG1..............IG1 has a fuse called ENGINE fuse...........ENGINE fuse now powers the Circuit Opening Relay...............pump does not run at this point............HOLD the key to START ..........that pulls in the Circuit Opening Relay...................power from the ENGINE fuse now passes thru the contacts of the relay and power NOW goes to the fuel pump.
There are variations of how power passes to the fuel pump from the Circuit Opening Relay, such as.................instead of holding the key to START...........jumper the fuel pump check connector in the engine bay.........that causes a ground to be put on one of the two coils of the Circuit Opening Relay.........relay closes and now powers the pump from the ENGINE fuse.
Or key to ON and hold the vane of the afm aft at least 1/8" and that act accomplishes just what the above paragarph does.
Pump does NOT run by just putting the key to ON. Talking series four cars, not series five cars.

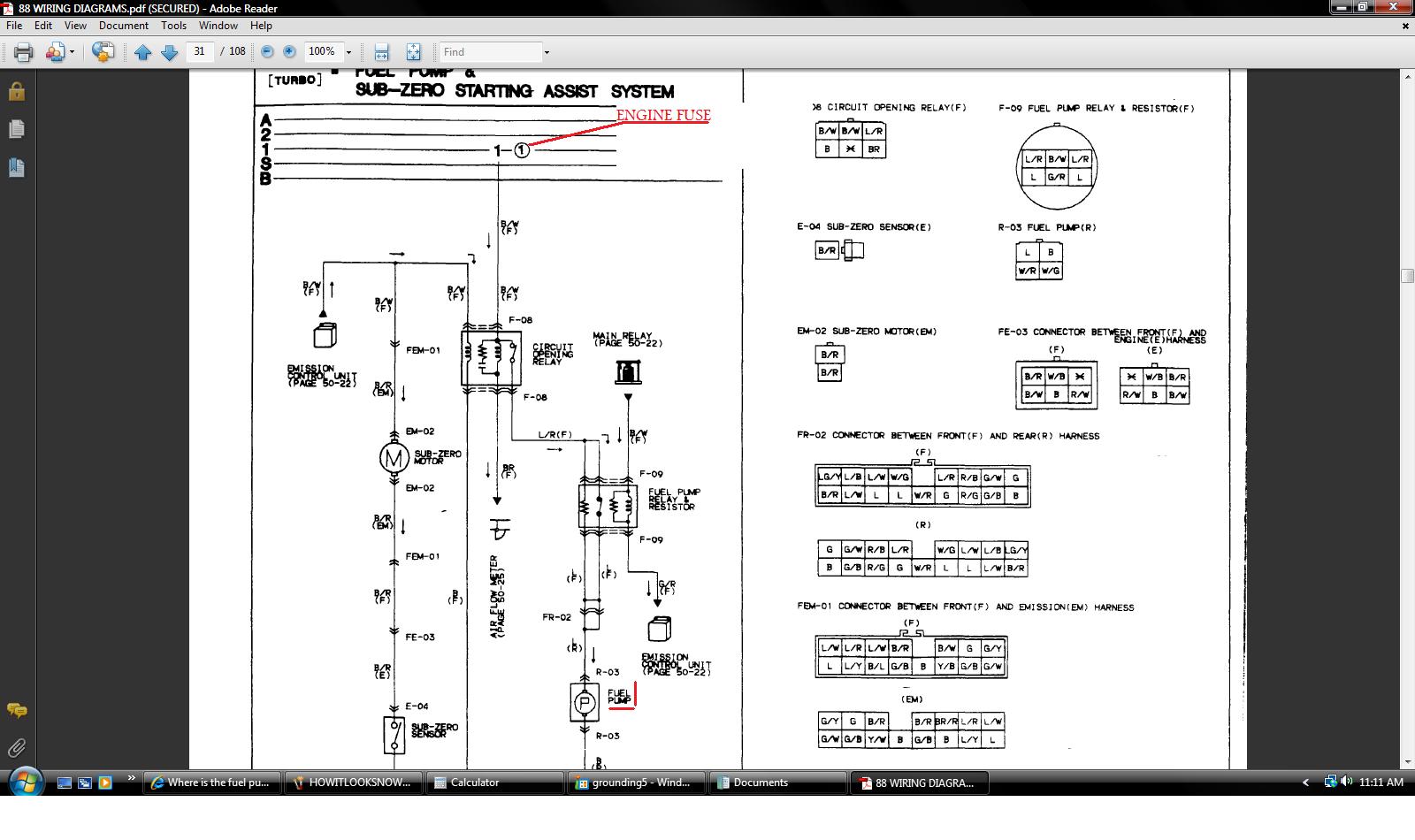

JPG attached is for series four turbo car. Non turbo is similar except there is no fuel pump resistor/relay on non turbo cars.
You turn the key to ON..........power passes thru the key to the interior fuse box row of fuses called IG1..............IG1 has a fuse called ENGINE fuse...........ENGINE fuse now powers the Circuit Opening Relay...............pump does not run at this point............HOLD the key to START ..........that pulls in the Circuit Opening Relay...................power from the ENGINE fuse now passes thru the contacts of the relay and power NOW goes to the fuel pump.
There are variations of how power passes to the fuel pump from the Circuit Opening Relay, such as.................instead of holding the key to START...........jumper the fuel pump check connector in the engine bay.........that causes a ground to be put on one of the two coils of the Circuit Opening Relay.........relay closes and now powers the pump from the ENGINE fuse.
Or key to ON and hold the vane of the afm aft at least 1/8" and that act accomplishes just what the above paragarph does.
Pump does NOT run by just putting the key to ON. Talking series four cars, not series five cars.
JPG attached is for series four turbo car. Non turbo is similar except there is no fuel pump resistor/relay on non turbo cars.
03-21-10, 07:37 PM
#6
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
Just pulling the EGI fuse,will NOT get your car to Start..per say.
You Pull the fuse so the power to the injectors is Disconnected and the engine gets NO fuel.
Then By cranking the engine over,it will expel any excess fuel.When you Put the Fuse back IN,that will give the Injectors their Power BACK,so it can Give the engine Fuel,like normal.and allow the car to start "fresh".
You Pull the fuse so the power to the injectors is Disconnected and the engine gets NO fuel.
Then By cranking the engine over,it will expel any excess fuel.When you Put the Fuse back IN,that will give the Injectors their Power BACK,so it can Give the engine Fuel,like normal.and allow the car to start "fresh".
03-22-10, 01:04 AM
#7
Just pulling the EGI fuse,will NOT get your car to Start..per say.
You Pull the fuse so the power to the injectors is Disconnected and the engine gets NO fuel.
Then By cranking the engine over,it will expel any excess fuel.When you Put the Fuse back IN,that will give the Injectors their Power BACK,so it can Give the engine Fuel,like normal.and allow the car to start "fresh".
You Pull the fuse so the power to the injectors is Disconnected and the engine gets NO fuel.
Then By cranking the engine over,it will expel any excess fuel.When you Put the Fuse back IN,that will give the Injectors their Power BACK,so it can Give the engine Fuel,like normal.and allow the car to start "fresh".
Trending Topics
03-22-10, 11:57 AM
#8
Make your life easier by installing a fuel pump cutoff switch under the dash. That way you can quickly disable the fuel pump to get the car started, then switch it on to keep running. The added benefit is it makes a good theft prevention device.
As an aside, once I started premixing, I no longer have cold or hot startup issues...for now at least. YMMV.
As an aside, once I started premixing, I no longer have cold or hot startup issues...for now at least. YMMV.
