where do these plugs go?
#1
Rotary Freak
Thread Starter
Join Date: Apr 2002
Location: Boulder, CO
Posts: 1,739
Likes: 0
Received 0 Likes
on
0 Posts
where do these plugs go?
I'm about to finally out my car back together, but there are just a few plugs that I can't figure out. I'll post pics and I hope you guys can tell me where they need to go.

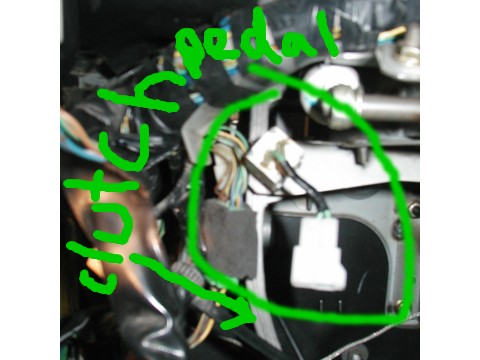

Plug 1:
Plug 1:
#2
Rotary Freak
Thread Starter
Join Date: Apr 2002
Location: Boulder, CO
Posts: 1,739
Likes: 0
Received 0 Likes
on
0 Posts
plug 1 seems to be a little sensor thing for the clutch pedal. it senses when the pedal is let out.

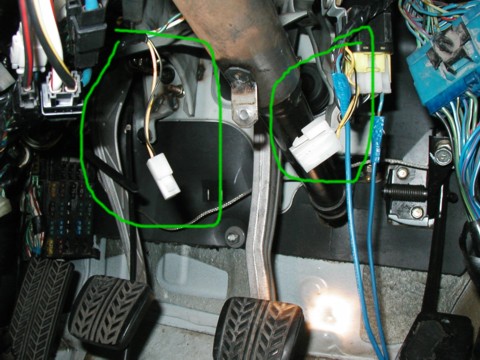

plug 2
the two outlined plugs seem as though they should go together(one black, and yellow wire on each one), but the plugs are different. do I need to connect these?
plug 2
the two outlined plugs seem as though they should go together(one black, and yellow wire on each one), but the plugs are different. do I need to connect these?
#5
Former Moderator. RIP Icemark.
Clutch interlock switch, so the car only starts when the clutch is in.
Looks like cruise control off sensors for the pedals.

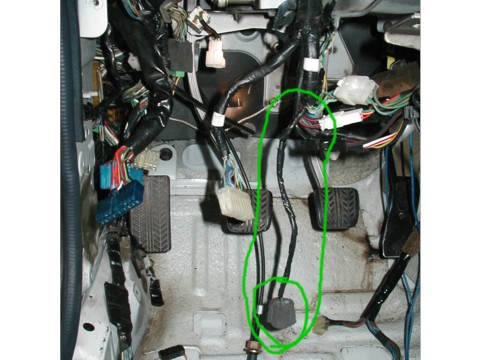

Hard to say... is there a better pic of the wires or plug itself?
Trending Topics
#8
Former Moderator. RIP Icemark.
Originally posted by GTUDRIFTER
can't you leave the clutch interlock switch unplugged so you can start the car without holding the clutch pedal in? Like the Dsm owners do to prevent crankwalk?
can't you leave the clutch interlock switch unplugged so you can start the car without holding the clutch pedal in? Like the Dsm owners do to prevent crankwalk?
#9
Rotary Freak
Thread Starter
Join Date: Apr 2002
Location: Boulder, CO
Posts: 1,739
Likes: 0
Received 0 Likes
on
0 Posts
Clutch interlock switch, so the car only starts when the clutch is in.
Looks like cruise control off sensors for the pedals.
Hard to say... is there a better pic of the wires or plug itself?
if it helps, there are two wires, one is blue/red, the other is white/green.
thanks for helping. I thought noone ever would.
hey, have you fixed your boost problem yet?
quote:
--------------------------------------------------------------------------------
Originally posted by GTUDRIFTER
can't you leave the clutch interlock switch unplugged so you can start the car without holding the clutch pedal in? Like the Dsm owners do to prevent crankwalk?
--------------------------------------------------------------------------------
Not without jumpering the car side.
--------------------------------------------------------------------------------
Originally posted by GTUDRIFTER
can't you leave the clutch interlock switch unplugged so you can start the car without holding the clutch pedal in? Like the Dsm owners do to prevent crankwalk?
--------------------------------------------------------------------------------
Not without jumpering the car side.
#10
Back from teh deadly!
Join Date: Feb 2001
Location: Louisville KY 40299
Posts: 1,163
Likes: 0
Received 0 Likes
on
0 Posts
The starter interlock switch is the one you all are talking about. Its mounted on the firewall and the clutch pedal depresses a plunger on it when you push on the pedal.
The clutch switch is mounted on a little bracket opposite the interlock switch. Its plunger is depressed when youre off the pedal.
The switch that prevents your car from starting is the starter interlock switch. By unplugging it from the harness and jumpering it, you can start your car without having to push the clutch in.
The clutch switch is mounted on a little bracket opposite the interlock switch. Its plunger is depressed when youre off the pedal.
The switch that prevents your car from starting is the starter interlock switch. By unplugging it from the harness and jumpering it, you can start your car without having to push the clutch in.
