revs302

I've searched here and google and haven't found one as all the dyno sheets have mods....I really want to know what the powerband is shapped like and the RPM's it peaks at.

koukifc3s

iTrader: (3)

n/a or turbo?

Ked63madison

im new how do i start a thread

azdk

at the top of the thread page there is a button that says NEW THREAD

sleeepyhead

http://rx7.com/techarticles_rx8power.html here is a stock NA s5 vs a stock rx8

revs302

Thanks!

SCCAITS

iTrader: (3)

and here is a stock 1990 vert

graph-
http://www.ludwigmotorsports.com/sto..._dynostock.jpg

text -
http://www.ludwigmotorsports.com/rx7.../stock_net.jpg

sharingan 19

iTrader: (16)

What's wrong w/ the stock ecu on that first graph? max power @ 5750 rpm, wtf?

classicauto

iTrader: (3)

There's a button on the opposite side of the screen as the new thread button. Its called "search". Thats the one you're after.

farberio

iTrader: (7)

Thats max torque.

sharingan 19

iTrader: (16)

....lol well then, I guess that solves it

NZConvertible

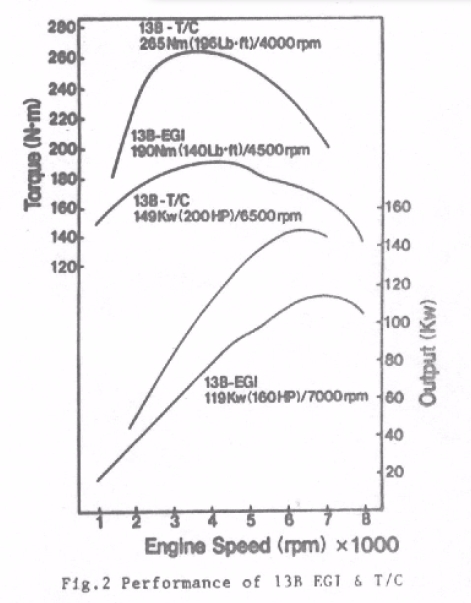

This is the dyno graph from the 1990 SAE paper by Mazda on the S5. This is what the engines did new.

Notice you can see where the VDI valve opens on the NA.

arghx

iTrader: (3)

^ do you have that SAE paper anywhere that we could download it?

NZConvertible

The site I got it from no longer has it. I can e-mail it to someone if they want to host it. It's a 12.2MB PDF. It covers all the improvements made to the S5 engines like VDI, independent twin-scroll turbo, electronic boost control, EFI improvements, and electronic OMP.
