What's wrong with this picture?
#1
What's wrong with this picture?

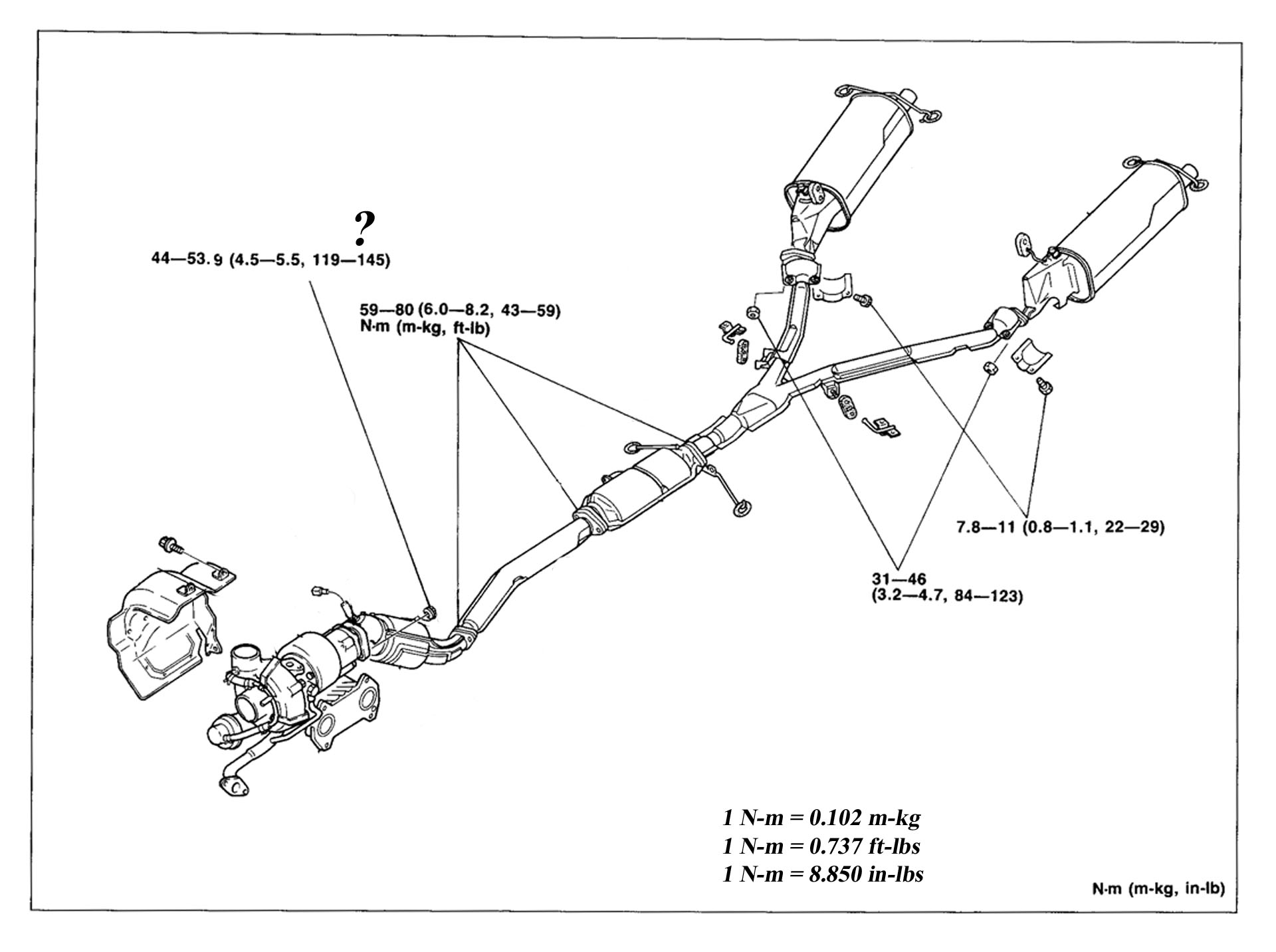

See the attached simplified image of the exhaust system from the shop manual. [I have added the conversion legend.] The torque recommendations do not make sense to me. The only one that seems correct is the "59-80 N-m (6.0-8.2 m-kg, 43-59 ft-lb). The other specs are supposedly in inch-pounds, but if you do the conversions, they are all incorrect. Especially disturbing is the torque for the bolts/nuts connecting the down pipe to the turbo. According to a conversion of 44-53.9 N-m, the torque in ft-lbs should be 33-40, or the inch-pound equivalent: 12 x 33=396 or 12 x 40=480.
What am I missing? I definetely do no want to over tighten any of those bolts/nuts. Comments appreciated!
What am I missing? I definetely do no want to over tighten any of those bolts/nuts. Comments appreciated!
#4
i dont really think its that big of a deal without being any experienced mechanic, just thighten so the screw aint loose ( abit more of course : )or the paint/metal/texture chips off from too much force...
Last edited by OutCold; 08-25-08 at 11:50 AM.
#5
Former Moderator. RIP Icemark.
Tighten the one in question to 45 ft lbs. Think it is just a typo, but almost all the exhaust 14mm nuts can be torqued to between 45 and 60 ft lbs with no issues.
#7
Banned. I got OWNED!!!
iTrader: (2)
Join Date: Mar 2006
Location: Seattle
Posts: 575
Likes: 0
Received 0 Likes
on
0 Posts
it's exhaust, your car will not blow up in the event you over/under tightened a bolt or two. tighten it until the two parts make contact and just tighten until you REALLY have to get on the wrench to go any further.
