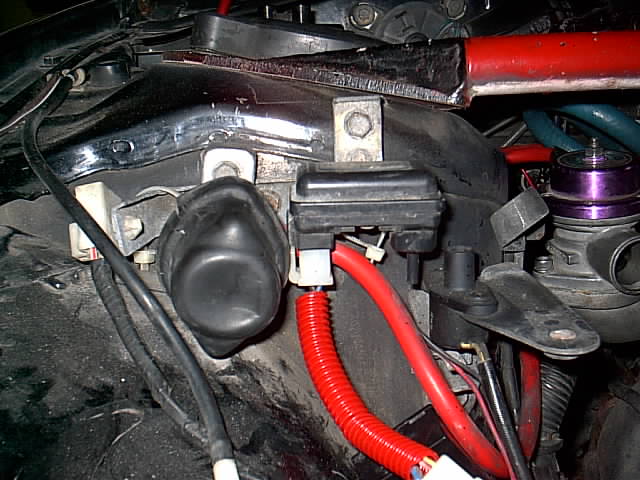

just noticed this. the pressure sensor doesn't have a vac line but the "round thing" sorry for lack of tech terms has one going to it????



.



The "round thing" is the nipple for the vac hose. Proper fuel scheduling will suffer if the ECU doesn't receive good boost signals...



so I shouldn't have a vac line on the pressure sensor??? Also I've been searching and noticed that if it's not connected the secondaries won't come on?? oh yeah also I was talking about the square (pressure sensor) doesn't have the vac line but the round thing next to the pressure sensor has one (the thing with the rubber boot on it.



With the pressure sensor not piped to the manifold:

No spark retard in boost.
No extra fuel in boost.
No fuel cut on over boost.
No dash boost gauge reading.
No closed loop fuel economy when cruising (ECU looks for ~-10in Hg).

If that line doesn’t have the orifice pill in it, boost spikes will give unnecessary fuel cuts.
To add a short boost spike sense delay, move the pill up the line, away from the sensor.



hummmmmmmm very interesting!!!!! so this would be why I'm getting fuel cut?????



Great way to pop your motor. Hook a line to it to the nipple on the passenger side just below where the BAC is IIRC.



great! I'll t it into the vac line

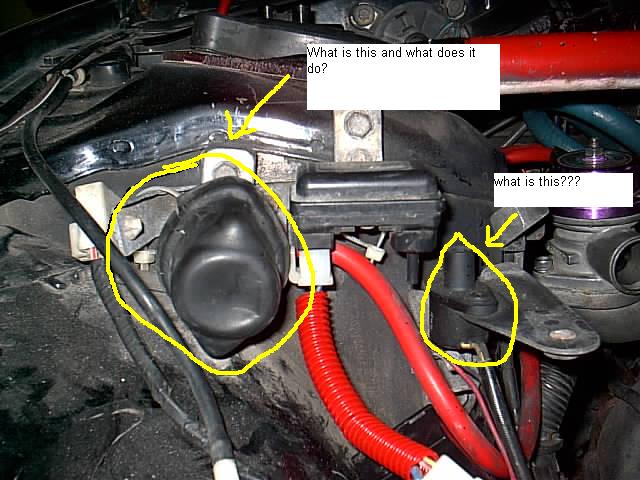

Also if you guys don't mind telling me what these are and do that would be great! Thanks!



ok just searched down deap and found the thing on the very right is to change the air / fuel mixture. still don't know what the other thing is.



Isn't that something for the auto tranny cars? On the left...



The one on the right is your variable resistor, idle lean/rich adjuster (only matters during idle). Left I don't know.

Also on the vac line that goes from the pressure sensor to the manifold, IIRC shouldn't there be a pellet or something inside the line? I thought I heard something about how that it's like that stock. A resistor pellet or something, can't exactly remember. Maybe someone else can say if this is right or not.



Most guys call it a restrictor "pill", Bill alluded to it earlier, 'bout 5 posts back...



Damn I'm perceptive today.


Another question I had about this is, if you're going to replace the stock vac line that goes from the pressure sensor to the manifold, where do you get the pill to put in the new line?



Is this "pill" necessary? Mine doesn't have one. Could someone explain its purpose?

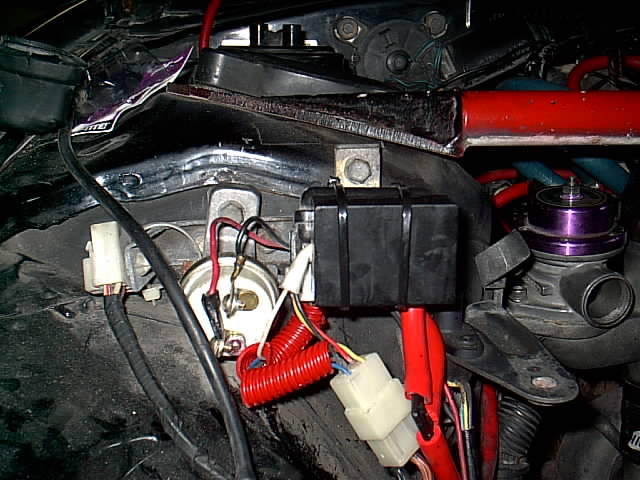

so none of you guys know what that round thing does???? It's kinda strange the guy that owned it last has a neg and a positive wire fun from it all the way to the vac rack???



Vac switch for the auto cars, I think...

I've ran without the pill before, for troubleshooting a problem, car seemed little changed, but the boost sensor outputs were jumping all over the place on the meter, and you want them a little smoother than that for the ECU's sanity, that explains why it's there...

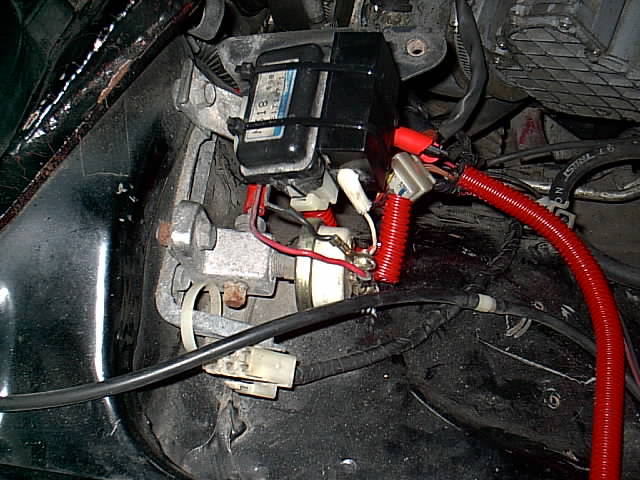

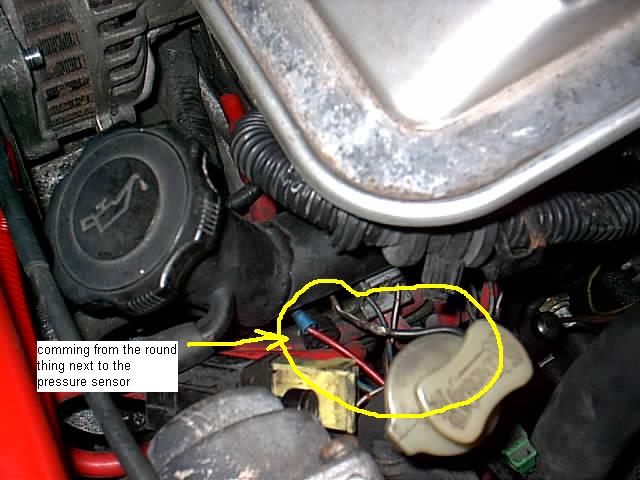

strange???? I wonder what whould happen if I took it off??? I'm going to snap a picture of the black and red wire going to the vac rack in a sec.



anyone have a clue?



Does that red wire have a yellow stripe?

You can dump that AAS wiring too, on the strut tower- it's some beefy stuff, and weighs about 2 lbs, including the left side tower's AAS wiring also.

Damn, your car looks corroded to hell. Did you get it off of the bottom of the ocean?



Maybe it was Sponge Bob Square Pants` old car. I think he bought a new RX-8 with the underwater nav. package.



man thats not cool Right now before looks I'm worying about performance after witch looks will come later. What aas are you talking about??? I don't think I ever had aas. What would be the best way to remove everything with the aas?? THanks.



You are right make it run good first, looks later, nothing "looks" worse than being stranded and broke down on the side of the road.

John



I'm just messing with ya, man, no offense...

All of the factory wiring harnesses came with options wiring installed...The AAS wiring is that beefy-looking white with different colored stripes bundle there with the 6-pin plug going nowhere, on both strut towers. They meet the main harness bundle down there near the rails, that's where I cut mine off. None of the wires are powered (Unless you happen to have the AAS control unit for some reason), so you don't have to worry about arcing & sparking...Removing them just cleans up the area a little, it's not like you're removing 100 lbs off the car



lol thanks guys! Yall had me out side cleaning my engine bay for the past hour Anyways I just took out my power steering, subzero start assist and am wondering if I should also take out the charcole canister??? I don't have any smog so I'm guessing I can just cap it off right??? And thanks wayne I'm going to cut that connector off as well, on both sides.
