What are these bushing and where can I get them?
#1
Full Member
Thread Starter
Join Date: Jul 2006
Location: Iowa
Posts: 70
Likes: 0
Received 0 Likes
on
0 Posts
What are these bushing and where can I get them?
I finished tearing down my rear control arms and found these bushings to be very worn. I went to several parts stores in town and they could not find them. What are they and where can I get replacements.
Thanks; )
Thanks; )
#5
Here's the Mazda P/Ns for an '89. They're likely the same for whatever year yours is.
The ones at the top of your picture are:
FB01-26-230 BALL,PILLOW-RR LWR ARM - 2ea needed
FB01-26-250 RUBBER SEAL,RR LWR ARM - 4ea needed
The ones at the bottom of your picture are:
FB01-26-220 BUSH,LWR RR RUBBER - 2ea needed

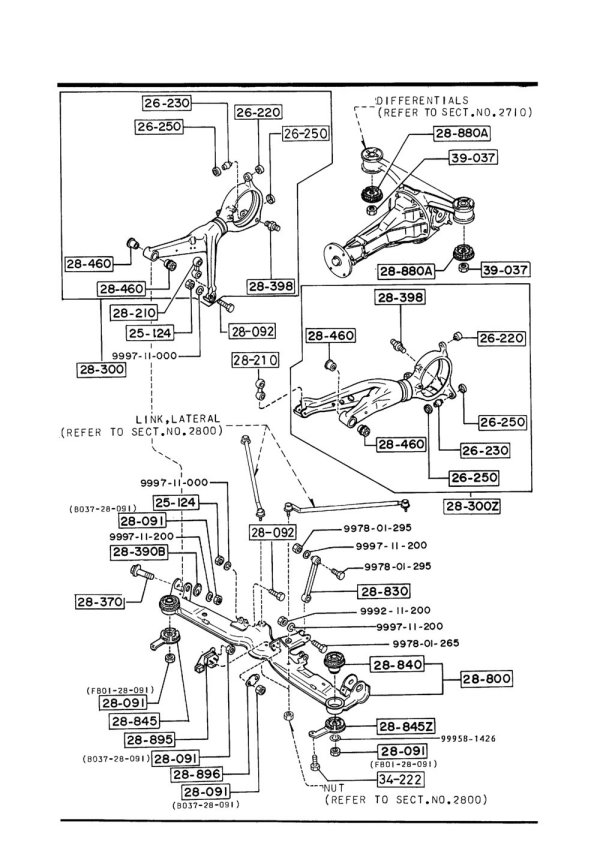

They should be orderable at your local dealer. I've also attached the parts fiche page that shows them.
Cheers,
-chris
The ones at the top of your picture are:
FB01-26-230 BALL,PILLOW-RR LWR ARM - 2ea needed
FB01-26-250 RUBBER SEAL,RR LWR ARM - 4ea needed
The ones at the bottom of your picture are:
FB01-26-220 BUSH,LWR RR RUBBER - 2ea needed
They should be orderable at your local dealer. I've also attached the parts fiche page that shows them.
Cheers,
-chris
Trending Topics
#8
Full Member
Thread Starter
Join Date: Jul 2006
Location: Iowa
Posts: 70
Likes: 0
Received 0 Likes
on
0 Posts
One step ahead of you, just finished grinding and sand blasting one of them. They will then get a coat of Rustolium and then rubberized undercoating and then join my differential, sub frame, and half shafts.
#10
Senior Member
I've been looking for them also, but have only found them at the dealer. However, I did find a dealor that sells over the internet for about 25% less than my local dealer. They sell the pillow ball for 58.10, and the bushing for $20.57.
Go to: http://www.mazda-parts-dealer.com/ click on Mazda parts, go to step 2 and copy in the part number.
Go to: http://www.mazda-parts-dealer.com/ click on Mazda parts, go to step 2 and copy in the part number.
