What model of 1990 RX-7 is this?

Thread Tools

Search this Thread

Old 06-14-06, 11:25 PM
  #1
Junior Member

Thread Starter

bcnu_702's Avatar

Join Date: Jun 2006
Location: Las Vegas, NV
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
What model of 1990 RX-7 is this?

Can anyone tell with the pic of the cluster what model this 1990 RX-7 is? Just curious, because most of the 2nd GEN rx-7's show redline at 7k, not 8k.

Thanks,
Chris

Old 06-14-06, 11:27 PM
  #2
I "lost" my emissions....


DREYKO's Avatar

Join Date: Apr 2005
Location: lillington, nc
Posts: 1,764
Likes: 0
Received 3 Likes on 3 Posts
umm all s5's 89 and up go to 95 exept for t2's
Old 06-14-06, 11:34 PM
  #3
Junior Member

Thread Starter

bcnu_702's Avatar

Join Date: Jun 2006
Location: Las Vegas, NV
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
umm all s5's 89 and up go to 95 exept for t2's
My bad, but they go up to 95? This would be my first attempt with a mazda, let alone a rotary motor.
Old 06-14-06, 11:37 PM
  #4
I think I'm addicted


Cybaster's Avatar

Join Date: Feb 2004
Location: Castro Valley
Posts: 749
Likes: 0
Received 2 Likes on 1 Post
95? the FC3S stopped production at 1992.... in FAQ

but that is a S5 89-91 NA

the 7k redline is generally a Turbo II model

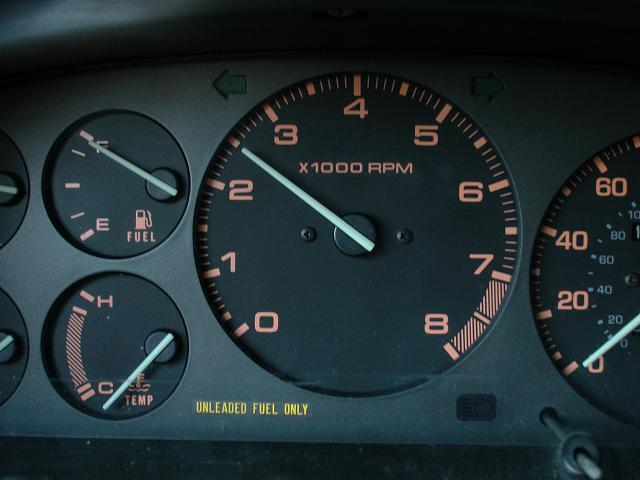

look at my TII cluster in my pic
Attached Thumbnails What model of 1990 RX-7 is this?-dscn9011a.jpg

Last edited by Cybaster; 06-14-06 at 11:41 PM.
Old 06-14-06, 11:38 PM
  #5
Full Member


RXxtraquick7's Avatar

Join Date: Jun 2006
Location: N. California
Posts: 71
Likes: 0
Received 0 Likes on 0 Posts
Sir, I'm new here, but I think you are incorrect. I just purchased an 89, which according to you would be an S-5, and my gauge reads 9k. Just making an observation that you don't know!
Old 06-14-06, 11:40 PM
  #6
Junior Member

Thread Starter

bcnu_702's Avatar

Join Date: Jun 2006
Location: Las Vegas, NV
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
Alright cool I understand now. Yeah I checked out the FAQ site and found the codes and everything, thanks again!
Old 06-14-06, 11:44 PM
  #7
Senior Member

iTrader: (1)

Bunchies's Avatar

Join Date: Mar 2006
Location: CA
Posts: 660
Likes: 0
Received 0 Likes on 0 Posts
that's definitely an NA. The turbo would have a boost meter in place of the voltmeter and the redline would be 7000rpm.
Old 06-14-06, 11:45 PM
  #8
King of the Loop


BklynRX7's Avatar

Join Date: Apr 2004
Location: brooklyn, New York
Posts: 2,620
Likes: 0
Received 1 Like on 1 Post
Arrow

OK here it is:

series 5 n/a with manual transmitions had a 9k tach with a 8k redline

turbos and automatic transmitions had a 8k tach with a 7k redline.

Thats it.
Old 06-14-06, 11:46 PM
  #9
Former Moderator. RIP Icemark.

Icemark's Avatar

Join Date: Apr 2001
Location: Rohnert Park CA
Posts: 25,896
Likes: 0
Received 19 Likes on 19 Posts
Non Turbo, manual tranny 89-91 models have a 8000 RPM redline

All others have a 7000 RPM redline
Old 06-15-06, 12:53 AM
  #10
Full Member


RXxtraquick7's Avatar

Join Date: Jun 2006
Location: N. California
Posts: 71
Likes: 0
Received 0 Likes on 0 Posts
Who is right then? My car says 9000, and the red starts at 8000! mine is stick shift with no booster gauge, and no turbo, I think>
Old 06-15-06, 01:00 AM
  #11
**


Sgt. Pepper's Avatar

Join Date: Mar 2005
Location: Bay Area, CA
Posts: 767
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by RXxtraquick7
Who is right then? My car says 9000, and the red starts at 8000! mine is stick shift with no booster gauge, and no turbo, I think>
Like the posts above were saying, S5 N/A manual tranny have a 9K tach with an 8K redline. Your car is an 89 making it an S5, and since it has no turbo it's an N/A.
Old 06-15-06, 01:03 AM
  #12
I think I'm addicted


Cybaster's Avatar

Join Date: Feb 2004
Location: Castro Valley
Posts: 749
Likes: 0
Received 2 Likes on 1 Post
most people talk about the redline

no one really cares how high the tach goes... cuz in general u can use that rage.....

so turbo 7000 redline, S5 NA 8000 redline...
Old 06-15-06, 02:22 AM
  #13
Junior Member

Thread Starter

bcnu_702's Avatar

Join Date: Jun 2006
Location: Las Vegas, NV
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
Alright well thanks guys. Next project is getting a 13b-t now...see ya on the forum
