wthdidusay82

iTrader: (15)

I found these two burnt wire connections earlier today. They arent hooked up.









Are they important? What do they goto? Are they related?

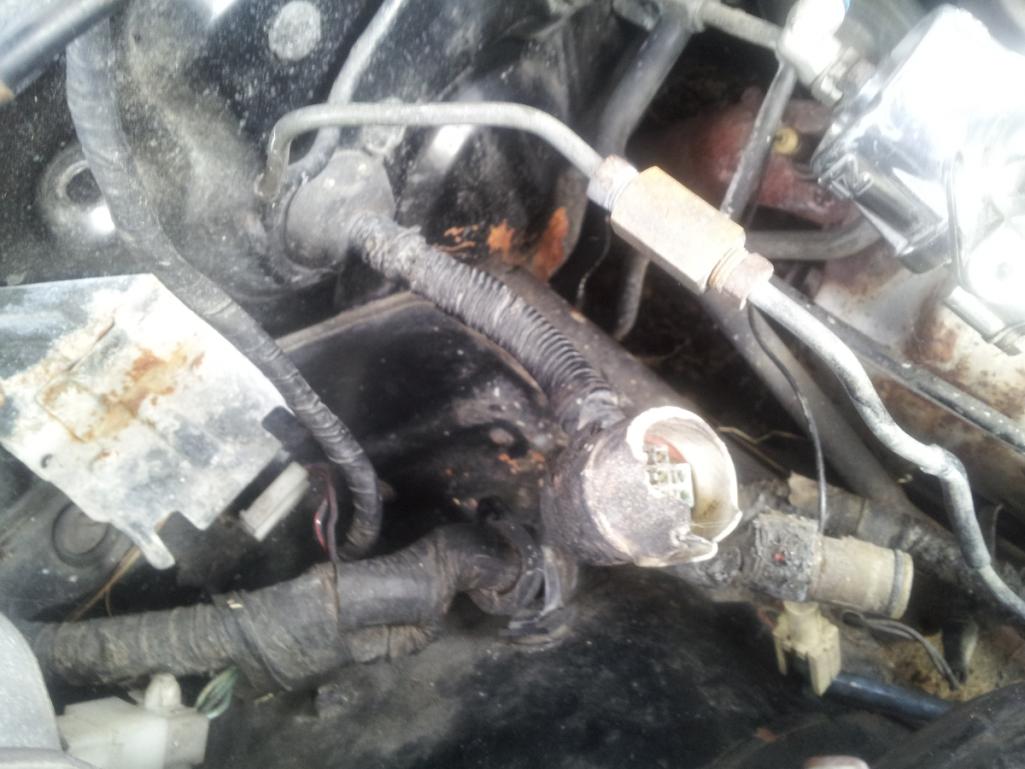

1st pic - big plastic circular white connector that's melted

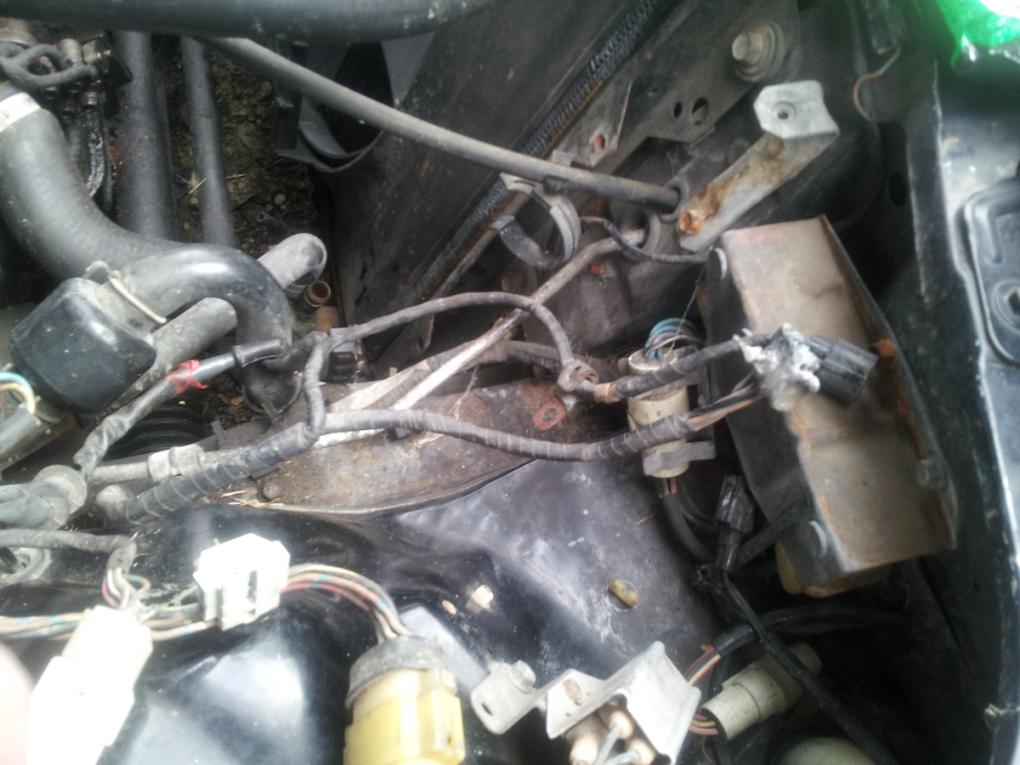

2nd pic- rectangular white connector on wire on right of picture
Rotary >Pistons

RotaryResurrection

iTrader: (8)

Pic 1, the ABS pump that's now deleted.

Pic 2, all front harnesses have the plugs for GXL AAS struts that are normally clipped onto the strut towers, that's what the white 6 terminal plug goes to (nothing on a non-GXL model).

MrGoodnight

iTrader: (1)

Looks like abs to me.


Edit: And I get beat to the punch

wthdidusay82

iTrader: (15)

Thank you Kevin.

I guess I won't have abs then unless I fix the wires and get a new pump.

As far as the aas, this is a t2 so it goes to nothing then.

Do you see a big difference having abs ? I may later fix it if its worth my time.

Rotary >Pistons

MrGoodnight

iTrader: (1)

From what I have read on here, 2nd gen abs isn't that good compared to 3rd gen.

My 2cents

Edit: I removed mine, no regrets (almost 2 years)
It was leaking though so I just yanked it out.

RotaryResurrection

iTrader: (8)

Mostly only 89-91 t2's had ABS, a VERY few 88 t2's came with them but I've only ever seen one in all my time dealing with FC's. The ABS is nice if it works, but the FC ABS pumps have issues leaking and that is why most people eliminate it and go for a conventional brake system. I wouldn't try to reinstall ABS where it's been removed, the parts will be too hard to find in usable condition.

wthdidusay82

iTrader: (15)

Ok thanks and this car is an 87 not an 88 so the chances are probably even less I would think.

I'm just wondering how these connectors got burned, who knows.

edit - Also the connector right next to the big circular one in the picture is melted a bit too, is that also a connector for the abs ?

RotaryResurrection

iTrader: (8)

Never seen an 87 with ABS...odd.

By being beside the hot turbo with the exhaust shielding removed...

Yes.

wthdidusay82

iTrader: (15)

I think the turbo still has the shielding on the ex manif.

The other wires for the aas aren't really in the vicinity of the Turbo though.

Maybe they grounded something outon that one who knows.

All that matters to me is that everything is the way it should be.

I didn't find a fcd and the car has a 3" exhaust, not too smart.

I only want to run like 8-10psi on the stock system with a fcd. Anymore I don't think would be very safe.

Rotary >Pistons

beefhole

iTrader: (29)

Am I seeing things? RotaryResurrection is back?!

dwb87

iTrader: (22)

^ +1!


Glad to see! K.L. FTW!

clokker

iTrader: (2)

Welcome back, RR.

About that AAS plug...
I thought all the harnesses had it too but my '90 GTU does not.
No sign of antilock brake wiring either.

Maybe the base model S5s got pruned down harnesses?

wthdidusay82

iTrader: (15)

Everyone gets rid of the aas when they replace their shocks anyways, like everyone gets rid of the dtss eliminators.

Rotary >Pistons

Molotovman

iTrader: (49)

Kevin, go to the lounge and make an "I'm back" thread.

p0tat0s

iTrader: (3)

clokker i believe so my 90 gtu also doesnt have the aas or abs connectors

j9fd3s

iTrader: (3)

i know that the lesser models don't get the power window wire, aas seems to be hit and miss though

RotaryResurrection

iTrader: (8)

I kind of want to lay low for a while to be honest.

RotaryResurrection

iTrader: (8)

Only ABS equipped cars got ABS wiring.

But it seems like most of the FC's that I see have the wiring for AAS at the front struts, but some of the s5's did not, it seems hit or miss.
