Weird electrical stuff with Turboed n/a
06-11-05, 09:36 PM
#26
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Make sure the other two plugs on the emissions harness inside the car are fully connected. One of them is the one that supplies battery voltage to the ECU thru the yellow plug on the ECU (memory). It does more than that, but that's fairly important (black/yellow wires in the plug).
06-11-05, 09:38 PM
#27
Passing life by
Originally Posted by Houstonderk
I mean't 550s. my bad. THe manifolds were port matched. The emmission harness was the only one changed. I'll try that in the morning. Is there anything else i should look for. I would like this thing to at least start up.
My name is Chris Scott or some 7 owners know my gf tiffany Mathis.
06-12-05, 10:15 AM
#28
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

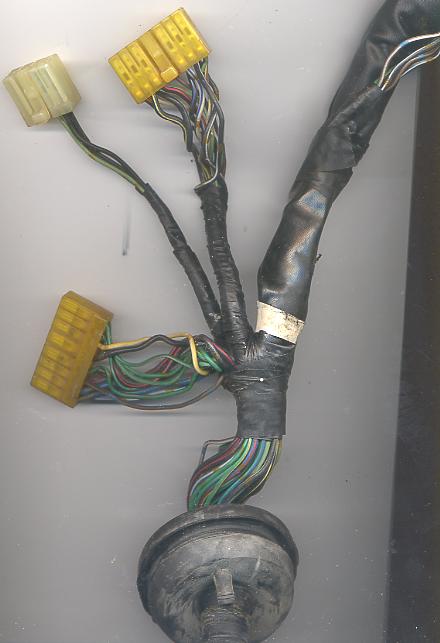

Right after the emissions harness comes thru the bulkhead, there are three plugs on a series four. You need to make sure the one that has the two BLACK/YELLOW wires in it is fully connected up. A jpg is attached of those three plugs.
06-12-05, 04:39 PM
#29
Thanks for everyones help especially hailers. Found the plug behind that thick black carpet stuff on the firewall and plugged it in. Now car is running extremely strong. Just got some small problems to work out like the throttle sticking and the exhaust getting back together.
