water thermo sensor worth reading
I will skip all the boring BS.
I have a somewhat inexpensive ohmmeter and im testing my thermo sensor. the old one reads as follows:
creeping up to 176 F it will do this
.415ohms
.410ohms
.405 ohms so on and so forth until at about .370 ish and then it jumps to 360.78 ohms
I bought a new therosensor and the same thing is happening (only difference is about + or - .04 ohms
PLEASE help me understand this thing. can it be the ohmmeter, or can it be two bad thermo sensors in a row?
I have a somewhat inexpensive ohmmeter and im testing my thermo sensor. the old one reads as follows:
creeping up to 176 F it will do this
.415ohms
.410ohms
.405 ohms so on and so forth until at about .370 ish and then it jumps to 360.78 ohms
I bought a new therosensor and the same thing is happening (only difference is about + or - .04 ohms
PLEASE help me understand this thing. can it be the ohmmeter, or can it be two bad thermo sensors in a row?
#2
Pistons are gay
iTrader: (11)
Join Date: Dec 2006
Location: Prince George, BC
Posts: 1,973
Likes: 0
Received 0 Likes
on
0 Posts
I have no answer for your question, but I have a question. Where do you get a water thermo sensor these days? I can't find any, unless im looking in the wrong sections on sites.
#7
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
I will skip all the boring BS.
I have a somewhat inexpensive ohmmeter and im testing my thermo sensor. the old one reads as follows:
creeping up to 176 F it will do this
.415ohms
.410ohms
.405 ohms so on and so forth until at about .370 ish and then it jumps to 360.78 ohms
I bought a new therosensor and the same thing is happening (only difference is about + or - .04 ohms
PLEASE help me understand this thing. can it be the ohmmeter, or can it be two bad thermo sensors in a row?
I have a somewhat inexpensive ohmmeter and im testing my thermo sensor. the old one reads as follows:
creeping up to 176 F it will do this
.415ohms
.410ohms
.405 ohms so on and so forth until at about .370 ish and then it jumps to 360.78 ohms
I bought a new therosensor and the same thing is happening (only difference is about + or - .04 ohms
PLEASE help me understand this thing. can it be the ohmmeter, or can it be two bad thermo sensors in a row?
Nah. Try doing it slightly differently. Put the meter on VOLTS DC instead of ohms. Leave the plugs on the ECU and backprobe the water thermo sensor wire with your meters positve lead. Negative lead on a known ground point.
Then start the engine and let it idle from cold til it gets fully hot. As the water temp rises, the volage slowly drops on the meter. When the engine gets fully hot the voltage will be approx 0.5vdc.
When you start out the voltage could be in the 1-3vdc range depending on how cold the weather/engine coolant is.

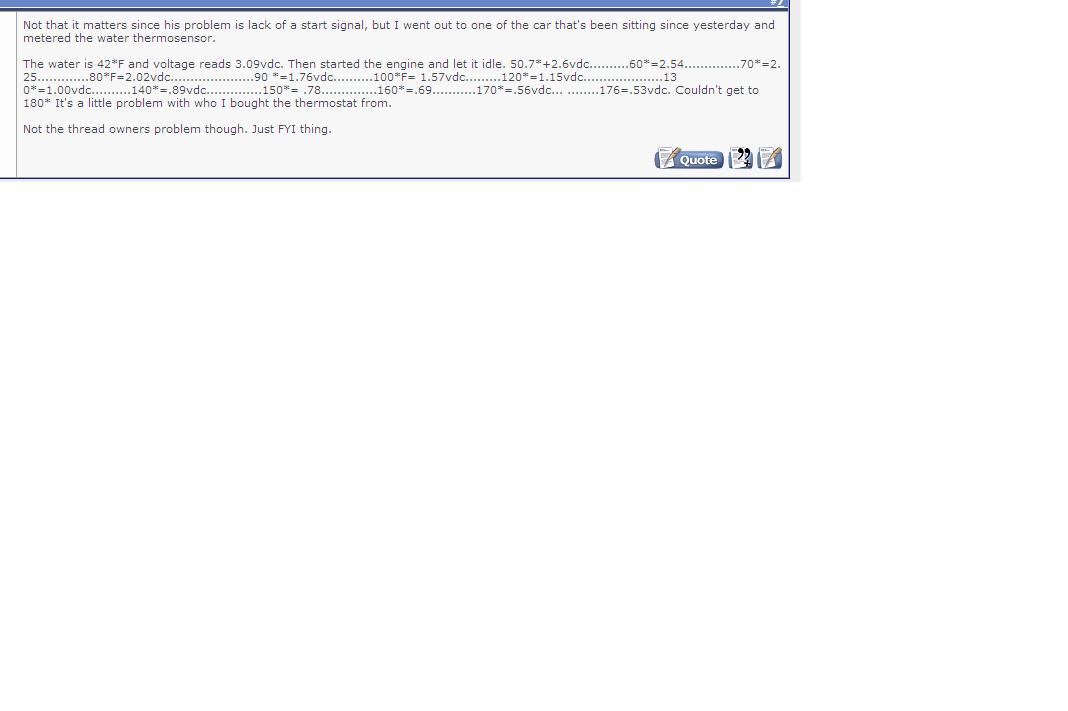

I wrote on a thread on this site a couple of weeks ago the Approx temp vs voltage. Somewhere.
Trending Topics
#9
#3 for me
Thread Starter
Join Date: Sep 2004
Location: portland,OR
Posts: 178
Likes: 0
Received 0 Likes
on
0 Posts
Thanks HAILERS, I will try it when i get this car running. currently i am having troubles that when it warms up and i have the idol set at a low 900-1000 the thing dies and i cant restart it when it it hot.
