water temp guage install

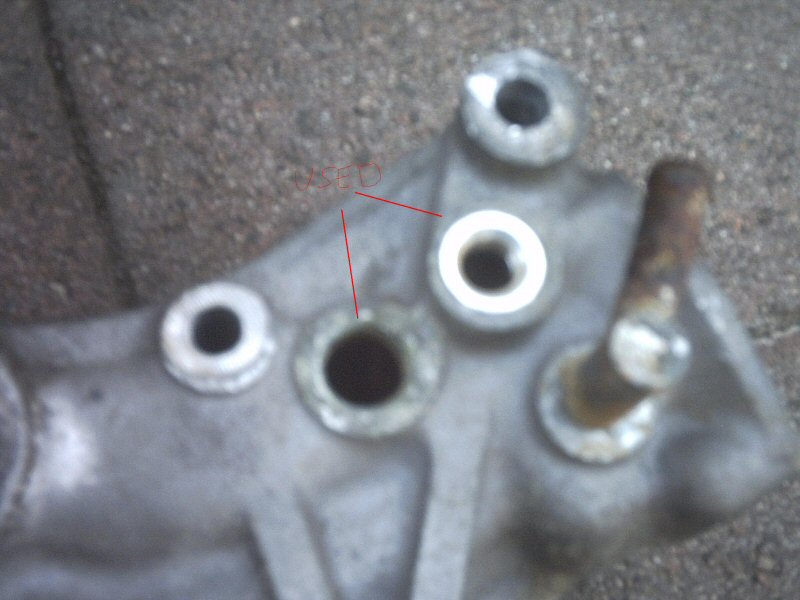

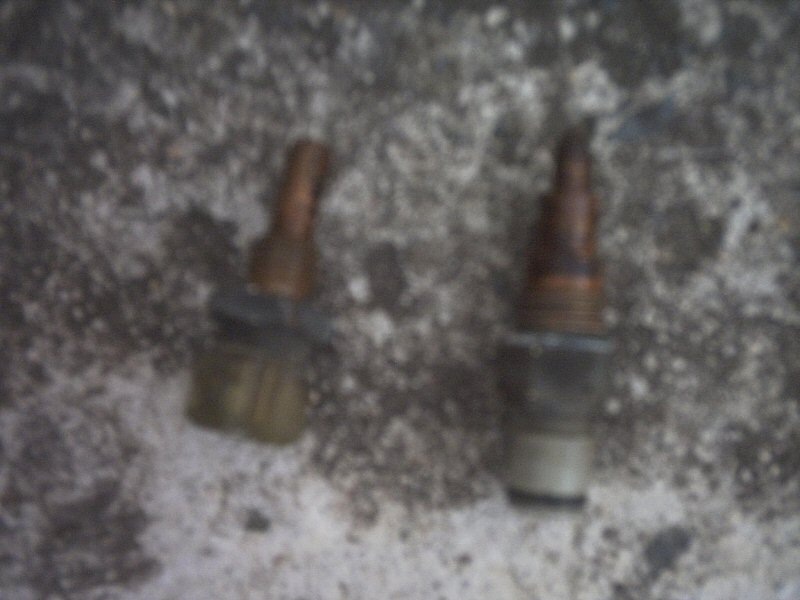

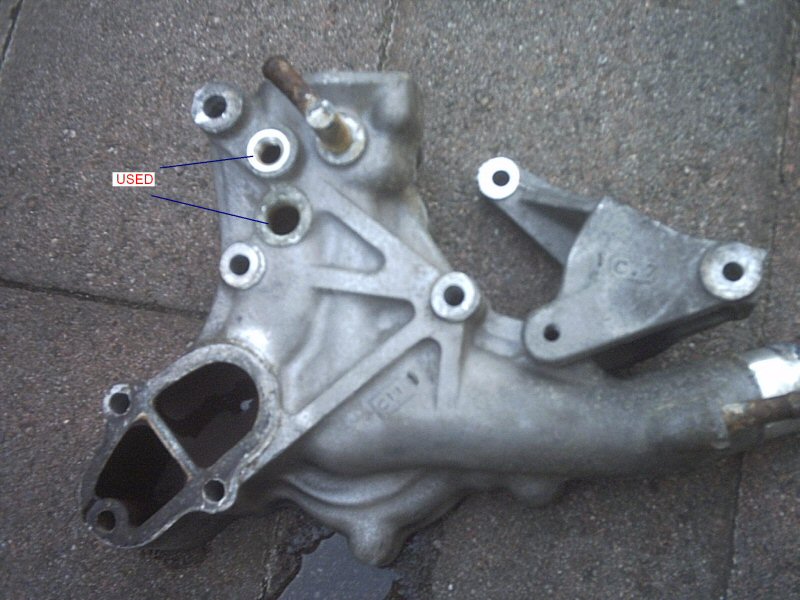

i got a autometer mechanical water temp guage, i've taken off the water pump housing, now i wanna drill and tap to fit the temp guage. I already have 2 sensors at the back of the water pump housing, i dont' know why. This is a s5.
where do i drill and tap?
where do i drill and tap?
06-12-05, 04:15 AM
#4
I R SAD PANDA W/O BAW
1 is for the water thermosensor and the other is for the auxillery fan for AC I believe, not positive about the 2nd one though just going from memory. You can drill and tap on the front of the wp housing below the tsat. Just make sure wherever you drill will not interfere with tstat movement.
Trending Topics
06-19-05, 07:21 AM
#8
Haven't we ALL heard this
Originally Posted by sosofast
i got no idea where on the housing to drill, i wanna keep the aux e-fan. the front of the housing looks to cramped
Where ever you decide to put it....just put it south of the thermostat.
Last edited by Wankel7; 06-19-05 at 07:23 AM.
