Vacuum Solenoids

Just wondering about the vacuum solenoids (the solenoid rack, orange grey blue green and yellow) whether or not the are all identical. Reason is i was looking at my workshop manual the other day and realized that the plugs that go in to the back of them were all wrong. See i don't have stickers on solenoids any more , so does it matter what solenoid i use, as long as the plugs and vacuum lines are in the right place. One of the vacuum lines didn't even have a solenoid on it and wasn't even blocked off.

pls help if you know anything about them.

Cheers

Reply Like

04-14-10, 01:59 AM

MazDan

Full Member

iTrader: (3)

Join Date: May 2007

Location: Vancouver

Posts: 105

Likes: 1

Received 2 Likes on 2 Posts

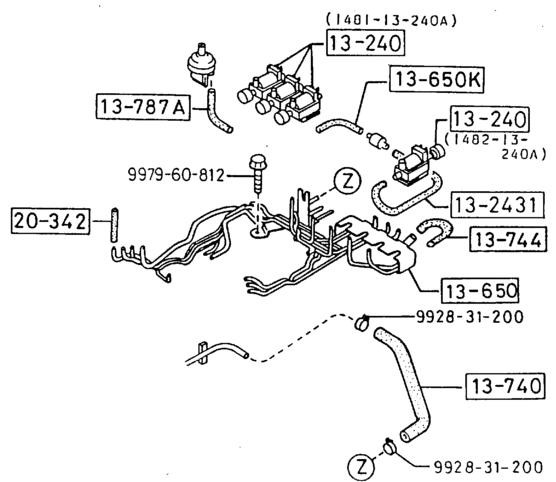

Looks like 3 of them are the same and 1 is different (for an S4 turbo). I'm basing this on the part numbers in this diagram.

Attached Thumbnails

Reply Like

04-14-10, 08:18 AM

HAILERS

Join Date: May 2001

Location: FORT WORTH, TEXAS,USA

Posts: 20,563

Likes: 0

Received 21 Likes on 19 Posts

They are all the same item, just that they are CONFIGURED differently. You CONFIGURE them by moving the small air filter from one plastic nipple to another. You make them look JUST like they are shown in the FSM (fuel and emissions section).
