In the middle of reassembling manifolds after cleaning port sleeves on my S5 vert, got myself slightly confused on just where the vac hoses go. Is there an easy to comprehend pic somewhere? I've looked at the shop manual, cant find for sure what I need. If you guys have any pics you taken during such an endeavor, may I see them?

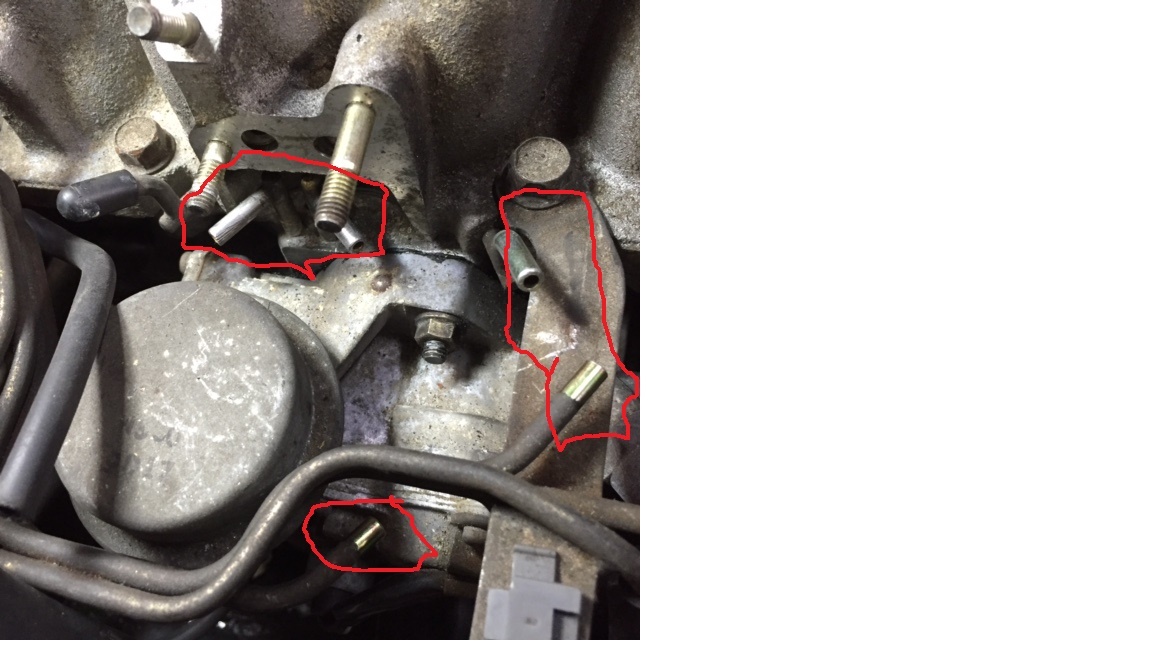

These guys first..



When it stops raining I can get some pics.

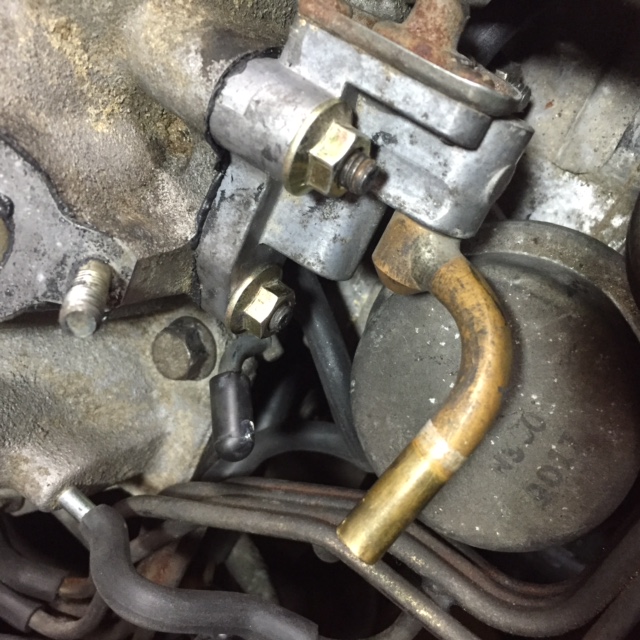

Wow thanks..I actually think I have those figured out.. however the ports on the top of the dynamic chamber toward the firewall are my next project. If you could snap those that'd be great!



The metal spider tubes point right at the nipples on the throttle body, they connect just like they look like they should.



Got it, thanks a ton!

Last item, promise (unless upon startup it doesnt run like it did BEFORE I "fixed" it in which case all bets are off..)
