vaccum line help! with pics

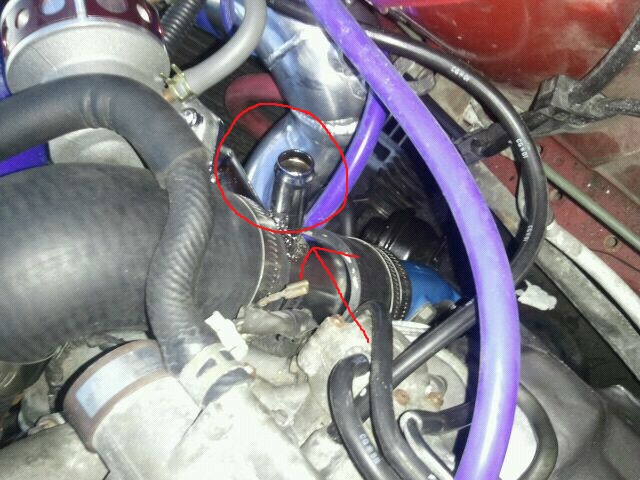

need help with these lines for pic 1
- thts the line coming off my pipe between turbo n intercooler has a bov on it

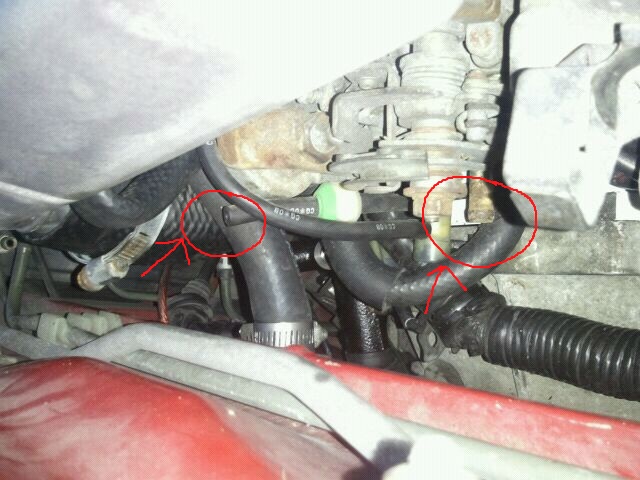

pic 2
- this is a long hose coming off uim going towards the firewall

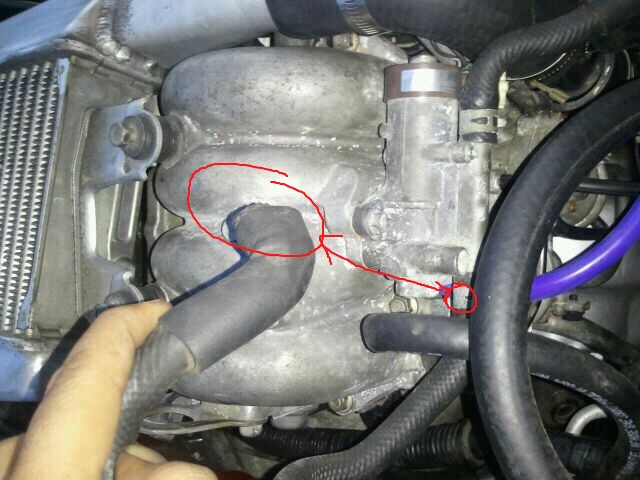

pic 3
- this is a long hose coming from the same place put going towards the front of the car

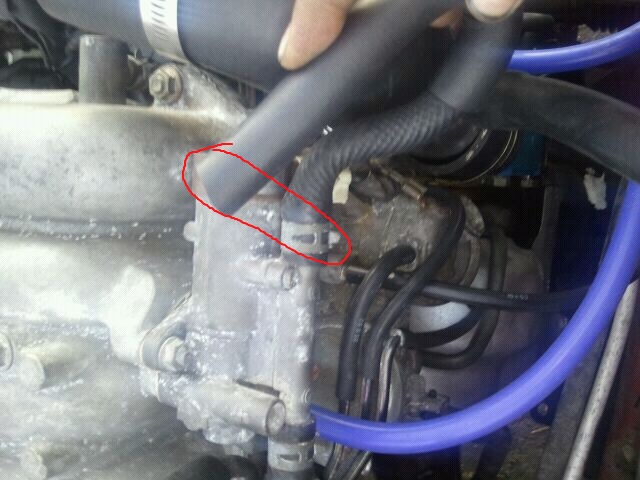

pic 4
- i have two things in this one the little black hose with some sort of bobble oon it and then that big nipple coming off the TB these are both off the NA TB

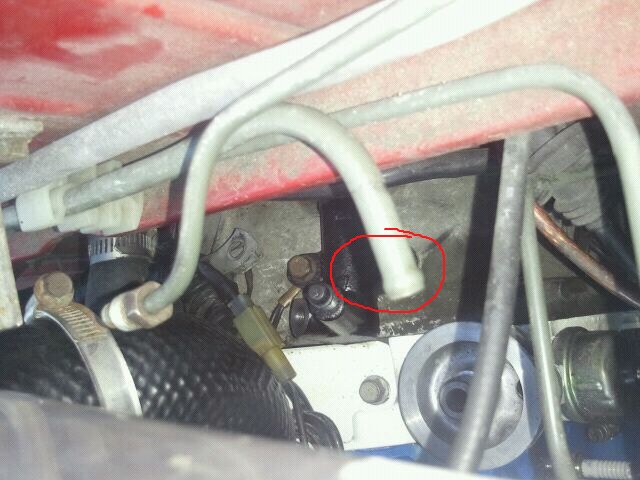

pic 5
- this is a line coming from my charcoal canister i believe it goes into the line under the two fuel lines ?
thanks for your help !!
- thts the line coming off my pipe between turbo n intercooler has a bov on it
pic 2
- this is a long hose coming off uim going towards the firewall
pic 3
- this is a long hose coming from the same place put going towards the front of the car
pic 4
- i have two things in this one the little black hose with some sort of bobble oon it and then that big nipple coming off the TB these are both off the NA TB
pic 5
- this is a line coming from my charcoal canister i believe it goes into the line under the two fuel lines ?
thanks for your help !!
#3
rotorhead
iTrader: (3)
1. That's for the stock BOV as you noted. So connect one end of the BOV to that hose, and the other end of the BOV goes back to the turbo inlet duct.
2. Brake booster hose? If you have a JDM engine, you will have to rig something up because the brake booster hose is on the rear of the LIM instead of on the back of the UIM, closer to the brake booster. Do a search on this topic.
3. That could be the hose feeding the BAC valve from the TID.
4. The small hose is for the double throttle. I'm not sure about the large hose in this pic. There are a few hoses back there. Is it a coolant hose?
5. It's been a long time since I've messed with a charcoal canister on these cars...
2. Brake booster hose? If you have a JDM engine, you will have to rig something up because the brake booster hose is on the rear of the LIM instead of on the back of the UIM, closer to the brake booster. Do a search on this topic.
3. That could be the hose feeding the BAC valve from the TID.
4. The small hose is for the double throttle. I'm not sure about the large hose in this pic. There are a few hoses back there. Is it a coolant hose?
5. It's been a long time since I've messed with a charcoal canister on these cars...
#4
Team Doodoo
Thread Starter
iTrader: (3)
Join Date: Aug 2010
Location: Poughkeepsie, NY
Posts: 273
Likes: 0
Received 0 Likes
on
0 Posts
1. That's for the stock BOV as you noted. So connect one end of the BOV to that hose, and the other end of the BOV goes back to the turbo inlet duct.
2. Brake booster hose? If you have a JDM engine, you will have to rig something up because the brake booster hose is on the rear of the LIM instead of on the back of the UIM, closer to the brake booster. Do a search on this topic.
3. That could be the hose feeding the BAC valve from the TID.
4. The small hose is for the double throttle. I'm not sure about the large hose in this pic. There are a few hoses back there. Is it a coolant hose?
5. It's been a long time since I've messed with a charcoal canister on these cars...
2. Brake booster hose? If you have a JDM engine, you will have to rig something up because the brake booster hose is on the rear of the LIM instead of on the back of the UIM, closer to the brake booster. Do a search on this topic.
3. That could be the hose feeding the BAC valve from the TID.
4. The small hose is for the double throttle. I'm not sure about the large hose in this pic. There are a few hoses back there. Is it a coolant hose?
5. It's been a long time since I've messed with a charcoal canister on these cars...
#6
Team Doodoo
Thread Starter
iTrader: (3)
Join Date: Aug 2010
Location: Poughkeepsie, NY
Posts: 273
Likes: 0
Received 0 Likes
on
0 Posts
the apexi directions dont show a recirculation route with the hoses = / also any one got any info on those lines? need to get it running asap!
Last edited by Rickyyp; 08-04-11 at 09:17 AM.
#7
This is my social media.
iTrader: (22)
Join Date: Jan 2006
Location: WA
Posts: 2,744
Likes: 0
Received 0 Likes
on
0 Posts
Both hoses in pic 2 and pic 3 go to/from the BAC. (Bypass Air Control valve) Unfortunately, I have removed all of my emissions. I'm not completely sure where exactly these connect. I'm checking the FSM, and cannot get a good view as to where these hoses connect.
I know that the hose in pic 2 connects on the backside of the TB. The hose in pic 3 is a water hose.
I know that the hose in pic 2 connects on the backside of the TB. The hose in pic 3 is a water hose.
Last edited by dwb87; 08-04-11 at 11:47 AM.
Trending Topics
#9
Top Down, Boost Up
iTrader: (7)
The coolant line in pic 2 connects to the thermowax on the TB in pic 4. The coolant hose in pic 3 connects to the back of the water pump housing. Alternatively you can remove both of these lines, and run a hose directly from the water pump housing to the TB.
Cap the BOV/bypass valve connection in pic 1.
Pic 5 is either brake booster routing or PCV/charcoal canister related depending on the chassis.
Cap the BOV/bypass valve connection in pic 1.
Pic 5 is either brake booster routing or PCV/charcoal canister related depending on the chassis.
#10
Team Doodoo
Thread Starter
iTrader: (3)
Join Date: Aug 2010
Location: Poughkeepsie, NY
Posts: 273
Likes: 0
Received 0 Likes
on
0 Posts
The coolant line in pic 2 connects to the thermowax on the TB in pic 4. The coolant hose in pic 3 connects to the back of the water pump housing. Alternatively you can remove both of these lines, and run a hose directly from the water pump housing to the TB.
Cap the BOV/bypass valve connection in pic 1.
Pic 5 is either brake booster routing or PCV/charcoal canister related depending on the chassis.
Cap the BOV/bypass valve connection in pic 1.
Pic 5 is either brake booster routing or PCV/charcoal canister related depending on the chassis.
