US vs. JAPAN FC3S
what are the differances between the US spec FC's and the Japan spec FC's? Other then the obvious such right hand drive and different mirrors.
12-13-05, 05:46 AM
#4
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Compared to US models, Japanese FC's have...
No non-turbo engine
No EGR (S4)
No AWS
No sub-zero starting assist system
No pre-cat
Different ACV with no split air solenoid
FPR and PD in opposite locations
Twin-scroll actuator on opposite end of exhaust manifold (S4)
No thermovalve on TB
No "SHIFT UP" light
Metric gauges
180km/h (112mph) speedometer
180km/h (112mph) speed limiter
Side indicators instead of front side marker lights
No rear side marker lights
Front marker lights instead of FTP lenses
Headlights pop up when flashed
No automatic seatbelts
No seatbelt warning light/buzzer
No factory alarm
Larger convex side mirrors
Different wheels
Different model designations
No non-turbo engine
No EGR (S4)
No AWS
No sub-zero starting assist system
No pre-cat
Different ACV with no split air solenoid
FPR and PD in opposite locations
Twin-scroll actuator on opposite end of exhaust manifold (S4)
No thermovalve on TB
No "SHIFT UP" light
Metric gauges
180km/h (112mph) speedometer
180km/h (112mph) speed limiter
Side indicators instead of front side marker lights
No rear side marker lights
Front marker lights instead of FTP lenses
Headlights pop up when flashed
No automatic seatbelts
No seatbelt warning light/buzzer
No factory alarm
Larger convex side mirrors
Different wheels
Different model designations
Trending Topics
12-13-05, 02:06 PM
#11
Originally Posted by ajsuper7
oh and the taillights are different lol
12-13-05, 02:11 PM
#12
Senior Member
iTrader: (1)
Join Date: Aug 2002
Location: Ontario, Canada
Posts: 292
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by vipers
the only difference on the taillights was a little decal put on the s4 tails saying "rotary turbo"....... thats it! when you go to ebay and they clain "jdm circle taillights"...thats just a ploy for stupid people, so they end up paying more for what they thought were jdm parts...but they are identical........ now european taillights are a different story all together...they are deffinently different!
show me.
12-13-05, 02:31 PM
#13
Former Moderator. RIP Icemark.
Originally Posted by madscientist
got pics of the european market lights?
show me.
show me.
I have a set at home, i'll see if I can take a picture
12-13-05, 06:48 PM
#18
Originally Posted by Icemark

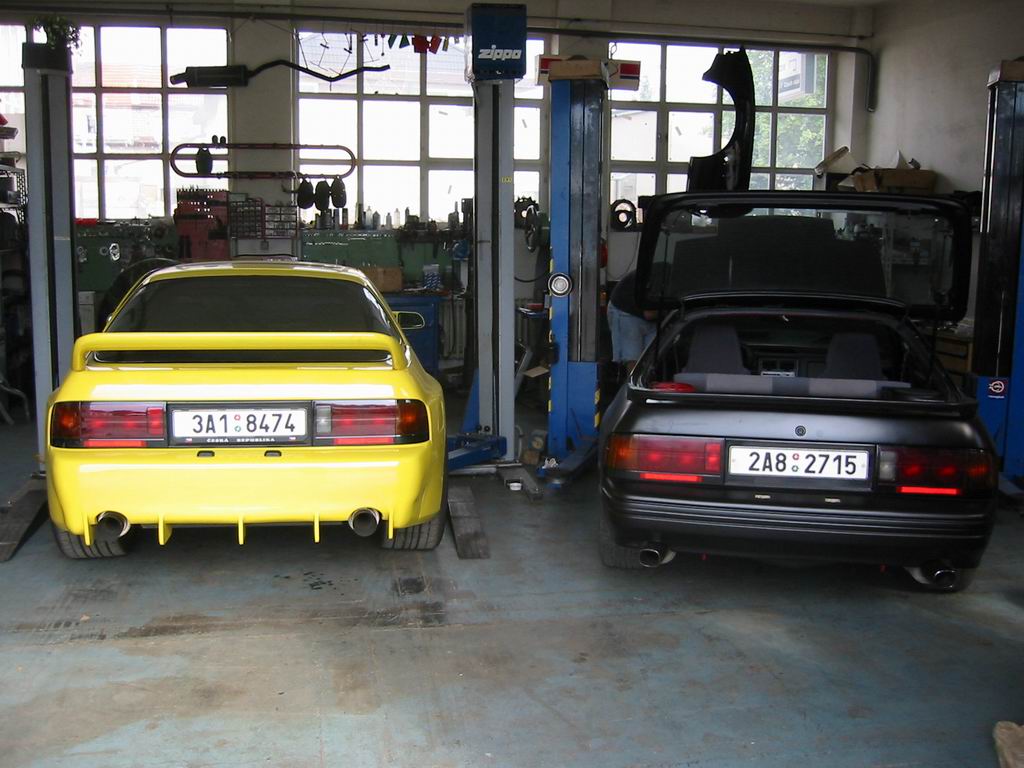

on the S4 euro models the reverse light was only half the size, with the other half being a rear fog light.
I have a set at home, i'll see if I can take a picture
I have a set at home, i'll see if I can take a picture
12-13-05, 08:01 PM
#19
Former Moderator. RIP Icemark.
Originally Posted by vipers
also....on euro lights...there is one reverse light, and one red light..also, all euro lights are shorter to compensate for the larger liscense plates
12-13-05, 08:52 PM
#21
Ling Ling
Thread Starter
iTrader: (22)
Join Date: May 2005
Location: Coatesville, PA
Posts: 469
Likes: 0
Received 0 Likes
on
0 Posts
the brake master cylindar and the windshield wiper motor are switched along with that plastic bottle (dont know what it is), clutch slave sylindar is probubally on the other side too
12-13-05, 09:55 PM
#25
Junior Member
Join Date: Jun 2004
Location: Vallejo, Ca
Posts: 35
Likes: 0
Received 0 Likes
on
0 Posts
japanese rx7's steering wheel is switched. plus you will have to learn how to drive stick shift with your left hand. Also, most japanese people drive japanese rx-7's due to the fact that there are a lot of japanese people in japan. wheras in america, there is a diverse group of people that drive american rx-7's.
