underhood relay buzzing. must be bad but what does it do?

Thread Tools

Search this Thread

Old 12-22-04, 10:46 AM
  #1
Senior Member

Thread Starter

enrique's Avatar

Join Date: Jul 2003
Location: san diego, ca
Posts: 360
Likes: 0
Received 0 Likes on 0 Posts
underhood relay buzzing. must be bad but what does it do?

Under the hood where the coolant resivour is there are some relays. the outer most relay going towards the passanger side is buzzing. car is drving fine. would buzz when the car is shut off but not when driving. when I went out to the car this am it was no longer buzzing. what is this relay for? I am hoping that its for something I don't need and can just disconnect it.
Old 12-22-04, 11:10 AM
  #2
Like Ghandi with a gun


Kenteth's Avatar

Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes on 0 Posts
The buzzing is actually called relay chatter.

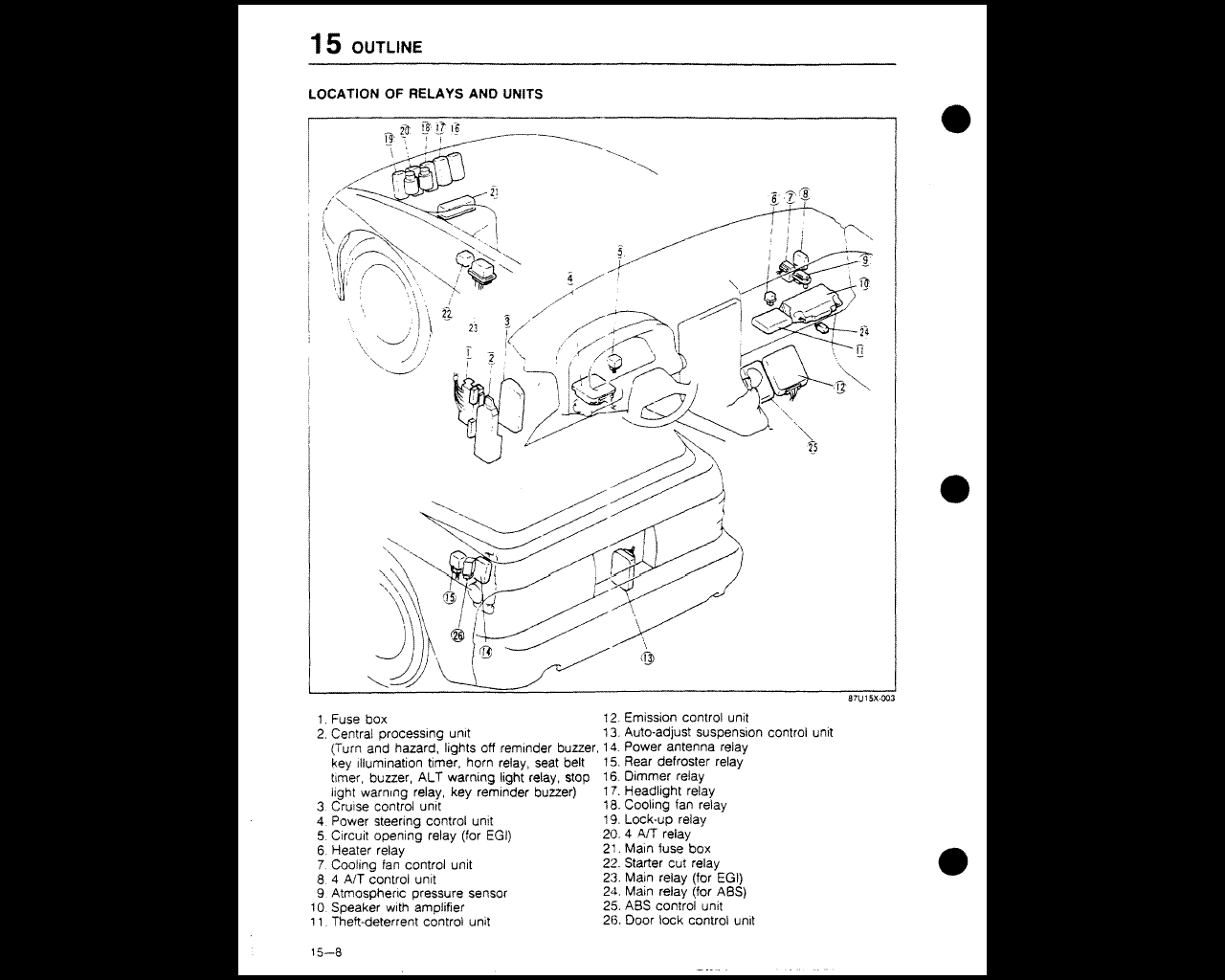

See attachement to identify the relay
Attached Thumbnails underhood relay buzzing. must be bad but what does it do?-untitled.gif
Old 12-22-04, 11:32 AM
  #3
Senior Member

Thread Starter

enrique's Avatar

Join Date: Jul 2003
Location: san diego, ca
Posts: 360
Likes: 0
Received 0 Likes on 0 Posts
its 16 the dimmer relay. so why do the relays chatter?
Old 12-22-04, 12:41 PM
  #4
Like Ghandi with a gun


Kenteth's Avatar

Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes on 0 Posts
download the FSM (links available in the FAQ) and run through the troubleshoot they have for that relay
Old 12-22-04, 02:51 PM
  #5
Rotary Enthusiast


drago86's Avatar

Join Date: Oct 2002
Location: California, Bay Area
Posts: 1,165
Likes: 0
Received 0 Likes on 0 Posts
the BAC valve buzzes with the ket on,.. sure thats not what your hearing?
Old 12-22-04, 02:59 PM
  #6
Like Ghandi with a gun


Kenteth's Avatar

Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by drago86
the BAC valve buzzes with the ket on,.. sure thats not what your hearing?
Doesn't really buzz, more of a audible vibration. Relay chatter is considerbly different sounding than the BAC. Relay chatter is more of a... chatter (think chimpmunk), a buzz is more of a signal type alarm.

If its chatter you'll know. Relay chatter happens when the switcing wire has instable/fluctuationg or borderline voltage.
