turbo motor ?
Hello,

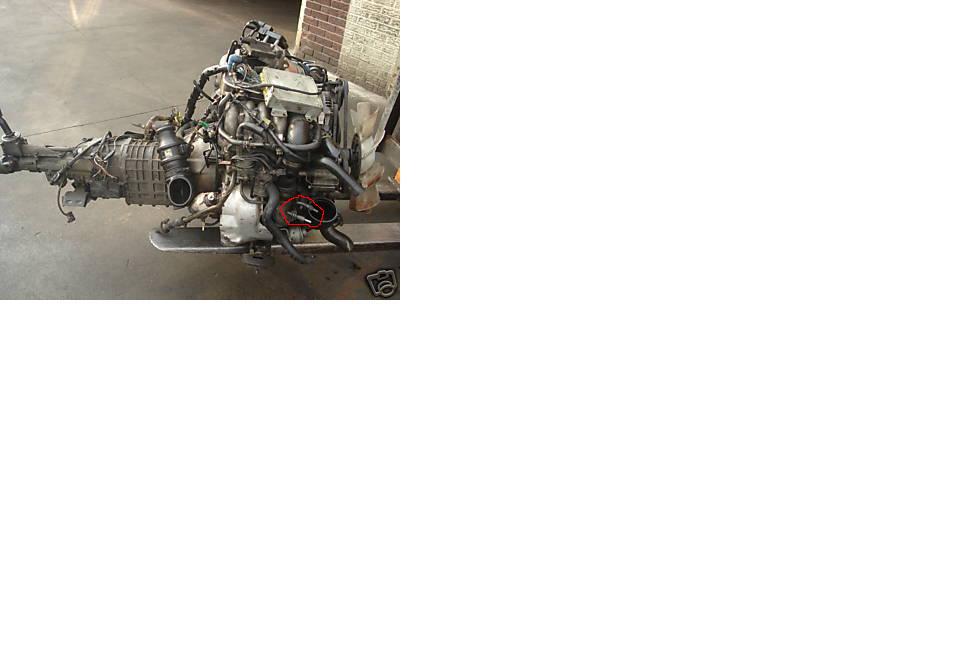

Does any body know what the two lines that are coming off the motor are that I have circled in red? I hope the Attachment works I don`t know if I did it right.
Thanks
Does any body know what the two lines that are coming off the motor are that I have circled in red? I hope the Attachment works I don`t know if I did it right.
Thanks
08-27-08, 05:13 PM
#4
Senior Member
Thread Starter
iTrader: (7)
Join Date: Jul 2008
Location: ohio
Posts: 253
Likes: 0
Received 0 Likes
on
0 Posts
turbo motor ?
Hello,
I am going to try this again the first picture that I put on here is to small, any way I just need to know what the two lines are that coming off the turbo.
I am going to try this again the first picture that I put on here is to small, any way I just need to know what the two lines are that coming off the turbo.
08-27-08, 08:43 PM
#5
Well, one is the metered air feed for the crankcase evap system (plugs into the TID). The other one is too far forward to be the coolant hardline, so maybe it's the silicone line tee'd into the wastegate actuator line that connects to the turbo duty solenoid. You really need a bigger picture to be sure, and I'd suggest checking the diagrams in the FSM.
