TIMING ISSUES! Switched pulleys, and the timing marks are totally different?

2nd Generation Specific (1986-1992) 1986-1992 Discussion including performance modifications and technical support sections.
Sponsored by:

TIMING ISSUES! Switched pulleys, and the timing marks are totally different?

Old 10-22-11, 09:21 PM
  #26
Jackstand Drifter
5 Year Member
Thread Starter
iTrader: (10)

Osirus9's Avatar

Join Date: Dec 2006
Location: Chicago, IL
Posts: 1,065
Thanks: 0
Thanked 0 Times in 0 Posts
so yea, it was just that the CAS had jumped a tooth when I installed it. It's way easier to do than you'd think. I took the cover off and watched to make sure the CAS didn't spin when I installed it and had to try a few times to get it to go in without spinning. tricky bastard...

anyway after that I set the trigger angle on the haltech to 65 and bam! timing was spot on.

Best part? not 30 seconds later the car starts to run like **** again, I put the timing light on the L2 wire and NOTHING... half the damn coil pack is dead... the trailing pack is also dead, that died yesterday while I was watching it... so I need BOTH coil packs now.

so success was dampened but at least the timing is right now lol
Osirus9 is offline
Old 10-25-11, 01:32 AM
  #27
The waiting game......
10 Year Member
iTrader: (18)

2slow4stock's Avatar

Join Date: Feb 2005
Location: North Aurora
Posts: 2,275
Thanks: 0
Thanked 0 Times in 0 Posts
What haltech are you running? Have you looked into the ignition settings?
2slow4stock is offline
Old 10-26-11, 11:25 PM
  #28
Full Member

Join Date: Jan 2010
Location: West Coast!
Posts: 83
Thanks: 0
Thanked 0 Times in 0 Posts
WoW! I got absolutely Nothing out of this except alot of confusion! All I know, is my car(RoxY) was running when I took her apart. When I put the pulleys back on when it was time, I noticed the same/original pulleys would only go on one way. Otherwise the bolt holes would not line up correctly. I know my mazda book says the shaft key and timing point are supposed to be aligned with each other. Then the yellow timing mark should be at the timing point to set the timing. However, I see the yellow timing mark/notch is at a 90% right angle. There are different types of timing pulleys? Mine also has a -0 or just a 0 mark on the inside. Has anybody else had this?
Poker Player is offline
Old 05-21-14, 09:09 PM
  #29
VMountster
10 Year Member
iTrader: (2)

Join Date: Jan 2003
Location: ct/ma
Posts: 90
Thanks: 0
Thanked 0 Times in 0 Posts
Slightly related, searched but could not find... so here goes (apologies for the resurrection) -
If you are an idiot and installed the CAS gear wrong side forward on the e-shaft, is there ANY way to get the timing right? I'm using a Haltech e6k on an S5 engine.
sil80drifter is offline
Old 05-21-14, 10:20 PM
  #30
Retired Moderator, RIP
iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,758
Thanks: 0
Thanked 95 Times in 82 Posts
is anyone locking the timing on the Haltech to set the timing?
misterstyx69 is offline
Old 05-21-14, 11:58 PM
  #31
VMountster
10 Year Member
iTrader: (2)

Join Date: Jan 2003
Location: ct/ma
Posts: 90
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by misterstyx69 View Post
is anyone locking the timing on the Haltech to set the timing?
Well, I am setting the lock to -5, but since I put the gear on backwards, hunting for the yellow mark on the pulley results in stumbling and stalling. The engine runs ok about a half inch away (on the pulley) from the yellow mark.

I got a reply from an aussie rx7 site, but I'm not sure exactly what he means by it:
AusRotary.com • View topic - Distributor gear polarity
sil80drifter is offline
Old 05-22-14, 12:21 AM
  #32
Retired Moderator, RIP
iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,758
Thanks: 0
Thanked 95 Times in 82 Posts
Lock the timing.
Once you set the correct trigger angle and the pin and marks line up,Unlock the timing.

This Forum has a HALTECH Sub-Section..you may want to post in that section to get more specific answers.
misterstyx69 is offline
Old 05-22-14, 10:03 AM
  #33
VMountster
10 Year Member
iTrader: (2)

Join Date: Jan 2003
Location: ct/ma
Posts: 90
Thanks: 0
Thanked 0 Times in 0 Posts
It's funny how your answer made the Australian guy's answer that much more clear. I'm still not sure why he advises to time the car with the fuel pump fuse off (it will run out of fuel before I even finish the process), but I totally get the overall process. Much appreciate your advice! It never occurred to me to change the trigger angle... I was so set on just keeping all ECU settings the same and playing around with the CAS.... need to look up once in a while, you know? Thanks again.
sil80drifter is offline
Old 05-22-14, 10:34 AM
  #34
Retired Moderator, RIP
iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,758
Thanks: 0
Thanked 95 Times in 82 Posts
I'm just relaying what I am going through too.
I'm NOT 100% on the CAS thing but I am running an FFE trigger wheel.I have to adjust thr Crank angle Electronically through the Haltech settings.

NOW,If you post this Same question up in the Haltech subsection there is a couple guys that are very Knowledgeable on this,especially the "king of the ring" C Ludwig,who sells Haltech so he is the "go to" guy up in that section.
The Main reason why I bought my System was his expertise and quick responses for any problem I had.
Nothing like selling a car and using ALL the Profits to buy an ECU,but that is what I did!
misterstyx69 is offline
Old 05-22-14, 05:07 PM
  #35
Say NO to aux. bridging!
iTrader: (1)

rotarygod's Avatar

Join Date: Jul 2002
Location: Houston
Posts: 4,173
Thanks: 0
Thanked 4 Times in 4 Posts
Be careful. FC timing marks are at -5 and -20 degrees but there were older pullies that were at 0 and -15. If these get interchanged without knowing this, it can be a nightmare. RB pullies are marked at 0, -10, -20, and -30.
rotarygod is offline
Old 05-27-15, 08:21 PM
  #36
Full Member
iTrader: (2)

Join Date: Nov 2011
Location: Reno, NV
Posts: 50
Thanks: 0
Thanked 0 Times in 0 Posts
S4 NA to S4 Turbo II

I went through this today. I know this is an old thread but its information none the less. I did not think my S4 NA pulley had notches. I hit it with a wire brush and whalha! Notches! Anyway the s4 na and s4 TII pulleys are different, the TII is off an 88.5 model.




Last edited by Reddon; 05-27-15 at 08:23 PM.
Reddon is offline
Old 05-28-15, 11:27 AM
  #37
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,243
Thanks: 0
Thanked 96 Times in 87 Posts
Originally Posted by Reddon View Post
Anyway the s4 na and s4 TII pulleys are different
the T2 and Na pulleys have the same part numbers, but they come as an assembly. so apparently the pieces can be different, but a matching set will be correct.

i went through the box of pulleys we have at the man cave II, and 6 our of 7 pulleys matched, but the one that didn't was way off

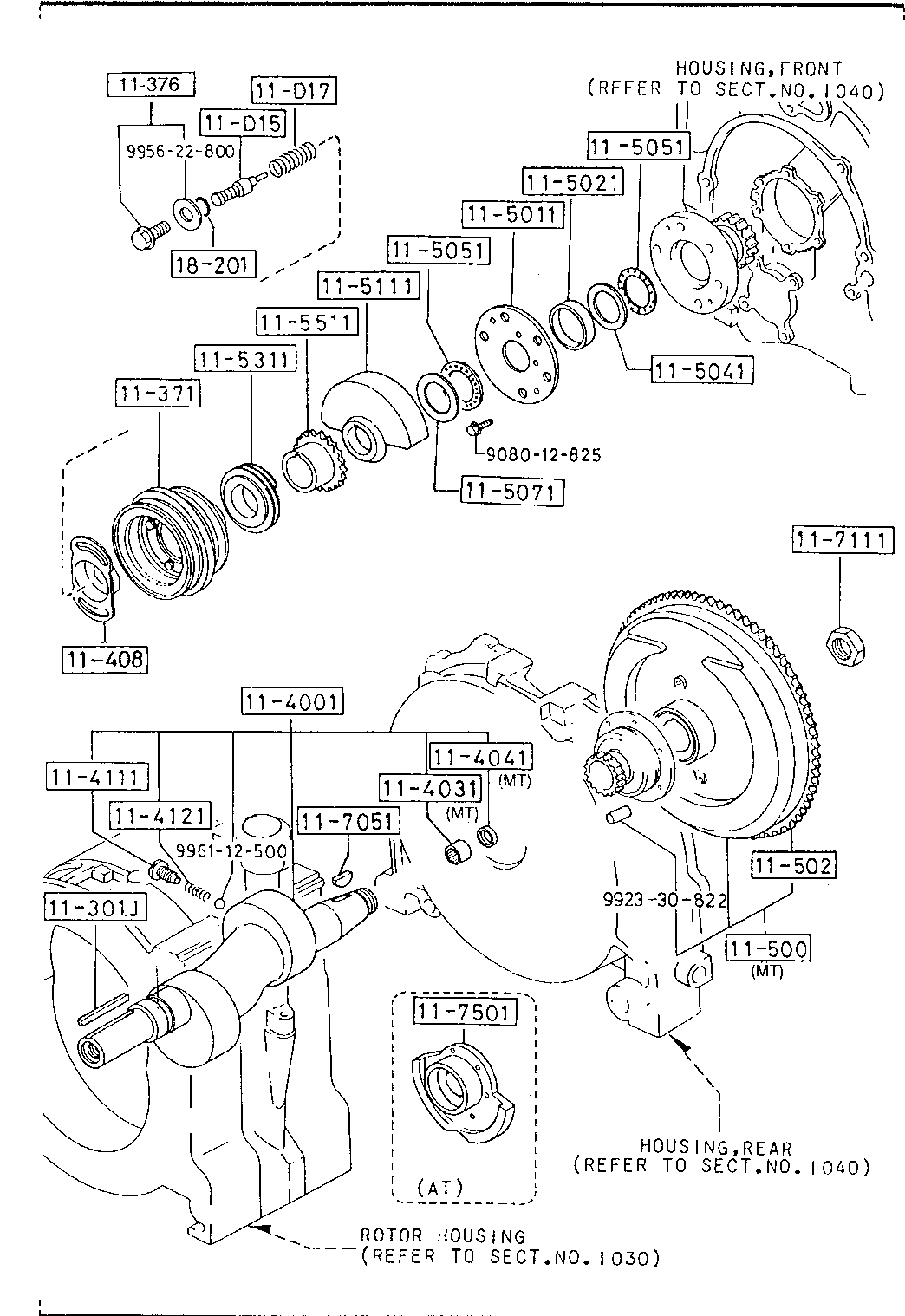

Attached Thumbnails TIMING ISSUES! Switched pulleys, and the timing marks are totally different?-ef12761.png
j9fd3s is offline
Old 05-28-15, 02:58 PM
  #38
Engine, Not Motor
iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,671
Thanks: 0
Thanked 21 Times in 20 Posts
I can't stress enough to NEVER SWAP PULLEYS BETWEEN HUBS OR HUBS BETWEEN PULLEYS. It seems that they are drilled as a set from the factory, or drilled in batches, or something like that. Because there is NO GUARANTEE that one S4 NA pulley will bolt up in the same position as another S4 NA pulley, or S5 to S5, or whatever. Mixing and matching is a recipe for confusion or disaster. If in doubt, verify timing by lining up the engine and comparing it to the pulley. Or buy a pulley/hub set from Mazda.

I like the really old pulley/hubs where the pulley was riveted to the hub.
Aaron Cake is offline
Old 05-28-15, 04:27 PM
  #39
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,243
Thanks: 0
Thanked 96 Times in 87 Posts
its always a good idea to check the timing marks before you put an engine together, any engine, piston engines too
j9fd3s is offline
