TII rear ends - is there a difference between s4 or s5
#26
DONT FEED THE NOOBS
Join Date: Mar 2001
Location: land of slow hondas .... TULSA, OK
Posts: 1,270
Likes: 0
Received 0 Likes
on
0 Posts
reviving the semi-dead i have a 350+ hp one wheeled wonder. my s4 t2 diff is dead when i did the math i calculater like 500 bucks to rebuild it using the parts from mazdatrix. am i reading this wrong? just looking at cost per disc.....
Last edited by gxlbiscuit; 11-08-06 at 09:18 PM.
#30
Moderator
iTrader: (7)
Just for your information i have run into 2 different lenghts of TII output shafts (both from open TII diff) and 2 different lenghts of TII halfshafts (again, both from open TII diff).
I am not positive if is S5 vs S4 difference, or US vs EU difference. It is interchangeable, but you always have to keep right pairs together to maintain proper final lenght, or you will be pulling output shafts out of the diff (it happened us when we mixed it).
Proper setup is obvious :
longer outputshaft + shorter halfshaft
or
shorter outputshaft + longer halfshaft
It is possible to fit longer outputshaft+longer halfshaft, but its very tight. I would not suggest to run this setup on track or any kind of stressfull driving.
As mentioned already, its possible to fit shorter outputshaft + shorter halfshaft, and result will be pulling your outputshaft from diff when you put some stress/cornering/drifting on ther suspension - not good - and you will notice it.
I am not positive if is S5 vs S4 difference, or US vs EU difference. It is interchangeable, but you always have to keep right pairs together to maintain proper final lenght, or you will be pulling output shafts out of the diff (it happened us when we mixed it).
Proper setup is obvious :
longer outputshaft + shorter halfshaft
or
shorter outputshaft + longer halfshaft
It is possible to fit longer outputshaft+longer halfshaft, but its very tight. I would not suggest to run this setup on track or any kind of stressfull driving.
As mentioned already, its possible to fit shorter outputshaft + shorter halfshaft, and result will be pulling your outputshaft from diff when you put some stress/cornering/drifting on ther suspension - not good - and you will notice it.
#32
Former Moderator. RIP Icemark.
Originally Posted by APEXL8T

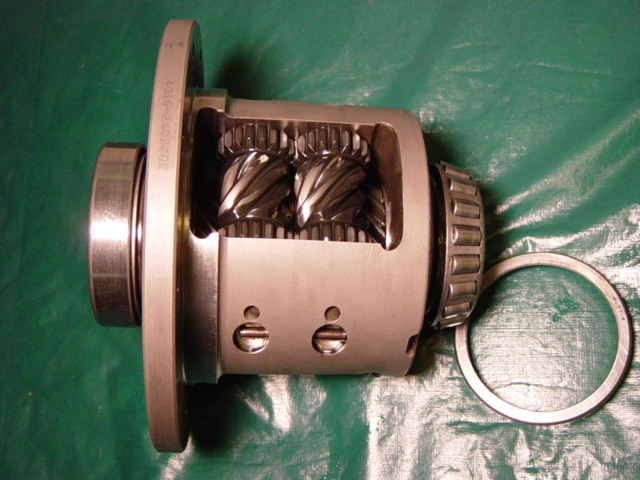

any one know if this is T II or not?
As far as if it is a Turbo or non turbo diff, you would need to measure the ring and see.
7" = Miata/ Non turbo FC
8" = Turbo FC/FD/929 MPV etc
