Thermo Sensor Wiring Help
I'm about to wire up my thermo sensor and I don't know which wire goes where....
I have one Green/White and Black wire. If someone could please look at their connector and tell me on this picture in relation which goes where. Thanks.

Reply
0
Old Jan 23, 2011 | 06:38 AM
Share
  #2
HAILERS2's Avatar
HAILERS2
Rotary Freak

Joined: Jul 2008
Posts: 1,660
Likes: 2
From: FORT WORTH TEXAS
It does not matter to which pin the wires go to.
Reply
0
Old Jan 23, 2011 | 06:47 AM
Share
  #3
HAILERS2's Avatar
HAILERS2
Rotary Freak

Joined: Jul 2008
Posts: 1,660
Likes: 2
From: FORT WORTH TEXAS
It matters not which pin which wire goes to.

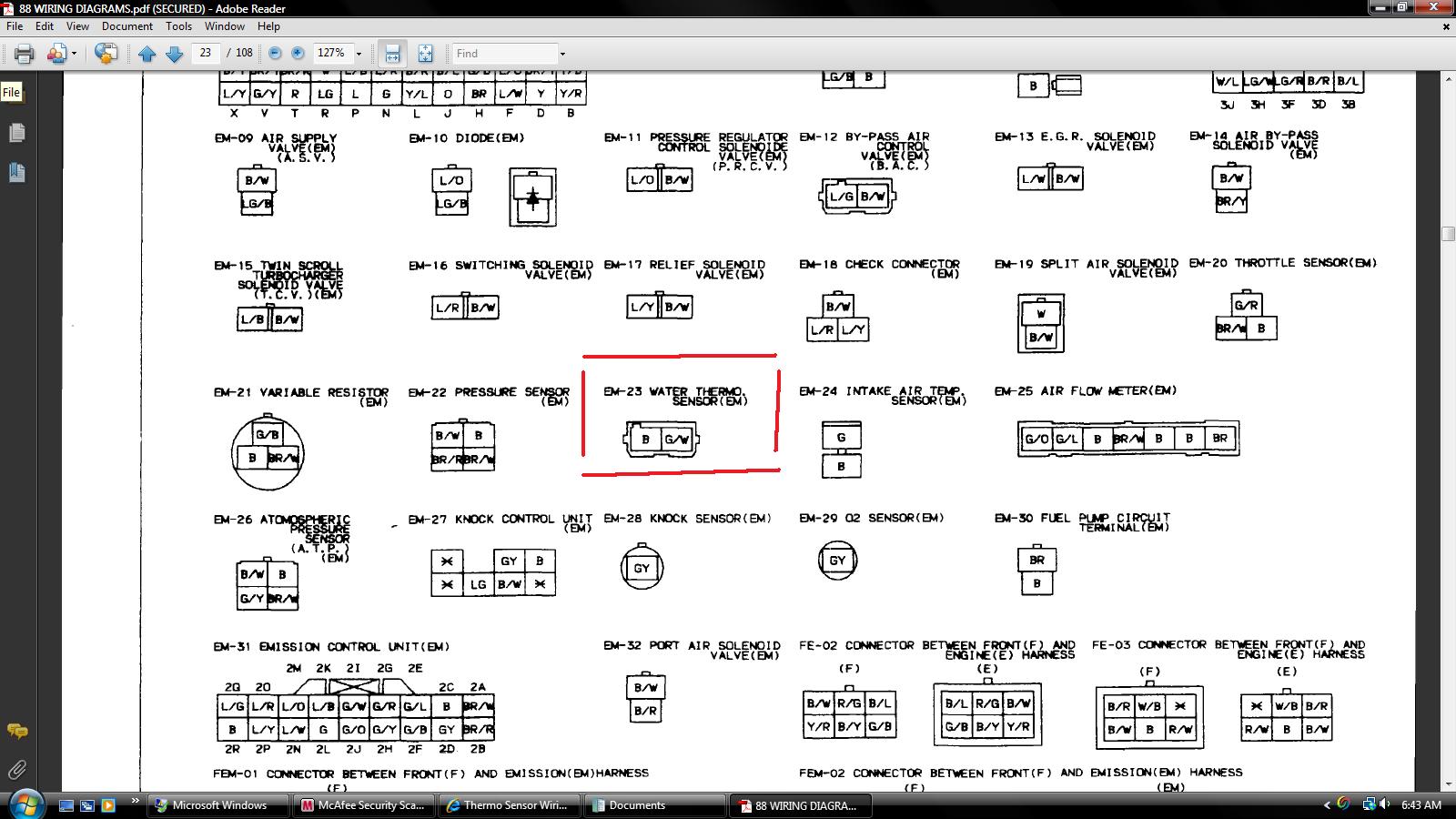

But if you don't trust that answer look at the attached jpg out of the manual that shows the plug from THE WIRE side of the plug and ape it.
Attached Thumbnails Thermo Sensor Wiring Help-water-thermo-sensor.jpg
Reply
0
Old Jan 23, 2011 | 10:30 AM
Share
  #4
JK5S's Avatar
JK5S
Thread Starter
A Never Ending Project
iTrader: (2)

Joined: Jan 2011
Posts: 205
Likes: 0
From: Salt Lake City
Originally Posted by HAILERS2
It matters not which pin which wire goes to.

But if you don't trust that answer look at the attached jpg out of the manual that shows the plug from THE WIRE side of the plug and ape it.
I appreciate that
