T66 Manifold
Some pictures of my stainless manifold.
http://www.pipe-arts.com/13b1.html
Don´t flame me if you don´t like it!
I´m a sensitive guy...
http://www.pipe-arts.com/13b1.html
Don´t flame me if you don´t like it!
I´m a sensitive guy...
01-29-05, 06:58 PM
#4
Full Member
Thread Starter
Join Date: Feb 2002
Location: sweden
Posts: 146
Likes: 0
Received 0 Likes
on
0 Posts
The total cost would be around $1000 for it! But then the flanges are inconell and the pipes are 2337 which would keep up good against the heat...
i´m using a Turbonetics T66 so with this design it will be tight between the compressor housing and the LIM! But we have test it and it´ll fit!
i´m using a Turbonetics T66 so with this design it will be tight between the compressor housing and the LIM! But we have test it and it´ll fit!
01-29-05, 07:14 PM
#5
Lives on the Forum
Wow, Inconel and SS321 (I had to look up what "2337" is)!
You are crazy!
How thick are those flanges???
I don't think they will ever warp!
Nice job!
Good luck!
-Ted
You are crazy!
How thick are those flanges???
I don't think they will ever warp!
Nice job!
Good luck!
-Ted
Trending Topics
01-29-05, 10:52 PM
#10
N/A is teh WIN!
Join Date: Jan 2005
Location: Center of your palm, MI
Posts: 165
Likes: 0
Received 0 Likes
on
0 Posts
holy hell! inconel isn't cheep expexially in thick weld els like that, much props!
btw are you going to run a TiAL 40mm wastegate on there or something different, it kinda looks like a 40mm flange
btw are you going to run a TiAL 40mm wastegate on there or something different, it kinda looks like a 40mm flange
01-30-05, 02:12 AM
#13
I live in an igloo
Join Date: Jul 2004
Location: calgary alberta
Posts: 2,546
Likes: 0
Received 0 Likes
on
0 Posts
Damn, you should have put the wastegate just underneath the turbo flange, instead of just on one of the divided pipes.
Other than that, it looks absolutley beautifull! wow!
Other than that, it looks absolutley beautifull! wow!
01-30-05, 06:02 AM
#14
Junior Member
Join Date: Oct 2004
Location: New Zealand
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
nice manifold, wish i could use something like that on mine, but its right hand drive, no way a wastegate would fit where its positioned on that with the steering wrack on that side.
01-30-05, 07:32 AM
#16
Full Member
Thread Starter
Join Date: Feb 2002
Location: sweden
Posts: 146
Likes: 0
Received 0 Likes
on
0 Posts

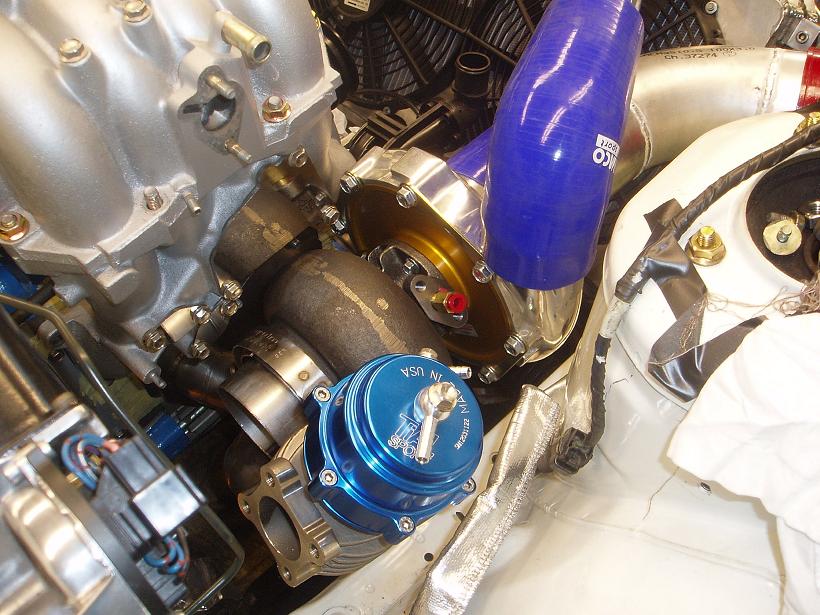

Thanks guys! The flanges are 15mm thick, and the wg flange is for a
46mm Tial. The runners are 54x2 OD.
The main reason that I placed the wg up there is because I´ll be using
a small fan to take air from where the cruise control used to be, to cool
the wg!
I´ll take some pics of it in the car...
46mm Tial. The runners are 54x2 OD.
The main reason that I placed the wg up there is because I´ll be using
a small fan to take air from where the cruise control used to be, to cool
the wg!
I´ll take some pics of it in the car...
I clicked, cut pasted, typed, typed without the /13b1.html.. notta......
02-25-05, 02:19 PM
#23
Full Member
Thread Starter
Join Date: Feb 2002
Location: sweden
Posts: 146
Likes: 0
Received 0 Likes
on
0 Posts

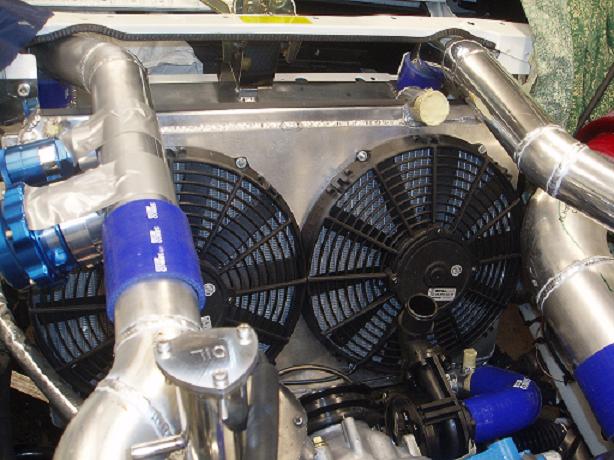

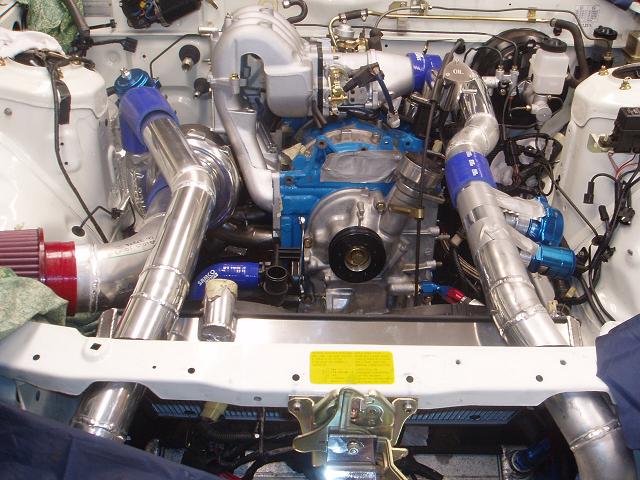

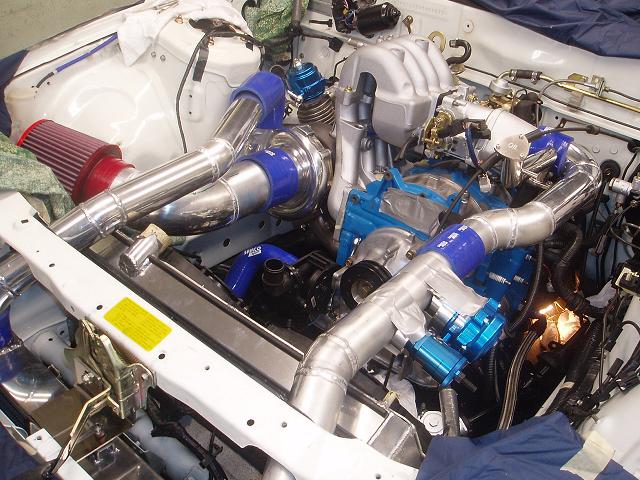

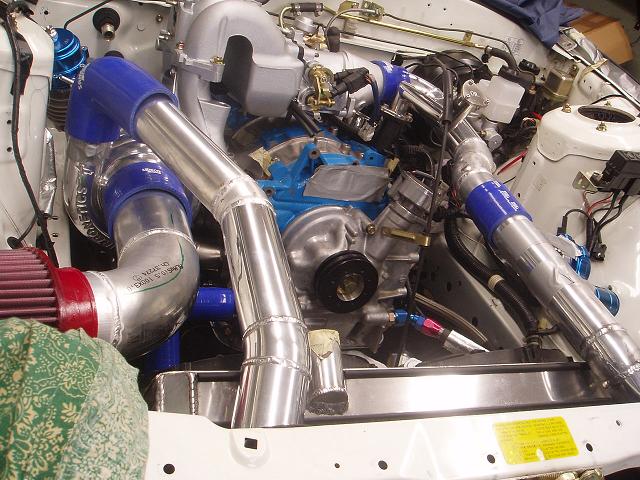

Thanks alot! I´m pretty satisfied my self. I´m now waiting for summit to ship my
fuel components and my "tool shop friend" to manufacture the plate for the waterpump and the holder for the alternator then I´m almost done...
I´ll post more pics as the bay fills up!
fuel components and my "tool shop friend" to manufacture the plate for the waterpump and the holder for the alternator then I´m almost done...
I´ll post more pics as the bay fills up!
02-25-05, 03:24 PM
#24
Carter 2.0
That is good work!!!
Besides, Who would flame that????
Did you fab it yourself?? If so, how much for another?? w/o the exotic material. Could you polish the inside or would that make a difference??
Besides, Who would flame that????
Did you fab it yourself?? If so, how much for another?? w/o the exotic material. Could you polish the inside or would that make a difference??
Last edited by jhammons01; 02-25-05 at 03:29 PM.
02-25-05, 03:29 PM
#25
I'm awesome!
Join Date: Apr 2004
Location: Greenville, SC & Atlanta, GA & Clovis, NM
Posts: 1,311
Likes: 0
Received 0 Likes
on
0 Posts
how much hp are you aiming for...hope the rest of the car looks as good as that engine bay...saved those pics also, very sick setup.
