supernow block off plates

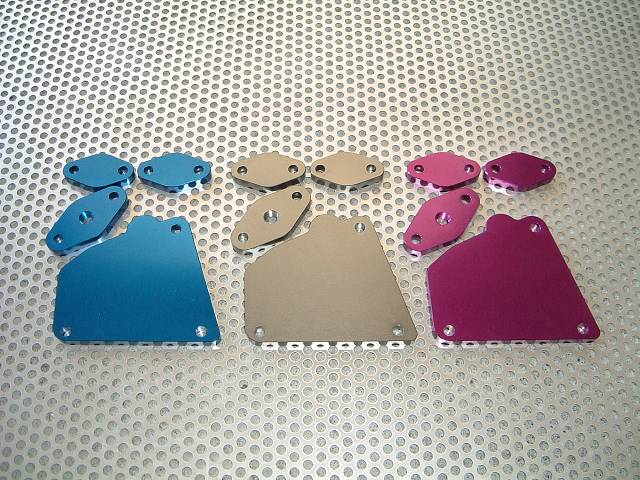

I have a question about the supernow block off plates guys. The one in the middle shown in the picture, what is it for? It has an 1/8 pt hole in the middle. Is it to attach some intake sensor maybe?
Attached Thumbnails supernow block off plates-20051109131356.jpg
Old 02-24-09, 02:39 PM
  #2
Saiga-12 Power!

iTrader: (4)

Juiceh's Avatar

Join Date: Oct 2004
Location: N of Chicago
Posts: 4,384
Likes: 0
Received 0 Likes on 0 Posts
Could be for the Coolant passage to the turbo on the JDM LIM. Looks too big though. I installed block off plates on a JDM manifold last week. I think that's the plate that goes on the UIM actually. The 2 smaller ones look more like the coolant and split air pipe block off plates. Maybe they put a hole there as a place for MAP readings? Not sure if thats a great location for it though, never seen anyone tap there.

Last edited by Juiceh; 02-24-09 at 02:48 PM.
Old 02-24-09, 07:26 PM
  #3
rotorhead

iTrader: (3)

arghx's Avatar

Join Date: Aug 2004
Location: cold
Posts: 16,184
Received 431 Likes on 264 Posts
On my s4 T2 LIM the coolant passageway for the turbo used a split-air blockoff plate. The two blockoff plates are exactly the same. On my new s5 JDM LIM it looks like the coolant feed is the same shape.
Old 02-25-09, 06:09 AM
  #4
Senior Member

Thread Starter
iTrader: (4)

RHDturboII's Avatar

Join Date: Aug 2001
Location: Cyprus
Posts: 272
Likes: 0
Received 0 Likes on 0 Posts
When I got the plates I thought they were going to send me the obvious three ones but they were 4 and I thought I should ask if anybody is using them on there fc. I guess I will find out were it goes when I will install them :-) On my other TII that has block off plates, (different company) i did not use something like this. I got a little confused when I saw the one, with what it looks like 1/8 PT hole thread. I thought maybe is to install a nipple with a vaccum hose attached to get some vaccum readings. What about the bac valve? What are the dimensions there? Maybe I will check one of my bac valves when I get home to see...
