can anyone give me these dimensions, need a new radiator but it cant be any bigger than stock, has to clear my 1J



no ones got a stock s4 tII rad lying around?



...

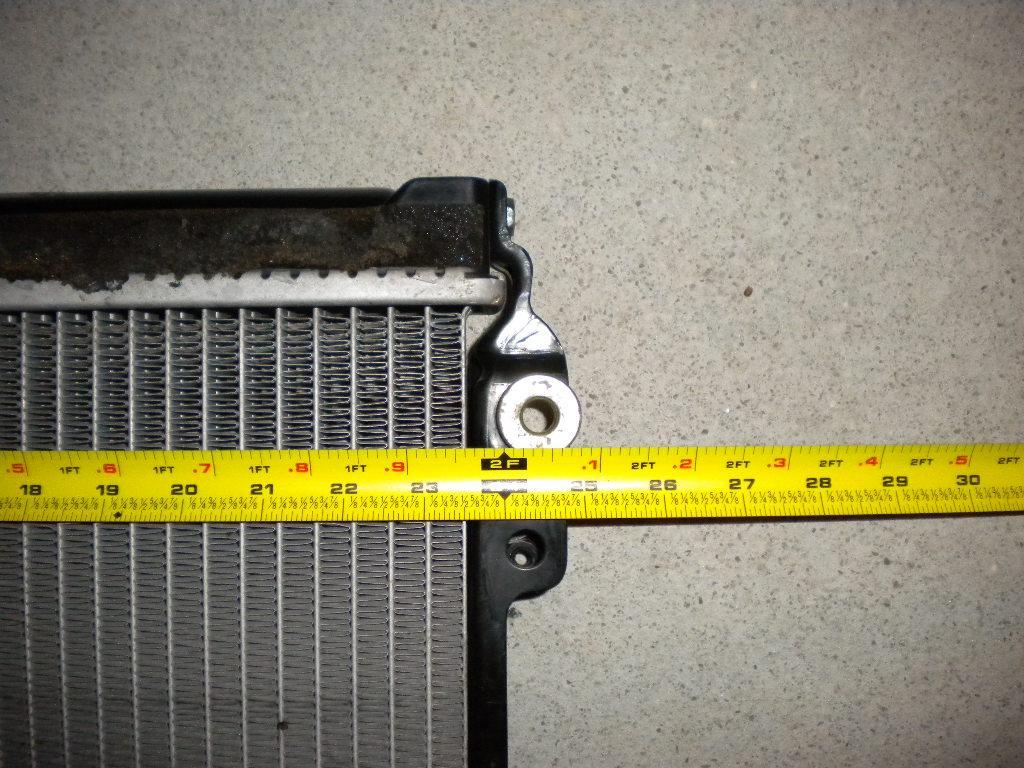

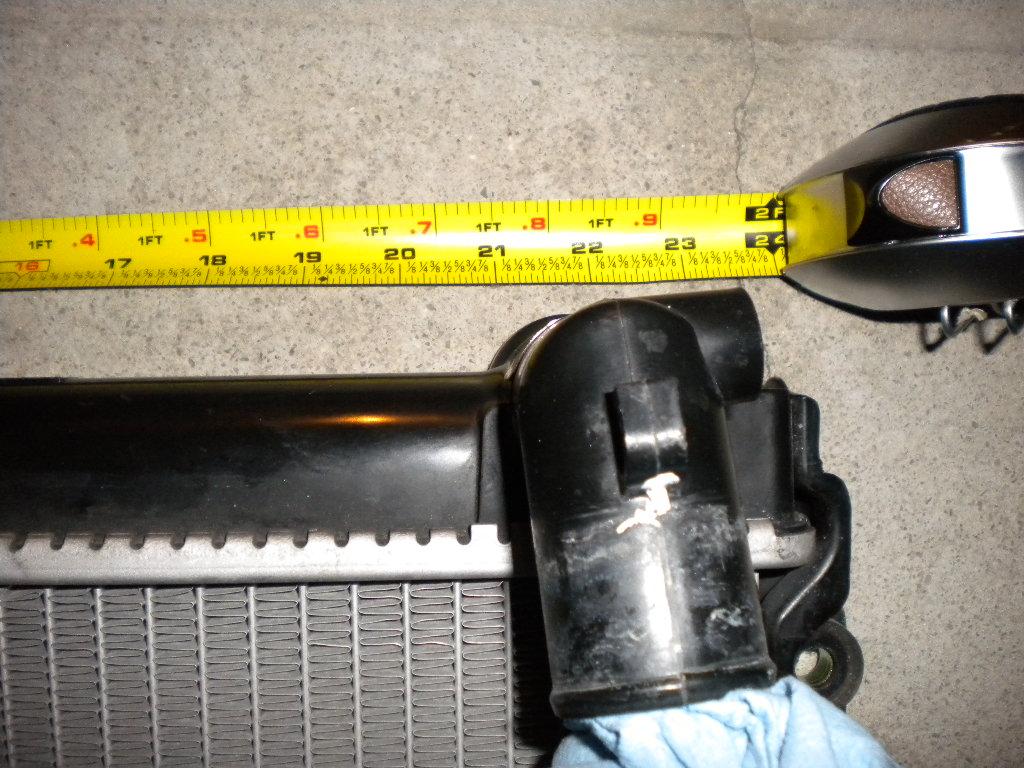

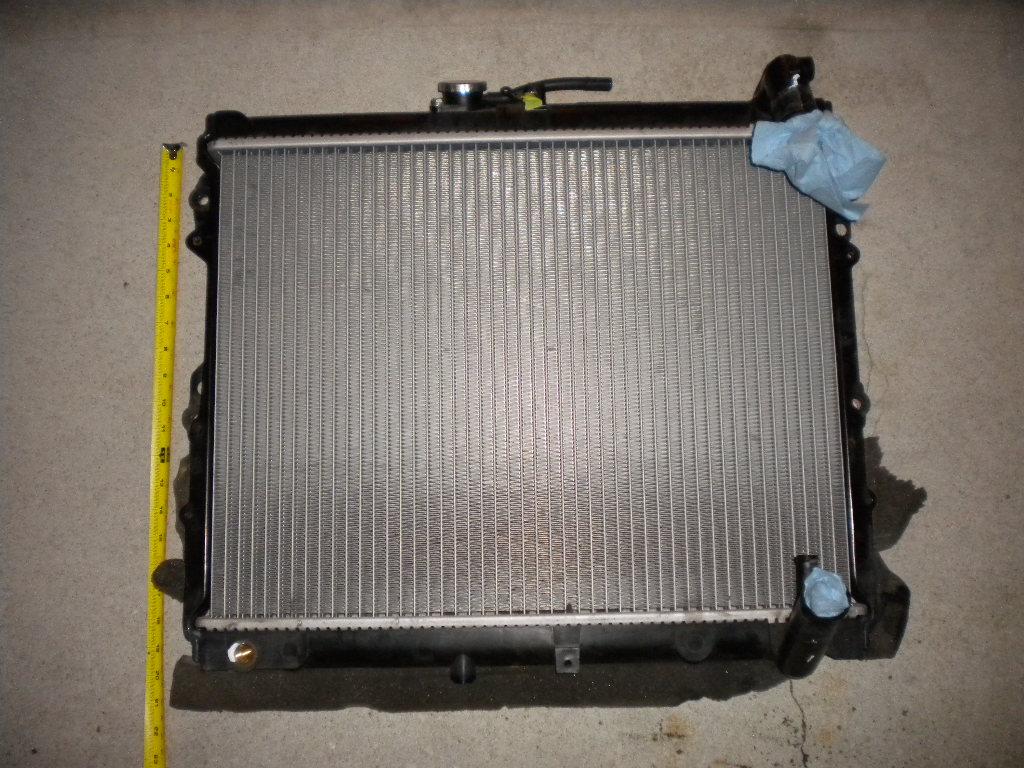

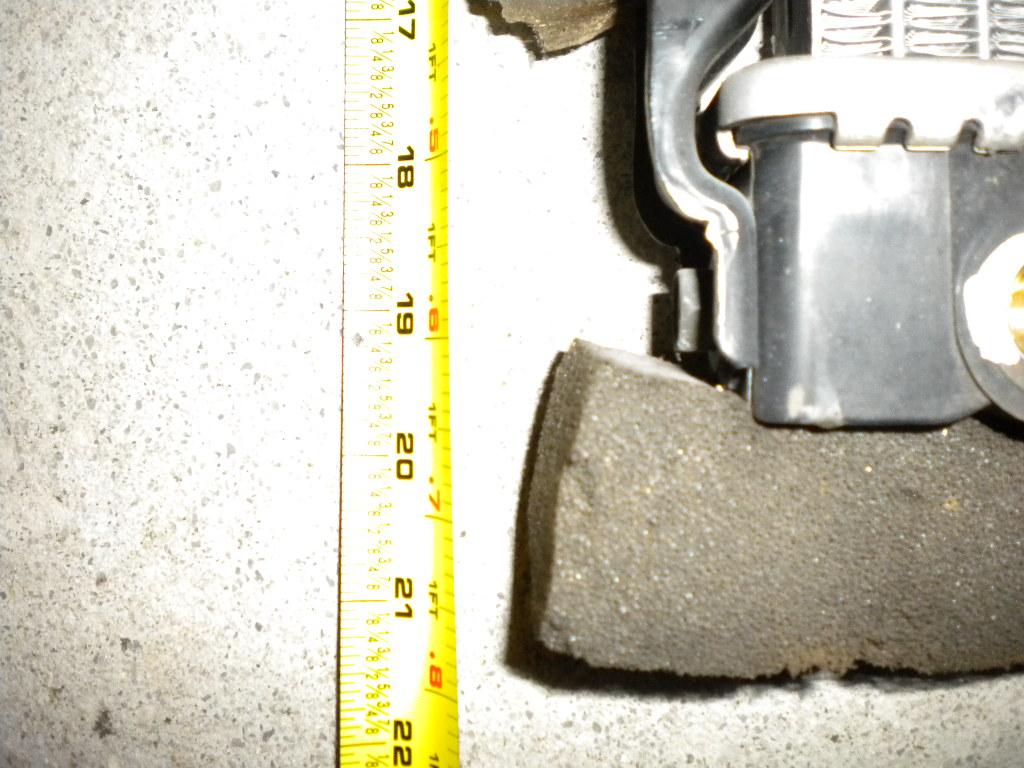

Here's a stock radiator I removed from my 10AE last weekend. There's lots of measurements but I only put overall. Hope this helps.



grab a koyo, they are stock replacements.

that 10ae radiator is super clean.



thanks for the pics, they help a great deal. I'm trying to find an aluminum radiator that is no bigger than the stock s4 rad. in my car. the L6 needs a little more cooling. at this point it looks like im gettin a koyo s4 rad as its the right size and the hoses are positioned perfectly for a 1J.



I installed my S4 koyo a couple weeks ago and its the exact same, just thicker and has an extra radiator cap. If you need any more measurements I still have the stock rad laying around.



how much thicker is the koyo than stock?



Stock looks like ~2.25 inches thick. Not sure about koyo.
