Stock Clarion Headunit connections
06-22-07, 07:20 PM
#1
Mazdaspeeding
Thread Starter
iTrader: (1)
Join Date: Feb 2006
Location: Sacramento
Posts: 331
Likes: 0
Received 0 Likes
on
0 Posts
Stock Clarion Headunit connections

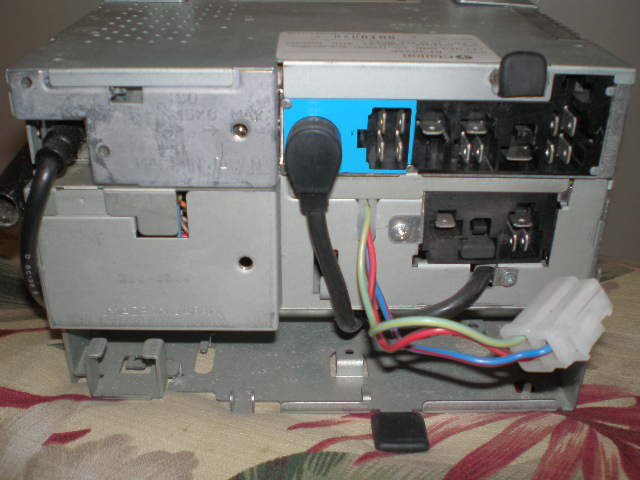

I got this headunit from a forum member and checked for a schematic of the connections in the back of the headunit. It isn't labeled in the back, and the faq only lists the wire colors so I took a picture hoping someone might know off hand what each connection is used for in the back.
