Still hunting down driveline slack
Ever since I've had this car, I've had a problem with driveline slack. The front diff mount was broken so I swapped in a solid one. The trans mounts were shot, so I swapped in new OEM ones. I also swapped my old motor mounts for solid ones while the engine was out last summer.
So after all that, I assumed that the U-Joints were on their way out because I still had a decent amount of slack. I took the driveshaft out today and it turns out that the U-Joints are in almost excellent condition. There was very very very little play in the front one. Maybe 0.5 degrees or so and the rear was fine.
But while I was taking the driveshaft out, I noticed that there was maybe 6-8 degrees of play in the diff. It's the stock NA, non-LSD. How many degrees of play is "in spec"?
The slack is most noticible(sp?) when you wind out 1st and push in the clutch. There seems to be 2 whirring noises that come as soon as the clutch goes in. Like a quick "whirrwhirr". As best as I can tell with the car being loud as hell, it is coming from the shifter area, what I thought to be a bad front U-Joint.
Any thoughts?
So after all that, I assumed that the U-Joints were on their way out because I still had a decent amount of slack. I took the driveshaft out today and it turns out that the U-Joints are in almost excellent condition. There was very very very little play in the front one. Maybe 0.5 degrees or so and the rear was fine.
But while I was taking the driveshaft out, I noticed that there was maybe 6-8 degrees of play in the diff. It's the stock NA, non-LSD. How many degrees of play is "in spec"?
The slack is most noticible(sp?) when you wind out 1st and push in the clutch. There seems to be 2 whirring noises that come as soon as the clutch goes in. Like a quick "whirrwhirr". As best as I can tell with the car being loud as hell, it is coming from the shifter area, what I thought to be a bad front U-Joint.
Any thoughts?
#2
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Whirring noise from the shifter area = transmission.
Common for the input and/or cluster shaft bearings to wear out, causing the noise. Sometimes synthetic transmission oil helps, sometimes not. In my case I had a noisy transmission for YEARS and put over 150K on the car until I finally killed the transmission due to lack of oil (snapped input shaft because the rear seal let go and dumped the oil onto the highway).
As for the diff, I don't know what the exact spec is. Probably in the factory service manual (FAQ).
Common for the input and/or cluster shaft bearings to wear out, causing the noise. Sometimes synthetic transmission oil helps, sometimes not. In my case I had a noisy transmission for YEARS and put over 150K on the car until I finally killed the transmission due to lack of oil (snapped input shaft because the rear seal let go and dumped the oil onto the highway).
As for the diff, I don't know what the exact spec is. Probably in the factory service manual (FAQ).
#3
Hmm... maybe this has something to do with it:

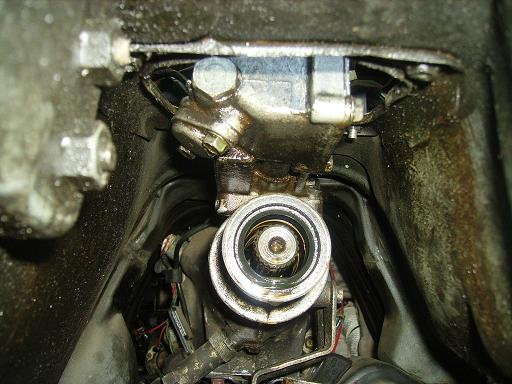

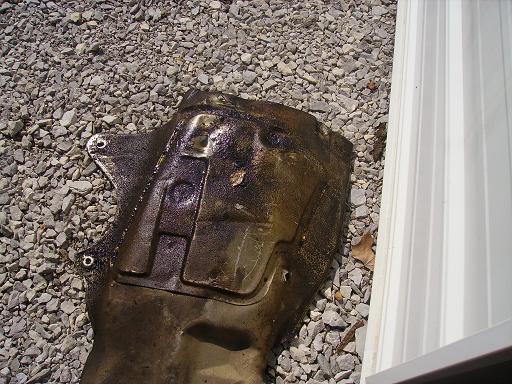

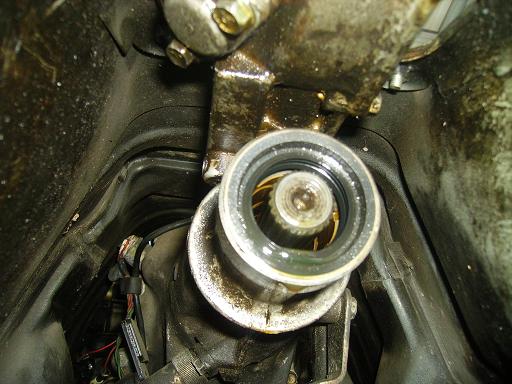

I took off the exaust heat shield to get the driveshaft back in, and noticed the whole area was covered in relatively young looking tranny fluid. I assume that I caught my rear tranny seal on its way out, but it almost seems that the fluid is coming from the shifter area above the tailshaft. I know that the fluid probably hit the front U-Joint and flung fluid around everywhere though, so it's hard to tell.
I took off the exaust heat shield to get the driveshaft back in, and noticed the whole area was covered in relatively young looking tranny fluid. I assume that I caught my rear tranny seal on its way out, but it almost seems that the fluid is coming from the shifter area above the tailshaft. I know that the fluid probably hit the front U-Joint and flung fluid around everywhere though, so it's hard to tell.
#4
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Replace the seal, fill the transmission with oil and then see if the noise goes away. But likely the damage to the transmission is already done and you'll be stuck with the noise unless you get it rebuilt. Same thing happened to me.
Trending Topics
#8
Radioactive Rotary Rocket
Join Date: Aug 2005
Location: Minneapolis, MN
Posts: 1,061
Likes: 0
Received 0 Likes
on
0 Posts
What is this slack in the diff you speak of? Is it like the slack in the rotation of the driveshaft before it engages the half shafts? Or does the diff actually move around and have slack in it?
#9
I'm talking about the rotation of the diveshaft before it "hooks up" and actually starts to turn the wheels. The diff is solidly mounted and is not moving what-so-ever. CV joints are also good.
I haven't been under the car for a couple days, but I will sometime tomorrow.I'll get a degree of play measurement for the diff and post it up againt factory specs, (which I still haven't bothered to look for).
I haven't been under the car for a couple days, but I will sometime tomorrow.I'll get a degree of play measurement for the diff and post it up againt factory specs, (which I still haven't bothered to look for).
#10
Eats, Sleeps, Dreams Rotary
iTrader: (1)
Originally Posted by White87FC
I'm talking about the rotation of the diveshaft before it "hooks up" and actually starts to turn the wheels. The diff is solidly mounted and is not moving what-so-ever. CV joints are also good.
I haven't been under the car for a couple days, but I will sometime tomorrow.I'll get a degree of play measurement for the diff and post it up againt factory specs, (which I still haven't bothered to look for).
I haven't been under the car for a couple days, but I will sometime tomorrow.I'll get a degree of play measurement for the diff and post it up againt factory specs, (which I still haven't bothered to look for).
#11
2nd Gen. Enthusiast
Join Date: Feb 2006
Location: New Hampshire
Posts: 388
Likes: 0
Received 0 Likes
on
0 Posts
the leak could be coming from the shifter itself. i just pulled my shifter out the outher day and found that the small rubber boot that mounts on the retainer ring was torn, allowing gear oil to rise up out by the shifter.
