devdog1one

I have searched and am unable to indentify by the online or my personal FSM if the starter wire goes to the stud with or without the little jumper wire.

Car is 87 TII

Thanx

Michael

NZConvertible

The starter wire goes from the battery positive terminal straight to the starter solenoid.

Project84

you talking about the small wire that comes from the ignition switch to the tab on the starter?

nopistons

The thick cable from the battery goes to the solenoid stud without the "little jumper wire." If you hook the cable to the stud with the jumper, the starter will spin ALL THE TIME, even if the ignition key is in your pocket.

Apathy

Yep, as nopistons said. hook the thick cable from the battery up to the free stud, or else you'll frig your starter.

felixwankel88

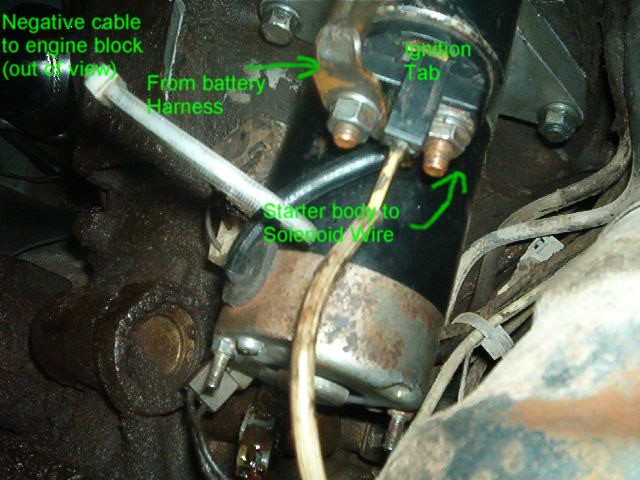

thanx for that pic i needed it too so the battery harness wire that goes to the starter is positive rite? also can u get a pic of there the neg wire is


thanks

dustin

Crionics

Negative just goes to the long bolt holding the starter to the tranny.

felixwankel88

ok the bolt that goes in though the starter that has a nut on it, not the bolt that just threds into the tranny rite??

Crionics

That's the one

felixwankel88

thanks crionics... i had the thing custom wired and could just not figure it out now i should be able to hopefully
