starter issue- video
#1
starter issue- video
Finally got the car to do it when I video'd
doesnt matter if its summer or winter but in this case the car has been in my unheated detached garage and hasnt been started in about a month, will also do it if im driving the same day
batter relocated to trunk, 0 gauge to block under hood, 4 gauge right to battery
does same with current full sized 800cca batter that it did with 1000cca, car is always plugged into battery tender
doesnt matter if its summer or winter but in this case the car has been in my unheated detached garage and hasnt been started in about a month, will also do it if im driving the same day
batter relocated to trunk, 0 gauge to block under hood, 4 gauge right to battery
does same with current full sized 800cca batter that it did with 1000cca, car is always plugged into battery tender
#4
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
Try running a battery cable to the trans or the Bolt at the starter.(negative)?.
With a "pure source" from the battery(negative from battery to Starter case and Postive FROM battery to Starter) there isn't too much to figure out if there is something else wrong.
I did use the stock Engine fuse block but also had the battery feed the starter when I relocated the battery.
With a "pure source" from the battery(negative from battery to Starter case and Postive FROM battery to Starter) there isn't too much to figure out if there is something else wrong.
I did use the stock Engine fuse block but also had the battery feed the starter when I relocated the battery.
#6
1308ccs of awesome
iTrader: (9)
mine used to do that all the time, I went through a few starters and then finally wired up the starter trigger with a relay and it fixed it.
basically the 12V to the starter from the key has to go through a lot of things and it looses voltage this combined with an aging key cylinder not making great contact causes the problem.
If you use the starter trigger instead as a trigger for a relay and give the starter straight battery voltage from the positive post on the starter it's fine.
Stole this picture from a different thread to make it more clear:
Another Click Start Thread!! - RX7Club.com
pettit racing makes a kit... but it's really just a relay:
http://shop.pettitracing.com/starter...-p-120110.html
basically the 12V to the starter from the key has to go through a lot of things and it looses voltage this combined with an aging key cylinder not making great contact causes the problem.
If you use the starter trigger instead as a trigger for a relay and give the starter straight battery voltage from the positive post on the starter it's fine.
Stole this picture from a different thread to make it more clear:
Another Click Start Thread!! - RX7Club.com
pettit racing makes a kit... but it's really just a relay:
http://shop.pettitracing.com/starter...-p-120110.html
The following users liked this post:
KNONFS (12-31-17)
#7
Sharp Claws
iTrader: (30)
i sell them for half what pettit does, it's just a basic relay with the proper terminations. actually i think mine is nicer since i use weatherproofed terminals.
although this may be 2 problems, your starter sounds like poop and is turning slow for a new starter with heavy gauge wiring and battery, the screeching noise is a little concerning. the click click vroom symptom is half the time due to failing relays and high resistance in the rather overly complex starter circuit. the booster relay only fixes the latter.
although this may be 2 problems, your starter sounds like poop and is turning slow for a new starter with heavy gauge wiring and battery, the screeching noise is a little concerning. the click click vroom symptom is half the time due to failing relays and high resistance in the rather overly complex starter circuit. the booster relay only fixes the latter.
Last edited by RotaryEvolution; 11-28-16 at 11:07 PM.
Trending Topics
#10
Eats, Sleeps, Dreams Rotary
iTrader: (1)
I say starter. Have seen many remanufactured starters cause a problem, so unusual for a new starter, but you can always try and
jump the starter terminals with a screwdriver, and try the following:
To check the starter solenoid or relay connections, connect the meter positive lead to positive battery terminal on the solenoid, and the meter negative lead to the starter motor terminal. Crank the engine and note the reading. A good connection should have a voltage drop of 0.2 volts or less.
jump the starter terminals with a screwdriver, and try the following:
To check the starter solenoid or relay connections, connect the meter positive lead to positive battery terminal on the solenoid, and the meter negative lead to the starter motor terminal. Crank the engine and note the reading. A good connection should have a voltage drop of 0.2 volts or less.
#11
i have a new key cylinder in the car, which I replaced unrelated to this. It did not change the behavior at all
Think ill do a new starter first and see what happens
its funny because it never did it prior to the swap and with everything basically stock, but that was also 10 years ago
Think ill do a new starter first and see what happens
its funny because it never did it prior to the swap and with everything basically stock, but that was also 10 years ago
Last edited by Rob XX 7; 11-29-16 at 12:15 PM.
#16
mine used to do that all the time, I went through a few starters and then finally wired up the starter trigger with a relay and it fixed it.
basically the 12V to the starter from the key has to go through a lot of things and it looses voltage this combined with an aging key cylinder not making great contact causes the problem.
If you use the starter trigger instead as a trigger for a relay and give the starter straight battery voltage from the positive post on the starter it's fine.
Stole this picture from a different thread to make it more clear:
Another Click Start Thread!! - RX7Club.com
pettit racing makes a kit... but it's really just a relay:
RX7 Starter Booster
basically the 12V to the starter from the key has to go through a lot of things and it looses voltage this combined with an aging key cylinder not making great contact causes the problem.
If you use the starter trigger instead as a trigger for a relay and give the starter straight battery voltage from the positive post on the starter it's fine.
Stole this picture from a different thread to make it more clear:
Another Click Start Thread!! - RX7Club.com
pettit racing makes a kit... but it's really just a relay:
RX7 Starter Booster
lets add this text for anyone else skimming through so they have all info in one spot:

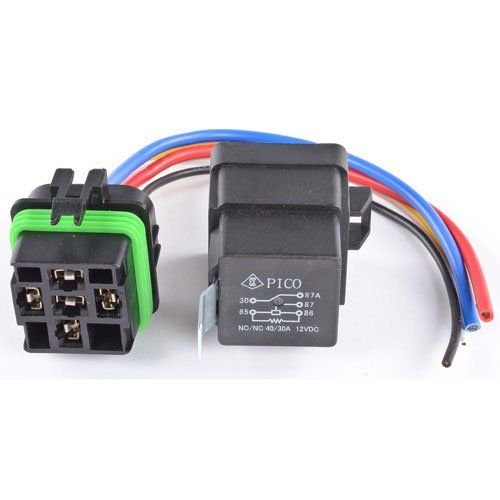

"The relay has four terminals labeled 85, 86, 87 and 30. In the above drawing connect the black (ground) wire to 85, yellow to 86, green to 87 and red to 30"
#18
I guess I will try the relay thing first, i start the car up every few weeks when I remember so it will be a good test
#19
Rotary $ > AMG $
iTrader: (7)
i might have a window of opportunity around christmas to bring my car to my shop and mess with it, but after that it gets pushed off to the side of my small garage so I can fit my snow blower past it and thats where it will likely sit until april-may
I guess I will try the relay thing first, i start the car up every few weeks when I remember so it will be a good test
I guess I will try the relay thing first, i start the car up every few weeks when I remember so it will be a good test
