Solenoid resister??
Solenoid resister??
03-09-07, 08:16 PM
#4
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Couldn't be more wrong...
The solenoid resistor is inline with the low-impedance injectors fitted to 86-87.5 FC's, to limit the current through the ECU injector drivers. I have no idea why Mazda called it that, because it's not a solenoid, or even vaguely related to one.
The solenoid resistor is inline with the low-impedance injectors fitted to 86-87.5 FC's, to limit the current through the ECU injector drivers. I have no idea why Mazda called it that, because it's not a solenoid, or even vaguely related to one.
03-10-07, 02:27 AM
#5
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
I thought I said *end of discussion*. Darn
How about......It's the resistors for the injector solenoids? Therefore Solenoid Resistor package.
Somewhere in the middle of 1987 Mazda stopped using a solenoid resistor package and just upped the resistance in the fuel injectors themselves. Went from a ressitance of 2-3 ohms in the resistors themselves to over 10 ohms in the resistors themselves.
In other words, the 88 cars did not have a solenoid resistor. End of discussion.
How about......It's the resistors for the injector solenoids? Therefore Solenoid Resistor package.
Somewhere in the middle of 1987 Mazda stopped using a solenoid resistor package and just upped the resistance in the fuel injectors themselves. Went from a ressitance of 2-3 ohms in the resistors themselves to over 10 ohms in the resistors themselves.
In other words, the 88 cars did not have a solenoid resistor. End of discussion.
Trending Topics
03-10-07, 04:19 PM
#10
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by HAILERS
I thought I said *end of discussion*. Darn
How about......It's the resistors for the injector solenoids? Therefore Solenoid Resistor package.
03-10-07, 08:48 PM
#11
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

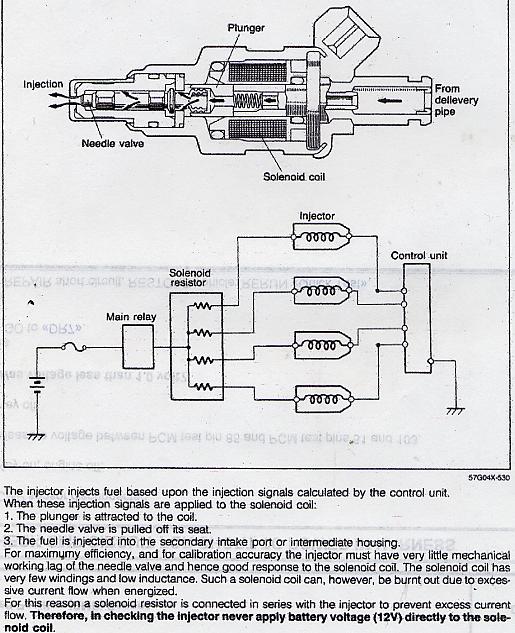

The VERY LAST WORD ON THIS SUBJECT supplied by the NZCONVERTIBLE thru the trainging manuals he posted some time ago., See attached jpg and OR read the book.
And we might take note that Casey Stoner took the fight to Valentino Rossi and won the MotoGP of Qatar with ease. He was just playing with Rossi.
http://wombat.sevarg.net/RX7/RX-7_Training_Manuals/
And we might take note that Casey Stoner took the fight to Valentino Rossi and won the MotoGP of Qatar with ease. He was just playing with Rossi.
http://wombat.sevarg.net/RX7/RX-7_Training_Manuals/
Last edited by HAILERS; 03-10-07 at 08:56 PM.
