service bag over ECU

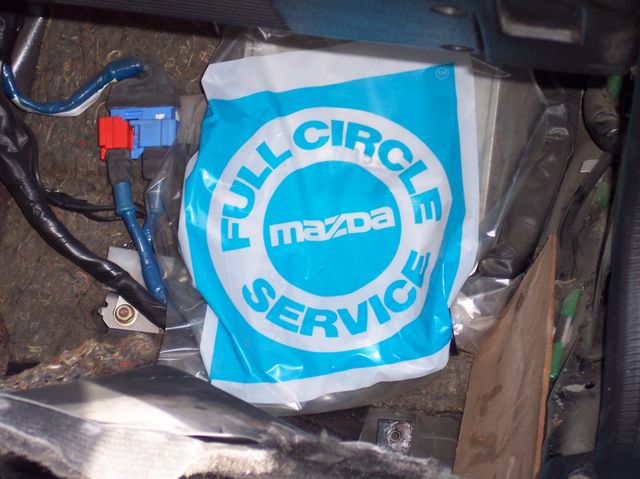

i finally got around to pulling up my carpet to check some wiring at the ECU.
I was pretty surprised to find this:
Attached Thumbnails service bag over ECU-md_ecu-002.jpg   service bag over ECU-md_ecu-003.jpg

Last edited by VashtheStampede; May 26, 2006 at 04:37 PM.
Reply
Old May 26, 2006 | 05:29 PM
  #2
Carzy Driver's Avatar
Law Breaker
Tenured Member: 15 Years

Joined: Oct 2005
Posts: 3,333
Likes: 0
From: S.F. Bay Area, California 510
maybe it had wet carpet before...
Reply
Old May 26, 2006 | 08:25 PM
  #3
NZConvertible's Avatar
I'm a boost creep...
Tenured Member 05 Years

Joined: Jan 2002
Posts: 15,608
Likes: 8
From: Auckland, New Zealand

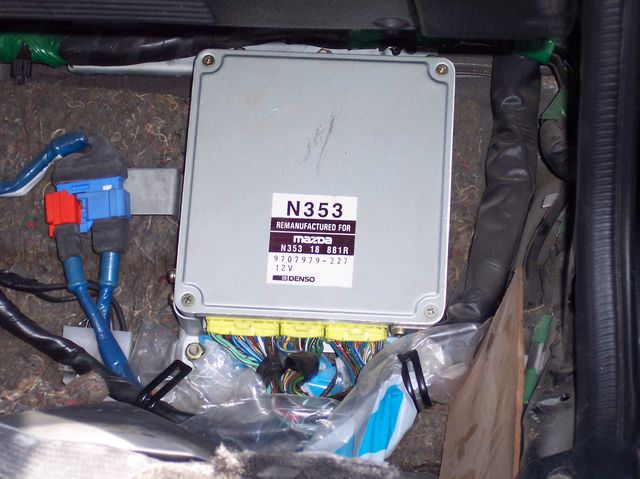

That blue thing on the left is far more interesting than the plastic bag...
Reply
Old May 26, 2006 | 08:27 PM
  #4
lupin's Avatar
Rupanrx
Tenured Member 10 Years
iTrader: (3)

Joined: May 2005
Posts: 853
Likes: 0
From: MASSHOLE
Originally Posted by NZConvertible
That blue thing on the left is far more interesting than the plastic bag...
Do you have any idea what that is?

lol I didn't notice it until I made the picture big.
Reply
Old May 26, 2006 | 08:35 PM
  #5
adrock3217's Avatar
Boost in..Apex seals out.
Tenured Member 10 Years

Joined: Nov 2003
Posts: 1,931
Likes: 0
From: Maryland, 21794
Follow the wires...it looks like an AFM-style plug..which is..odd...
Reply
Old May 27, 2006 | 12:00 AM
  #6
Wizz's Avatar
Senior Member
Tenured Member 15 Years

Joined: Mar 2004
Posts: 458
Likes: 0
From: Cleveland
Originally Posted by NZConvertible
That blue thing on the left is far more interesting than the plastic bag...

Air bag wiring.
Reply
Old Jun 5, 2006 | 12:20 AM
  #7
bigdv519's Avatar
IFO Forced Induction Slo
Tenured Member 15 Years
iTrader: (3)

Joined: Mar 2004
Posts: 1,315
Likes: 0
From: Houston
So far, i've come to the conclusion that that "blue thing" is from an auto S5 vert. I had 2 auto S5 verts and both had these wires. Big blue clips, and blue wire loom. The wires also ran above the passenger side wheel well cover.
Reply
Old Jun 6, 2006 | 06:25 AM
  #8
VashtheStampede's Avatar
Thread Starter
Full Member
Tenured Member 10 Years

Joined: Aug 2001
Posts: 247
Likes: 0
From: KC
well it just happens to be an s5 auto vert
i don't plan on keeping it that way, though...
