Saving UIM with a broken ear!
#1
Saving UIM with a broken ear!

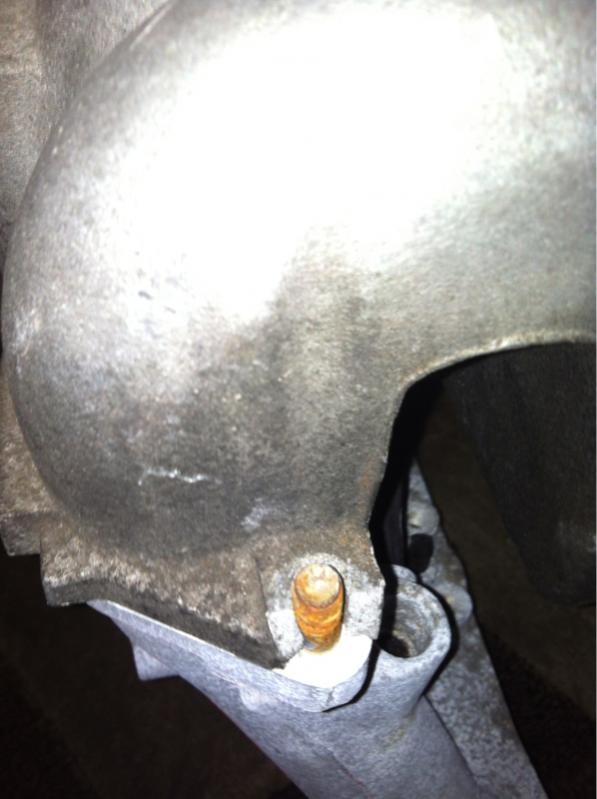

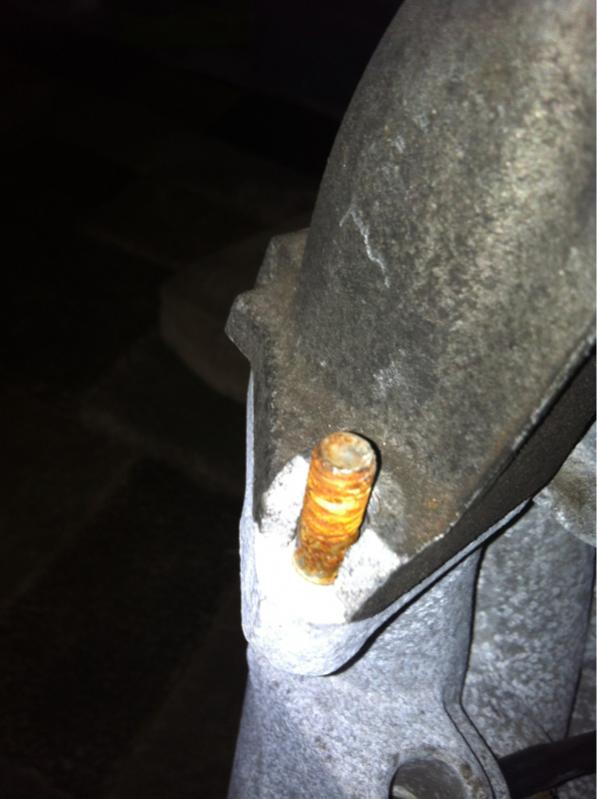

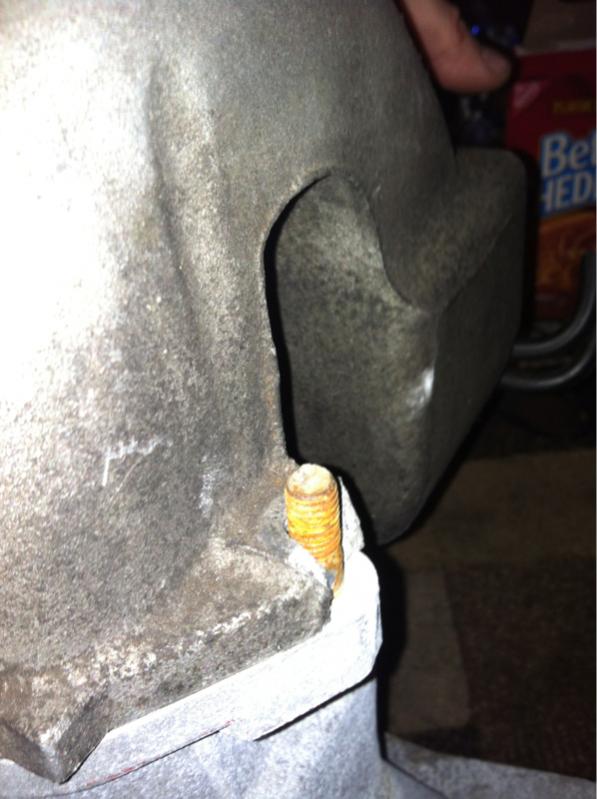

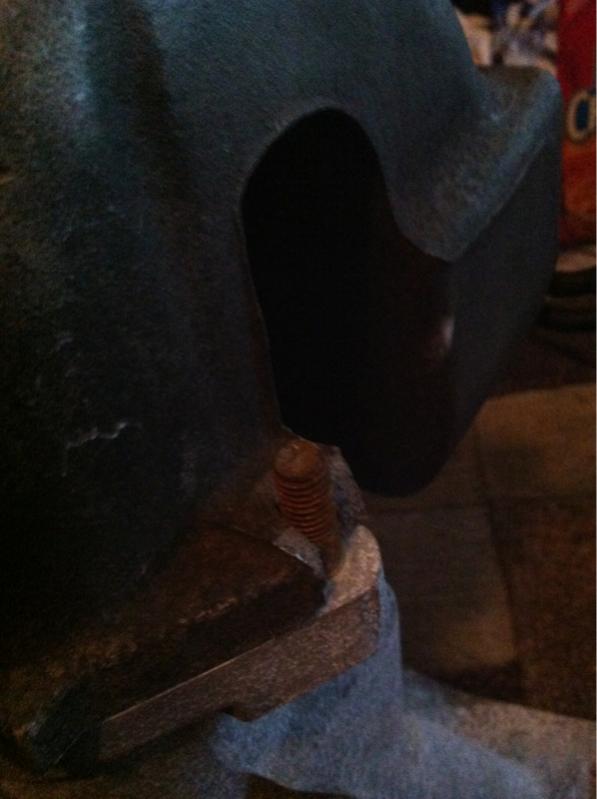

Do you guys see any way to save this UIM? I feel like I could put something on the other side that's missing so the nut tightens down evenly.
Maybe a washer?
Plan to sandblast/powder coat this upper and lower then clean all the threads with a tap/die.
Obviously a vacc leak could would be the main worry.
What do you think?
Maybe a washer?
Plan to sandblast/powder coat this upper and lower then clean all the threads with a tap/die.
Obviously a vacc leak could would be the main worry.
What do you think?
#2
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
your plans are to ..What?.....with that???
Jeesh man!..spend 40 bucks and get another one.
If you just plan to run it,then ya,I can see replacing that stud with a BOLT.You can grind a little more off to get a washer to sit in there.
But Really,without that manifold being welded(to replace the broken piece),I would not waste my time Sandblasting and powdercoating a Broken manifold..
It's a waste of time.
Jeesh man!..spend 40 bucks and get another one.
If you just plan to run it,then ya,I can see replacing that stud with a BOLT.You can grind a little more off to get a washer to sit in there.
But Really,without that manifold being welded(to replace the broken piece),I would not waste my time Sandblasting and powdercoating a Broken manifold..
It's a waste of time.
#7
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,604 Likes
on
1,847 Posts
that's fixable, you'd need to cut the ear straight, weld on a piece of aluminum, redrill the hole, and mill the gasket surface flat.
Trending Topics
#9
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Find someone with a TIG welder, bring them that manifold and a case of beer. I have welded these up before and it's not aweful. I just build the area up with successive passes, then shape with a grinder, drill the mounting hole, smooth the bottom carefully with a belt sander/file. Takes an hour or so.
#10
Red Pill Dealer
iTrader: (10)
^ This is how I would do it. I have access to machinery though, so I would X the belts sander.
#16
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,604 Likes
on
1,847 Posts
+1 the average fab guy here would take like $300 and four months to do this fix, and then 99% of the time it wont fit, because they screwed up some major detail
#17

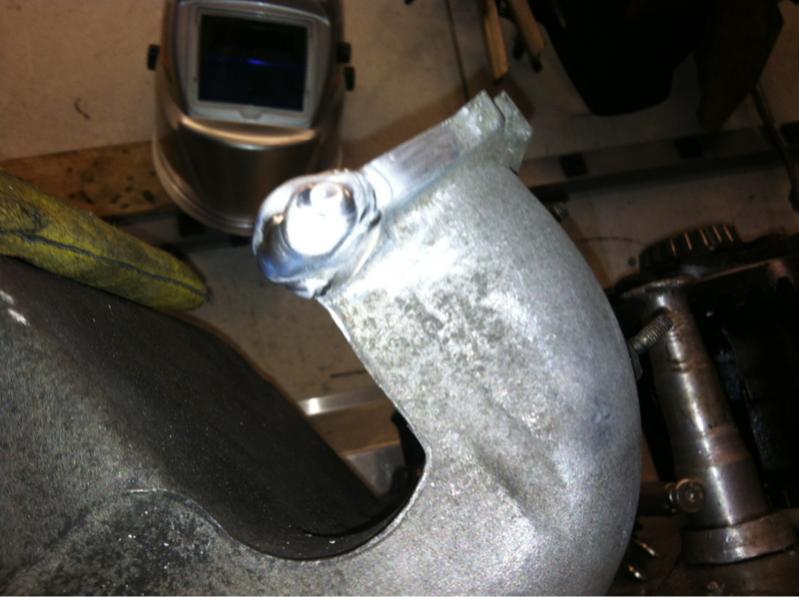

I had my buddy weld it up, while he was welding it up I sandblasted the lower.
Then we shaped the rounded edge with a electric sander and flattened the top with it as well.
I tried to belt sand the matting surface but it kept jumping off the belt. Probably operator error.

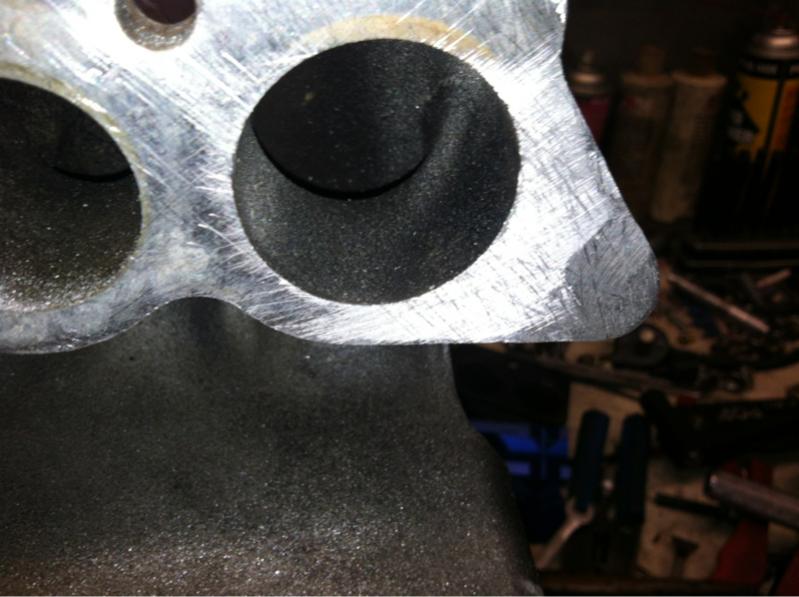

So we used the sander to get it close then put it in a vise and used a flat file to get it down, then a light sand to smooth it out.
Drill press for the hole, then done.
Took us about 2 hours, but I'm a slacker.
Then we shaped the rounded edge with a electric sander and flattened the top with it as well.
I tried to belt sand the matting surface but it kept jumping off the belt. Probably operator error.
So we used the sander to get it close then put it in a vise and used a flat file to get it down, then a light sand to smooth it out.
Drill press for the hole, then done.
Took us about 2 hours, but I'm a slacker.
Last edited by MrGoodnight; 09-23-13 at 12:48 PM.
