S5 thread pitch stock water temp sensor
08-08-10, 01:19 PM
#1
Not Even Foo
Thread Starter
iTrader: (13)
Join Date: Oct 2006
Location: South Bay, CA
Posts: 8,999
Likes: 0
Received 0 Likes
on
0 Posts
S5 thread pitch stock water temp sensor
what is it? after reading some threads, i'm under the assumption that it is 1/8" NPT. but RETed says it's 1/8" BSP. mind you, my block is an S5 and not S4.
here's the thread i used as reference:
https://www.rx7club.com/showthread.p...tch+water+temp
thanks.
here's the thread i used as reference:
https://www.rx7club.com/showthread.p...tch+water+temp
thanks.
08-09-10, 11:15 AM
#7
It is NOT 1/8" NPT
It is 1/8" BSP.
If you are REPLACING the oil pressure gauge or water temp gauge you need this.
http://www.pegasusautoracing.com/pro...asp?RecID=3142
If you are ADDING an aftermarket gauge and want the stock one to continue working you need something like this.
http://www.pegasusautoracing.com/pro...s.asp?RecID=56
Although i have not used one of these before and have no idea if it will fit, considering how close these two ports are to one another.
It is 1/8" BSP.
If you are REPLACING the oil pressure gauge or water temp gauge you need this.
http://www.pegasusautoracing.com/pro...asp?RecID=3142
If you are ADDING an aftermarket gauge and want the stock one to continue working you need something like this.
http://www.pegasusautoracing.com/pro...s.asp?RecID=56
Although i have not used one of these before and have no idea if it will fit, considering how close these two ports are to one another.
Trending Topics
08-10-10, 11:17 AM
#8
Not Even Foo
Thread Starter
iTrader: (13)
Join Date: Oct 2006
Location: South Bay, CA
Posts: 8,999
Likes: 0
Received 0 Likes
on
0 Posts
sorry guys, got a little impatient.
i'll make sure i'll do it right then. time to get that adapter...
any local store that would have such a thing?
i kinda scanned home depot pretty fast and didn't catch anything.
i'll make sure i'll do it right then. time to get that adapter...
any local store that would have such a thing?
i kinda scanned home depot pretty fast and didn't catch anything.
08-10-10, 12:51 PM
#10
Sorry I thought by that link he would have realized that it was BSP.
http://en.wikipedia.org/wiki/British...rd_pipe_thread
http://www.napaonline.com/Search/Det...+50042+2042026 original link.
http://en.wikipedia.org/wiki/British...rd_pipe_thread
http://www.napaonline.com/Search/Det...+50042+2042026 original link.
08-12-10, 12:24 AM
#11
Besides Nap Auto parts this is the only other source I have found for the 1/8 BSP to 1/8 NPT adapter. I am sure someone else supplies it but I did not find anything on Stewart Warner or the VDO website-
http://www.autometer.com/cat_accesso...il.aspx?vid=59
#2269 Autometer.
http://www.jegs.com/i/Auto-Meter/105/2269/10002/-1
Which is cheap compared to what Napa wants for theirs which is only available in a 2 piece set. Cost $30.00
For other reference adapters.
http://www.jegs.com/p/Auto-Meter/Aut...49158/10002/-1
http://www.autometer.com/cat_accesso...il.aspx?vid=59
#2269 Autometer.
http://www.jegs.com/i/Auto-Meter/105/2269/10002/-1
Which is cheap compared to what Napa wants for theirs which is only available in a 2 piece set. Cost $30.00
For other reference adapters.
http://www.jegs.com/p/Auto-Meter/Aut...49158/10002/-1
10-27-10, 04:20 PM
#12
Not Even Foo
Thread Starter
iTrader: (13)
Join Date: Oct 2006
Location: South Bay, CA
Posts: 8,999
Likes: 0
Received 0 Likes
on
0 Posts

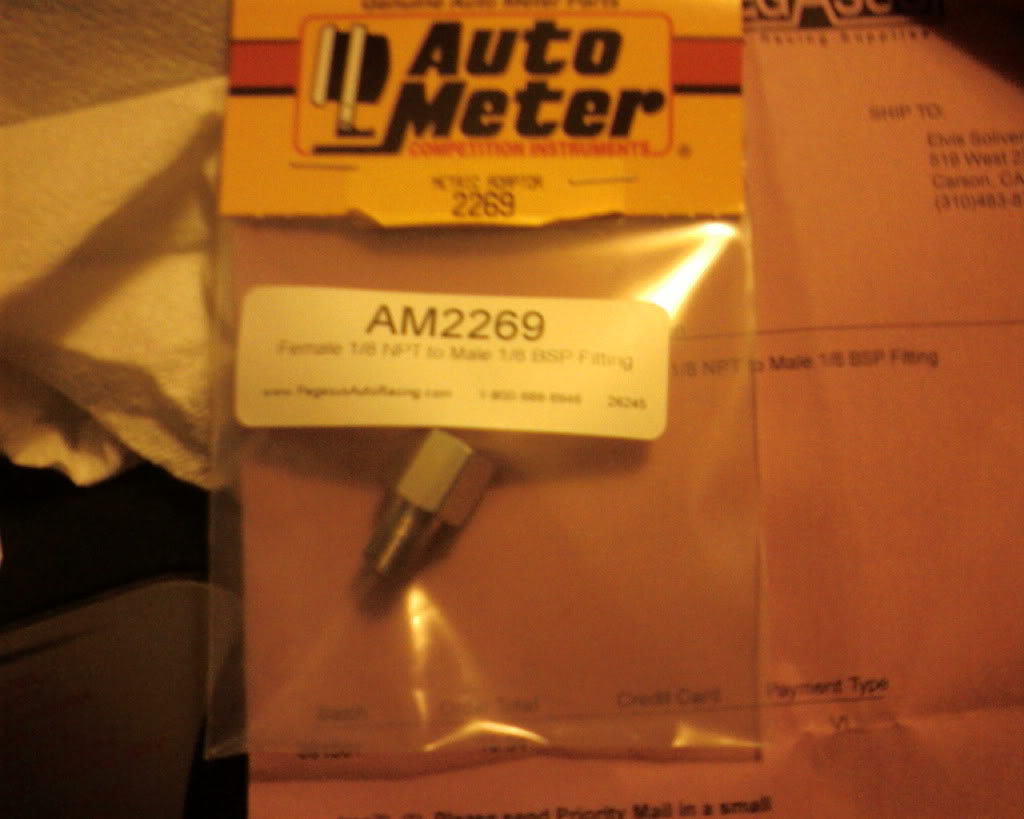

so i bought the adapter good while back but barely had the change to put it on recently.
sure enough, the sensor was bigger in diameter than the adapter's hole.
used these guys to make the hole bigger
and had to make do with what i had.
even though i made the hole big enough, the threads DID NOT match.
it's much more coarse (sp) than the fine threading of the sensor.
i don't know if the threading was vice versa (the outside being the threading on the inside and inside being out) but all i know that it didn't fit.
not really asking much but just wanted to share what happened. i just ended up putting the water temp sensor back in without the adapter.
sure enough, the sensor was bigger in diameter than the adapter's hole.
used these guys to make the hole bigger
and had to make do with what i had.
even though i made the hole big enough, the threads DID NOT match.
it's much more coarse (sp) than the fine threading of the sensor.
i don't know if the threading was vice versa (the outside being the threading on the inside and inside being out) but all i know that it didn't fit.
not really asking much but just wanted to share what happened. i just ended up putting the water temp sensor back in without the adapter.
10-27-10, 04:29 PM
#13
The 1/8 BSPT and 1/8 NPT will interchange.
The difference is the first has 28 threads per inch the second has 27 threads per inch and from a practical perspective, the taper will lock before the thread discrepancy matters.
I've done it several times without leaks or thread damage.
The difference is the first has 28 threads per inch the second has 27 threads per inch and from a practical perspective, the taper will lock before the thread discrepancy matters.
I've done it several times without leaks or thread damage.
The following users liked this post:
re-rx7 (03-24-24)
09-09-11, 03:51 PM
#14
Senior Member
iTrader: (1)
Join Date: Jun 2009
Location: huntington beach california
Posts: 318
Likes: 0
Received 0 Likes
on
0 Posts
sorry to bring this thread back to life but iv been looking around and havnt found anything yet. but does anyone know what color wire goes to the temp gauge sender? mine is a 93 3rd gen. thanks guys
Last edited by Youngx7; 09-09-11 at 04:01 PM.
