S5 Logicon Main Board Components - Transistors, Capacitors, IC Chips, Zener Diode
Here is my last post concerning the Logicon Components. This post covers the Main Board IC chips, transistors, capacitors, and zener diode. Unlike my previous posts, this will only show part numbers on the component itself and the reference designators associated with them. This is for an S5 Logicon.
The component breakdown follows with photos:
1. IC chips / DIP:

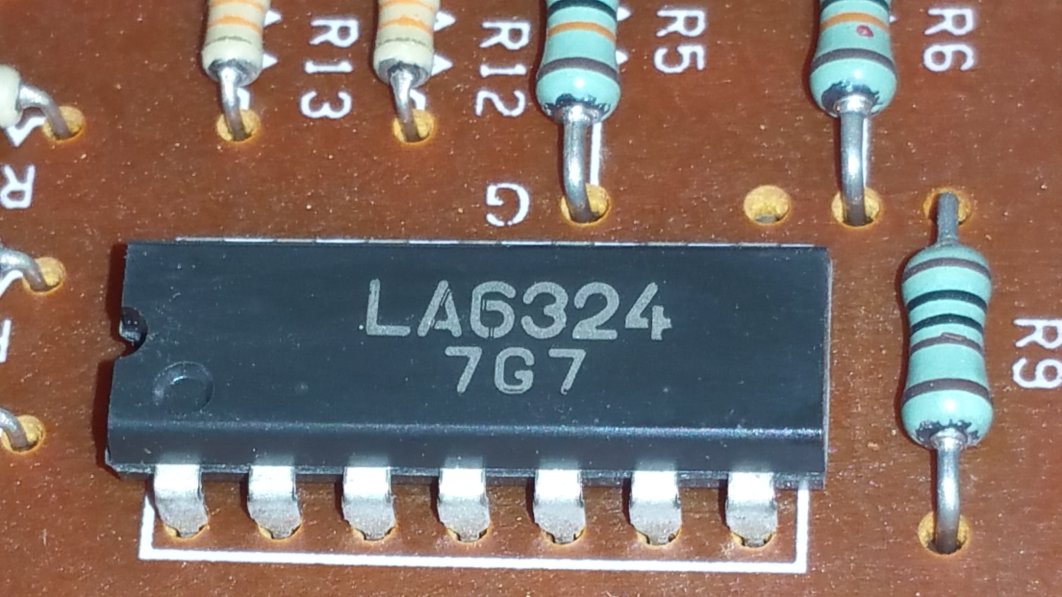

1. a. IC1 - LA6324

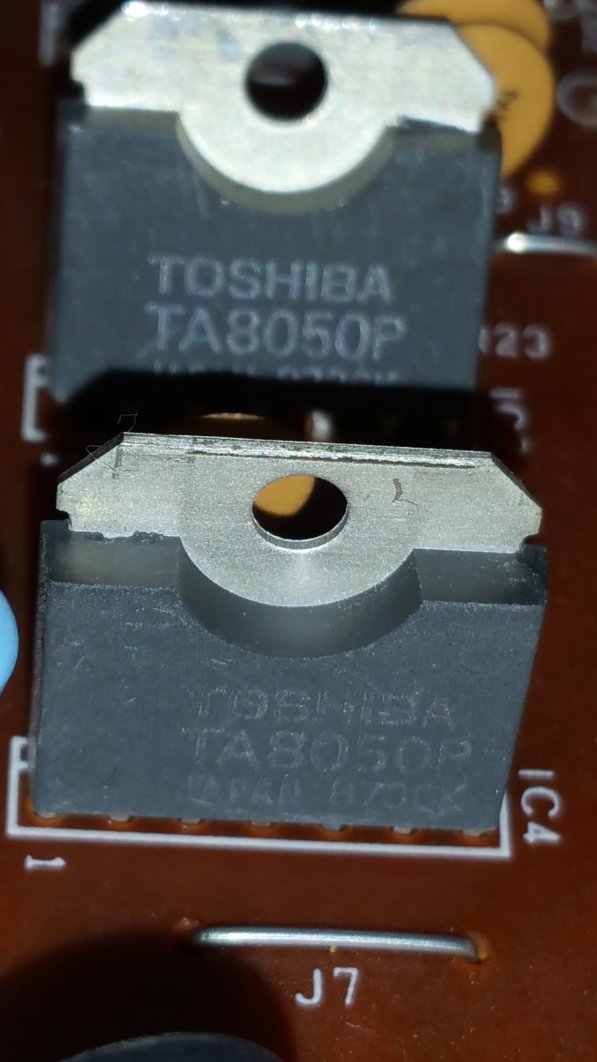

1. b. IC2,3,4 - TA8050P
2. Transistors (Identified by T instead of Q):

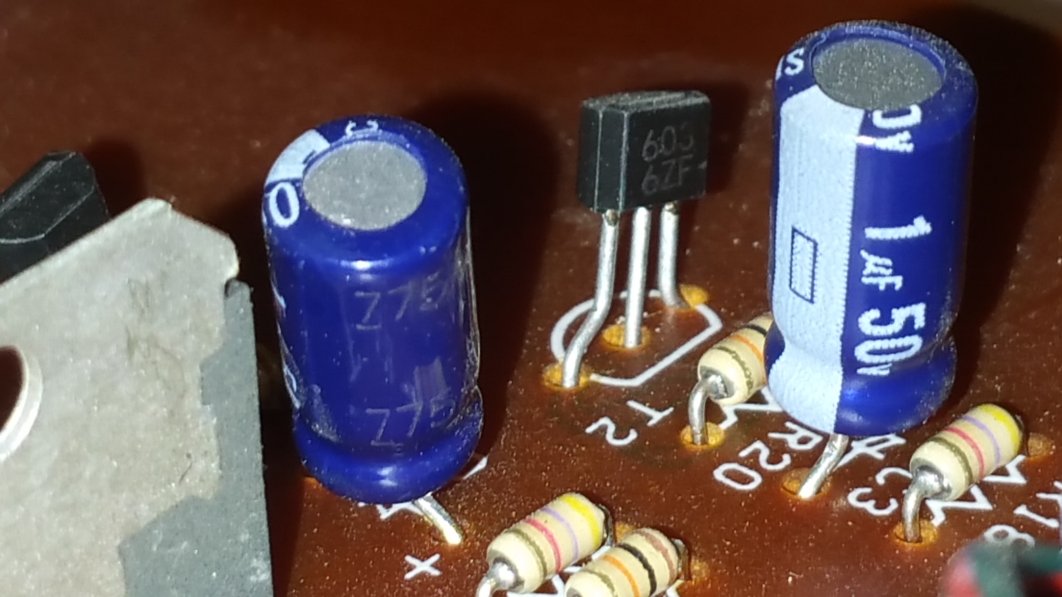

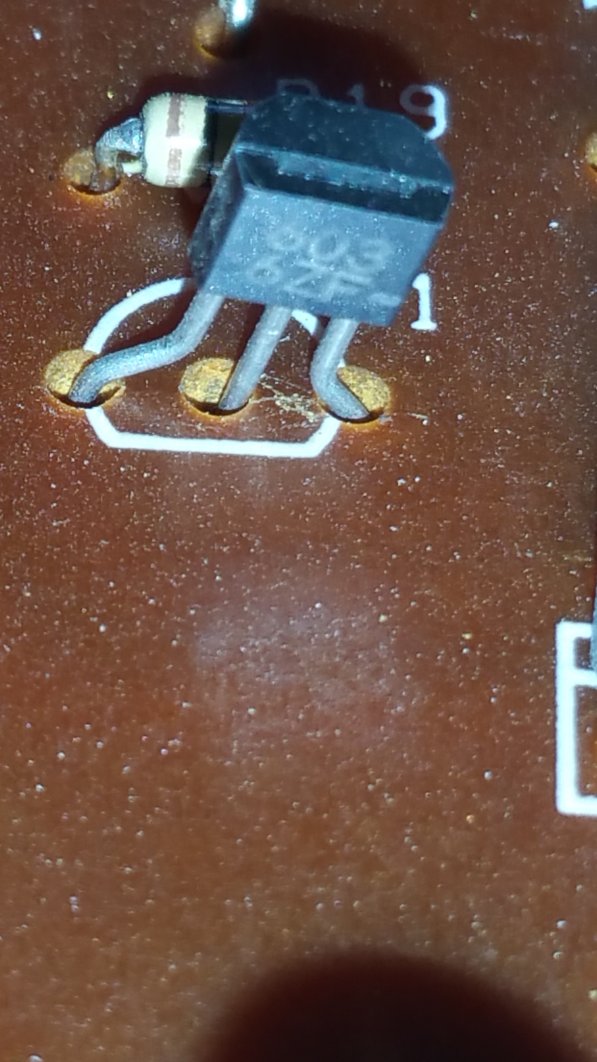

2. a. T1, T2 - 603 6ZF
2. b. T3 - C2274
3. Capacitors:

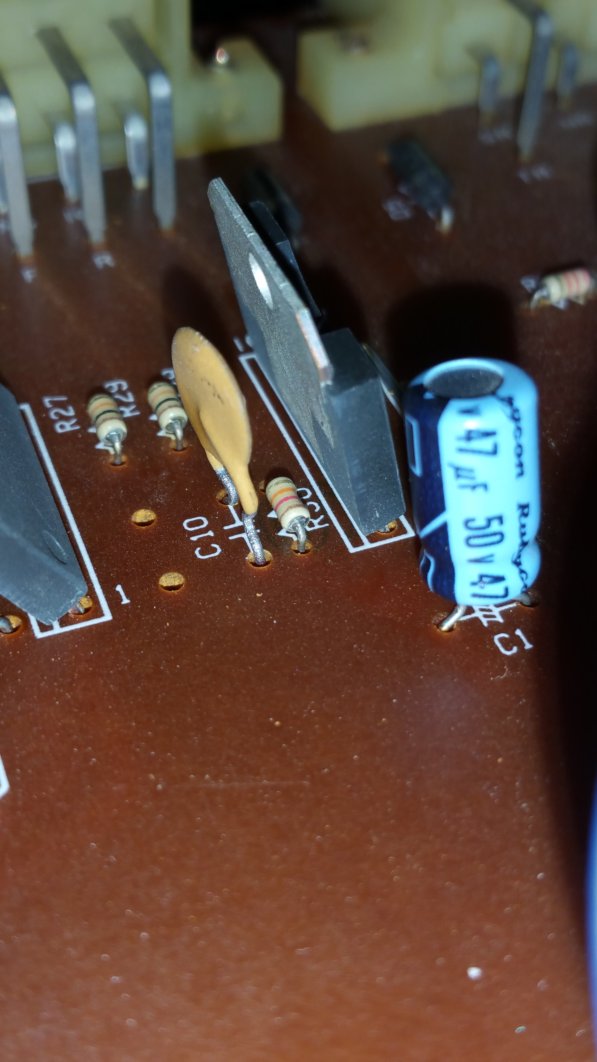

3. a. C1 - 47uF, 50V, 85*C
3. b. C2, C3 - 1uF, 50V, 85*C

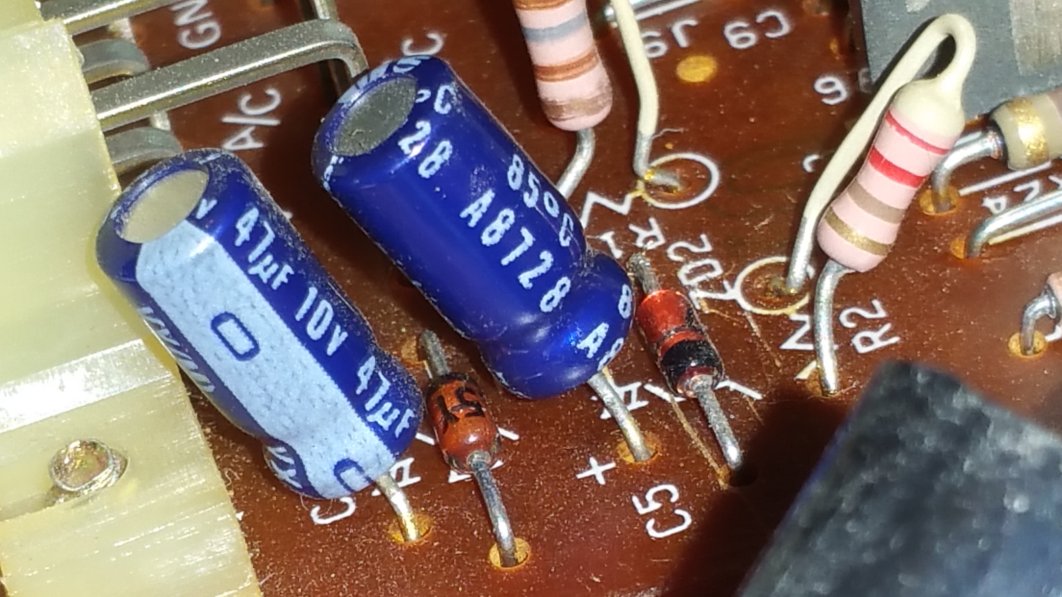

3. c. C4, C5 - 47uF, 10V, 85*C

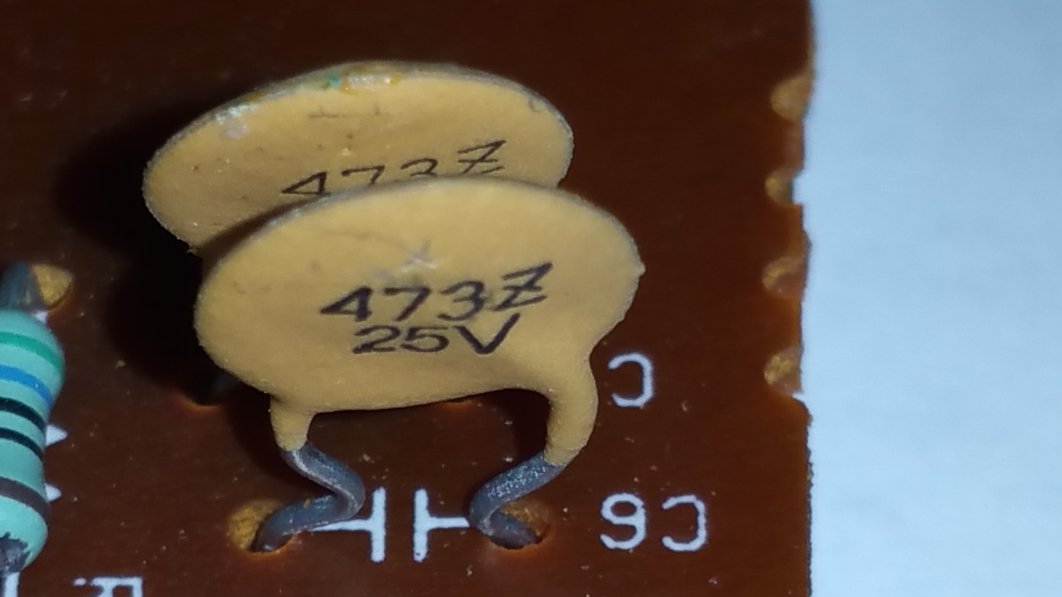

3. d. C6 thru C10 - 473Z, 25V
4. Zener Diode (Wafer type):

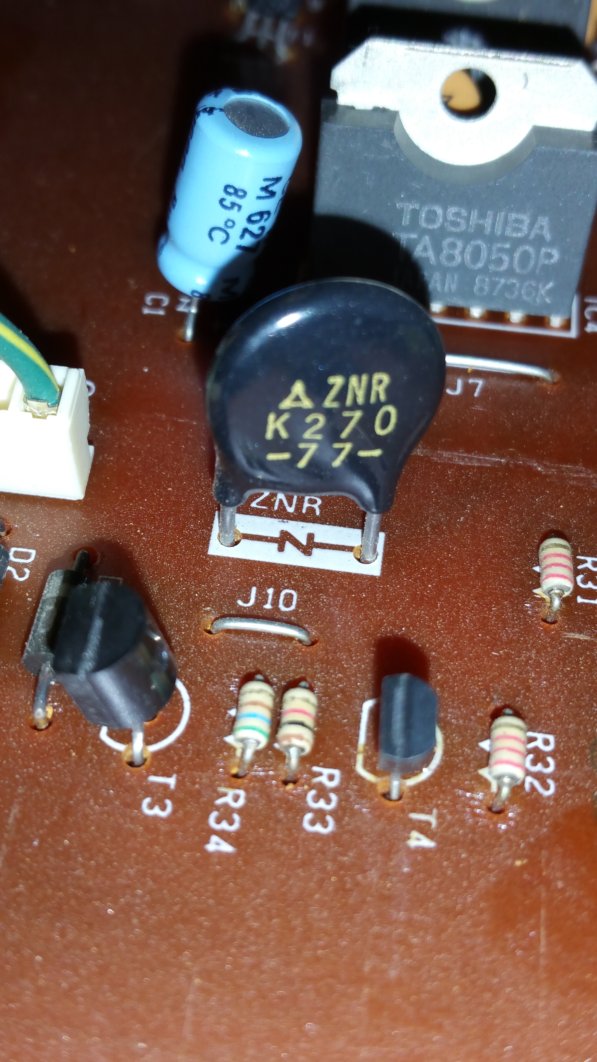

4. a. ZNR - K270, -77-
Does anyone have additional requests for part numbers from these components before I button up this logicon?
Additionally, if anyone has cross-referenced part numbers on these components then feel free to respond.
Cheers,
George
