s5 ecu wirring diagram color coded?
#3
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
I'll just give this url and let it go at that. http://www.cochran-racing.com/FSM/index.html
#4
707
Thread Starter
Join Date: May 2004
Location: Santa Rosa Ca
Posts: 854
Likes: 0
Received 0 Likes
on
0 Posts
another "cool" remark from ted. go ted!
ive already looked @ (http://www.cochran-racing.com/FSM/s5...systems_na.pdf) page 9, i read this before i posted.
color coded would be easier
ive already looked @ (http://www.cochran-racing.com/FSM/s5...systems_na.pdf) page 9, i read this before i posted.
color coded would be easier
#5
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
There's no such thing. Making all the lines thick enough to see the distinct colours would turn the diagrams into a cluttered mess, which is why nobody does it. The colour codes are clearly shown on the diagrams and require the most basic of memory skills to use.
#7
707
Thread Starter
Join Date: May 2004
Location: Santa Rosa Ca
Posts: 854
Likes: 0
Received 0 Likes
on
0 Posts
this guy in the first gen section put a s5 n/a into a fb or sa
iam putting a s5 n/a into a 74 repu
i showed him the link to (http://www.cochran-racing.com/FSM/s5...systems_na.pdf) for the wirring diagram
and he said this "That link has all the info on how the engine controls work and all, but it doesn't have the wiring colors, there is a wiring diagram out there somewhere, can't remeber the link, but if i come across it i'll pm you"
my passenger side harness is missing the fuse block and batt termails so iam a little confused, also i wanted to 'clean up the harness and remove any unwanted things'
this is almost complete "https://www.rx7club.com/showthread.php?t=719859" ive done all the grunt work now for the part iam not so good at
iam putting a s5 n/a into a 74 repu
i showed him the link to (http://www.cochran-racing.com/FSM/s5...systems_na.pdf) for the wirring diagram
and he said this "That link has all the info on how the engine controls work and all, but it doesn't have the wiring colors, there is a wiring diagram out there somewhere, can't remeber the link, but if i come across it i'll pm you"
my passenger side harness is missing the fuse block and batt termails so iam a little confused, also i wanted to 'clean up the harness and remove any unwanted things'
this is almost complete "https://www.rx7club.com/showthread.php?t=719859" ive done all the grunt work now for the part iam not so good at
Trending Topics
#8
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
http://www.cochran-racing.com/FSM/index.html
True. The series four does show the wiring but the series five does not. BUT, someone did scan the series five WIRING and it WAS hosted by someone. At that time I downloaded it to the hard drive because what someone hosts one day may be gone the next.
It MIGHT still be out there somewhere. It was in the archives and might still be there. Take a look.
https://www.rx7club.com/forum/showthread.php?t=530860
True. The series four does show the wiring but the series five does not. BUT, someone did scan the series five WIRING and it WAS hosted by someone. At that time I downloaded it to the hard drive because what someone hosts one day may be gone the next.
It MIGHT still be out there somewhere. It was in the archives and might still be there. Take a look.
https://www.rx7club.com/forum/showthread.php?t=530860
Last edited by HAILERS; 01-25-08 at 09:45 PM.
#14
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

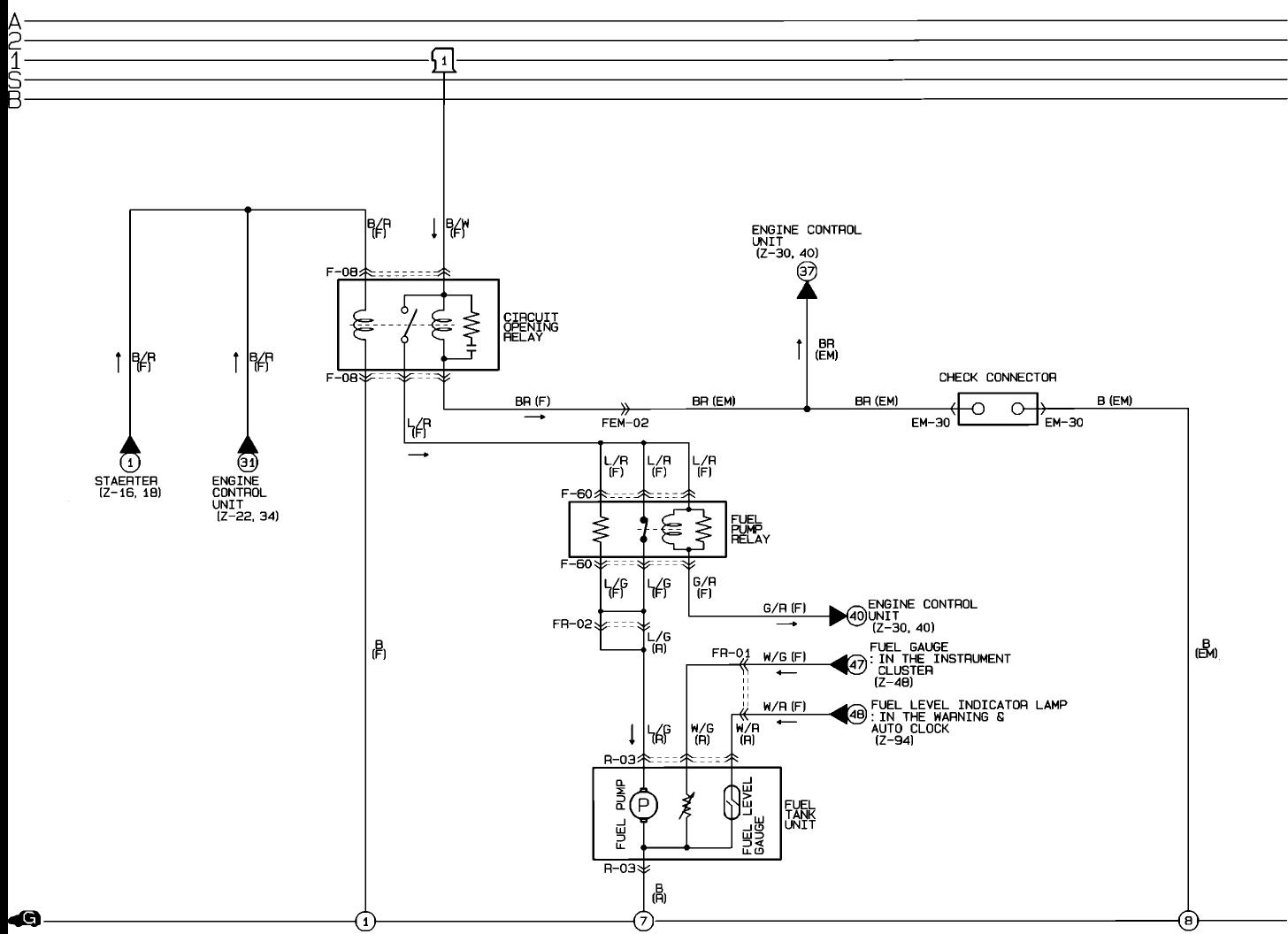

IF you need something more specific than the above write back. By the way, Mazdatrix used to sell just the wiring schematics.
#16
707
Thread Starter
Join Date: May 2004
Location: Santa Rosa Ca
Posts: 854
Likes: 0
Received 0 Likes
on
0 Posts
its exactly what i needed, i found it in wankel7's thread (thanks to hailers). bless wankel7 for posting it!! iam sure it has saved many people from many headaches
