S5 Block Off Plates - CAD

Needed some block off plates for one of my projects. CADed them up so I could water jet them.

Figured since I had the CAD why not share. Attached in the zip file are the dxf files for the ACV and Air pipe (also water outlet) for S5 TII lower intake manifold.

Any competent machine shop can use these to mill, waterjet or laser some parts for you.

Files are also uploaded to iwankel.com

Attached Files

S5T2.zip (7.4 KB, 29 views)

bwaits is offline

Reply Like

Old

07-26-12, 12:07 PM

#2

misterstyx69

Retired Moderator, RIP

iTrader: (142)

Join Date: Sep 2005

Location: Smiths Falls.(near Ottawa!.Mapquest IT!)

Posts: 25,581

Likes: 0

Received 131 Likes on 114 Posts

Should put this in the Archives for future reference.
Good Job!!

misterstyx69 is offline

Reply Like

Old

07-26-12, 02:49 PM

#3

bwaits

Needs More Noise

Thread Starter

iTrader: (12)

Join Date: Nov 2001

Location: Georgia

Posts: 3,375

Likes: 0

Received 1 Like on 1 Post

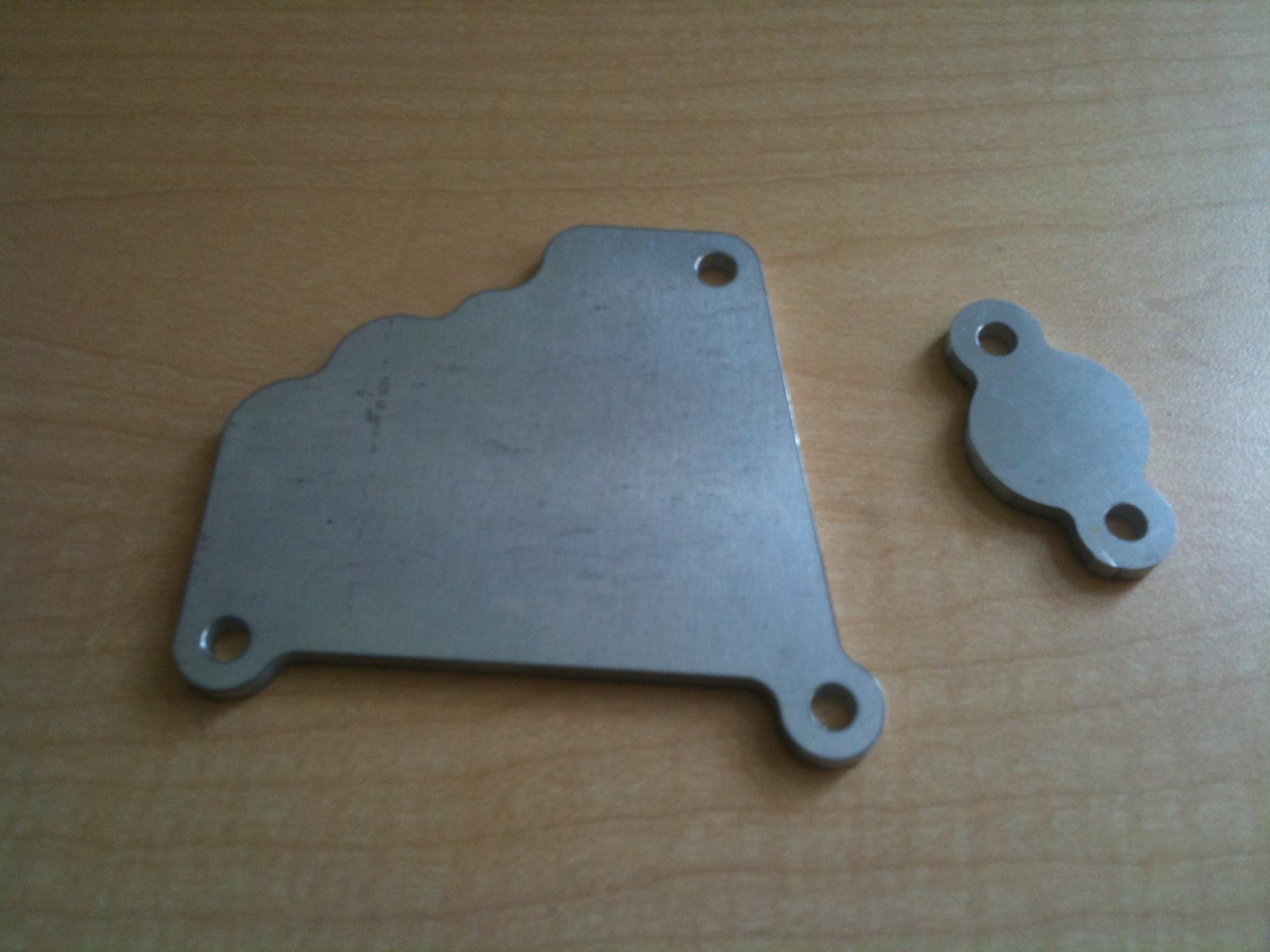

ACV and Air pipe block offs all cut out.

Attached Thumbnails

S5 Block Off Plates - CAD-photo.jpg
