s5 alternator, with the harness unplugged.
#1
MP T-70 = Fun
Thread Starter
Join Date: Dec 2004
Location: Charlotte and WCU
Posts: 1,049
Likes: 0
Received 0 Likes
on
0 Posts
s5 alternator, with the harness unplugged.
ok.
what does the little harness that plugs into the alternator do? I know one of them is for the warning lights.
But... what does the other one do? Will the alt still charge with it unplugged?
please dont ask why... haha. I just need to know.
Thanks.
what does the little harness that plugs into the alternator do? I know one of them is for the warning lights.
But... what does the other one do? Will the alt still charge with it unplugged?
please dont ask why... haha. I just need to know.
Thanks.
#3
MP T-70 = Fun
Thread Starter
Join Date: Dec 2004
Location: Charlotte and WCU
Posts: 1,049
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by The Spyder
One of them is a 12v regulator signal to tell the alternator when it needs to be charging....
when they test alts at autozone they dont hook up a wire to this harnes and the thing still charges...
so im confused.
#5
Lives on the Forum
Originally Posted by sleeperfc
when they test alts at autozone they dont hook up a wire to this harnes and the thing still charges...
so im confused.
so im confused.
Usually, when the bench test the alternator, they hook up an alligator clip to one of the leads - maybe you missed this part of the test?
-Ted
#6
MP T-70 = Fun
Thread Starter
Join Date: Dec 2004
Location: Charlotte and WCU
Posts: 1,049
Likes: 0
Received 0 Likes
on
0 Posts

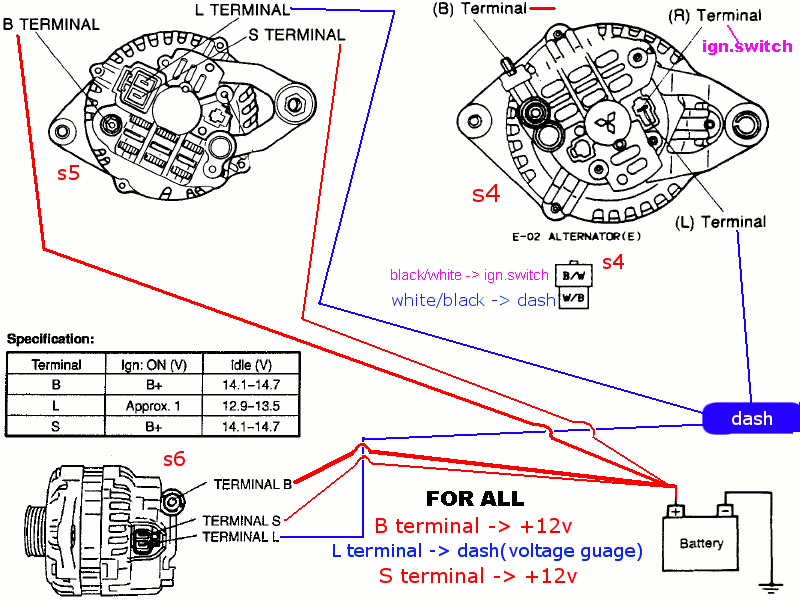

ok. So from the pic you posted the S-terminal on the s5 and the L-treminal on the s4 are the same? i guess?
I have a s4 now and may have to put a s5 alt in temporarly. Thats why i wondered.
I actually had a few thoughts about running dual alts till i can afford a fd one.
Im tired of blowing alts every month or so, and im tired of dead batterys.
So the S and L terminals are the same?
I have a s4 now and may have to put a s5 alt in temporarly. Thats why i wondered.
I actually had a few thoughts about running dual alts till i can afford a fd one.
Im tired of blowing alts every month or so, and im tired of dead batterys.
So the S and L terminals are the same?
