jeff_man

So my gxl wipers don't work. the front and the back so i think there just not wired in or something like that. i know it's 15A and 10A but thats all i know. So anyone know of a diagram or something to show where the wires run and all that?

fc3snicko04

I got the same proble, but all i do is restart my car and they work again and unless you know how to read a wiring diagram your out of luck

jeff_man

no they just don't work, they don't stop working, they never have sense the 13bt was put in the car.

HAILERS

You installed the Turbo emissions harness, didn't you. Actually I should say, "you installed a JDM emissions harness?????

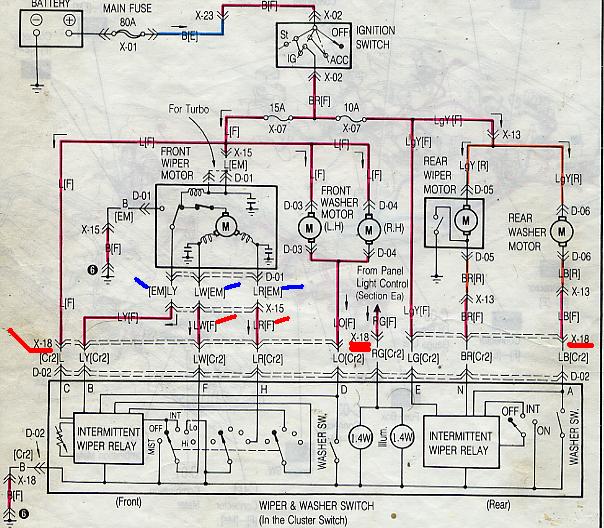

Here's a diagram of the wiper stuff. Not that good, but a idea. https://www.rx7club.com/forum/attach...hmentid=106348

jeff_man

i didn't install the motor the guy i bot the car from did =/

and the car is 100% no emissions gear so i have to look into it

Icemark

On a US spec motor, the front wiper motor wires run with the emissions computer wires.

How did you wire your motor???

rotary_yankee

hey jeff

You need to get the switches rebuilt or find some use ones.
I believe that icemark works with those switches.
