S4 TII Harness help!
I'm ridiculously close to getting this thing cranked and there are a few plugs hanging around on the harness, and I have no clue where they go. I have had a full emissions removal done on the engine when it was rebuilt, and the Haynes manual showed that the multicolored plugs on the driver side were emissions related, so I supposed they don't go anywhere.

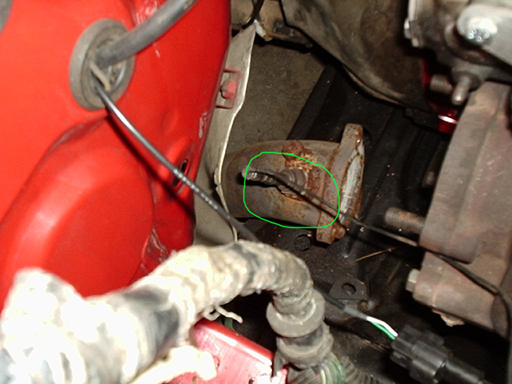

I've also got an aftermarket downpipe with some sort of pyrometer on it, and I have no clue if it's factory or not. It also has no where to plug into, and has a single blade inside of a green plug. If someone could just identify what plug goes into what real quick for me, that'd be great.
I've also got an aftermarket downpipe with some sort of pyrometer on it, and I have no clue if it's factory or not. It also has no where to plug into, and has a single blade inside of a green plug. If someone could just identify what plug goes into what real quick for me, that'd be great.
#3
Senior Member
Join Date: Feb 2004
Location: spokane wa
Posts: 657
Likes: 0
Received 0 Likes
on
0 Posts

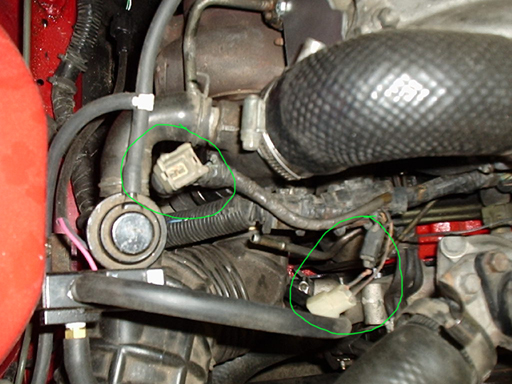

i think the first if for ac
the 3rd should be for o2 sensor if its green with single blade

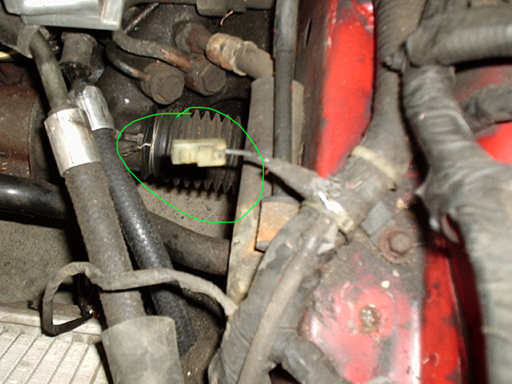

the 4th is for cruise control

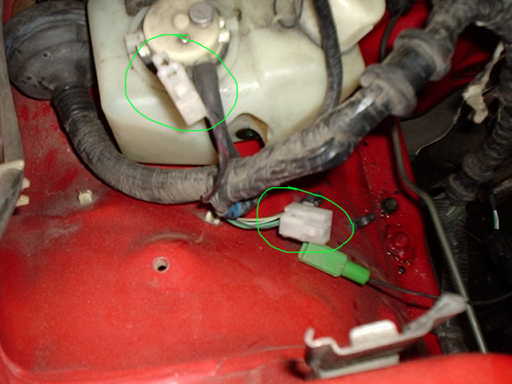

and the second pic i think that i hacked those off. somthing like acv i think.
the 3rd should be for o2 sensor if its green with single blade
the 4th is for cruise control
and the second pic i think that i hacked those off. somthing like acv i think.
#4
Senior Member
Join Date: Feb 2004
Location: spokane wa
Posts: 657
Likes: 0
Received 0 Likes
on
0 Posts
i think the first if for ac
the 3rd should be for o2 sensor if its green with single blade
the 4th is for cruise control
and the second pic i think that i hacked those off. somthing like acv i think.
damn server
the 3rd should be for o2 sensor if its green with single blade
the 4th is for cruise control
and the second pic i think that i hacked those off. somthing like acv i think.
damn server
