S4 boost sensor on an S5
Does anyone know if I can use the S4 boost sensor from the Non-turbo on an S5 non-turbo. The mazda parts diagram has them as different part numbers, but are they compatible? TIA.
09-13-06, 10:39 AM
#3
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Series four has four wires going to/from it.
Series five has three wires going to/from it.
The *extra* wire on a series four is a 12vdc input.
See the online wiring diagrams. Maybe add that 12vdc to the connector where it would be on a series four plug and have a go at it.
Series five has three wires going to/from it.
The *extra* wire on a series four is a 12vdc input.
See the online wiring diagrams. Maybe add that 12vdc to the connector where it would be on a series four plug and have a go at it.
09-13-06, 06:55 PM
#5
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

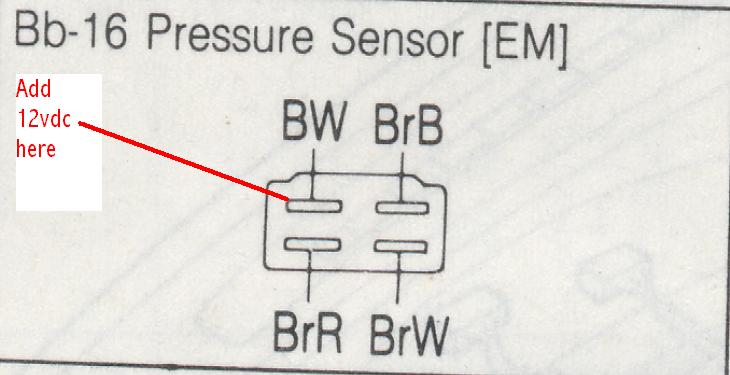

Add 12dc wire to the place in the jpg I attached.
