Rotor stamps

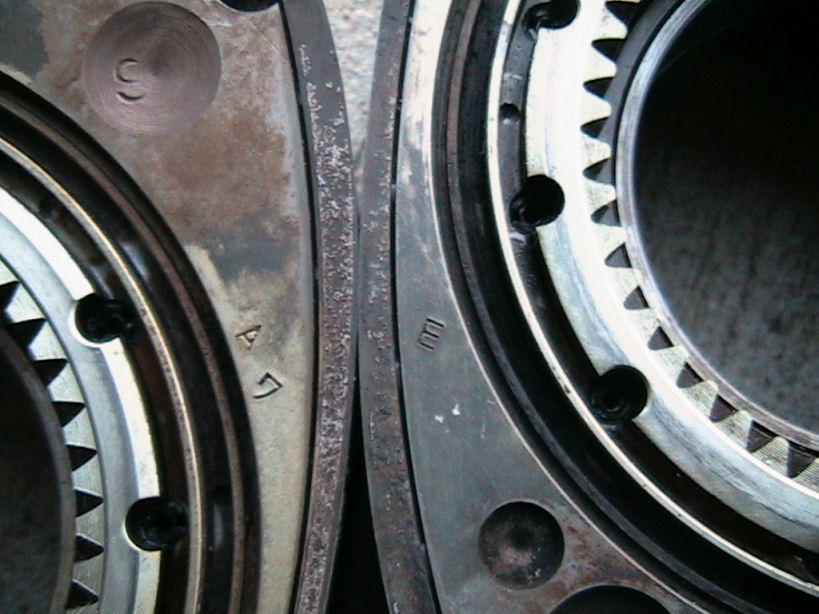

Okay, I have one S5 rotor stamped E, another stamped A and I'm looking to buy one stamped C.
The E and A rotor were both originally together, but E is dead so i'm looking at C. Anyone know if they're compatible?
The E and A rotor were both originally together, but E is dead so i'm looking at C. Anyone know if they're compatible?
#3
Mountain Rotary Mod
Thread Starter
Join Date: Nov 2003
Location: Freaking Poland!!
Posts: 2,411
Likes: 0
Received 0 Likes
on
0 Posts
But i had A and E originally running together in the engine and A is the one that's useful.
Are you saying that to replace E because it was the original i would need D or E?
Anyone have a chart ? Maybe it's in the FSM...
Are you saying that to replace E because it was the original i would need D or E?
Anyone have a chart ? Maybe it's in the FSM...
#5
Mountain Rotary Mod
Thread Starter
Join Date: Nov 2003
Location: Freaking Poland!!
Posts: 2,411
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Karack
edited, and just because they were in there doesnt mean they were properly matched in the first place.
#7
BOOSTED Vert
Join Date: Sep 2002
Location: Miami
Posts: 2,307
Likes: 0
Received 0 Likes
on
0 Posts
yes c would be better than e, but the point is to have no more than 1 leter difference, or 2(IIRC). That vert looks just like mine.... same wheels and everything... ITs like a miror immage only mine is s4. And yea it looks nice...
Trending Topics
#8
Lives on the Forum
I doubt it you were running an "A" and an "E" rotor.
On the "E" rotor, look for another letter - either "A" or "B".
English "E" looks amazingly like Japanese Katakana "yo" (backwards).
The rotor sides are stamped with Japanese Katakana characters.
-Ted
On the "E" rotor, look for another letter - either "A" or "B".
English "E" looks amazingly like Japanese Katakana "yo" (backwards).
The rotor sides are stamped with Japanese Katakana characters.
-Ted
#10
Mountain Rotary Mod
Thread Starter
Join Date: Nov 2003
Location: Freaking Poland!!
Posts: 2,411
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RETed
I doubt it you were running an "A" and an "E" rotor.
On the "E" rotor, look for another letter - either "A" or "B".
English "E" looks amazingly like Japanese Katakana "yo" (backwards).
The rotor sides are stamped with Japanese Katakana characters.
-Ted
On the "E" rotor, look for another letter - either "A" or "B".
English "E" looks amazingly like Japanese Katakana "yo" (backwards).
The rotor sides are stamped with Japanese Katakana characters.
-Ted
Nope, you're right (as usual )
I scrapped off some more grease from one of the corners and found a B. Thanks!
#11
Lives on the Forum
Originally Posted by Parastie
Nope, you're right (as usual )
I scrapped off some more grease from one of the corners and found a B. Thanks!
I scrapped off some more grease from one of the corners and found a B. Thanks!
Here's a hint - Japanese Katakana characters are used to denote rotor faces - they are stamped as close to the center of the rotor face as possible without hitting the side seal groove.
If you see just one stamp all by itself close to the center of the rotor face, that's not it.
The "A" - "E" denotation are usually more towards the apex seals grooves, although your pic shows the "A" *VERY* close to the center.
If you see two stamps, one will usually be the "A" - "E" designation.
BTW, your "A" rotor has a Japanese Katakana "wa" next to it.
-Ted
Last edited by RETed; 03-16-05 at 06:57 PM.
#17
Lives on the Forum
Yes, "A" denotes heaviest, and "E" denotes lightest.
Letters are "A" through "E".
Rotors are "matched" with either identical letters or ONE letter difference.
So, a "C" rotor can be matched with either a "B" or a "D" rotor.
You are NOT supposed to run a "C" and an "A" or an "E" rotor.
I know fanatics that have a stash of "E" rotors!
If I remember correctly, the weight difference is like 2 grams for each letter - but don't quote me on this!
So the difference is very minimal...
-Ted
Letters are "A" through "E".
Rotors are "matched" with either identical letters or ONE letter difference.
So, a "C" rotor can be matched with either a "B" or a "D" rotor.
You are NOT supposed to run a "C" and an "A" or an "E" rotor.
I know fanatics that have a stash of "E" rotors!
If I remember correctly, the weight difference is like 2 grams for each letter - but don't quote me on this!
So the difference is very minimal...
-Ted
#19
Senior Member
Join Date: Nov 2005
Location: united states
Posts: 541
Likes: 0
Received 0 Likes
on
0 Posts
sorry for resurecting the dead like i usually do, i understand A-E stamps E being the lightest. Now s5 is lighter then s4 so is A-C s4 and C-E s5 or is there a letter stamp for every series like s4 has A-E and a s5 has A-E? sorry i just bought s5 rotors and im afraid there s4 rotors. They look to be machined and are both stamped B id prefer a E stamp but if there the 9.7:1 compression ill live.
#22
Rotaries confuse me
iTrader: (7)
https://www.rx7club.com/showthread.p...5&page=2&pp=30
This is my logic, tell me where I have gone wrong:
I weighed these two rotors:
"B" 4377.57g (9.650lb)
"D" 4343.67g (9.576lb)
The “2-letter” weight deviation of this pair seems to be 33.9g. Half of this value must be the “1-letter” deviation, which is 16.95g. Mazda letters rotors from A to E, which is (4) “1-letter” deviations in weight, which is 67.8g.
Given the above 2 values let assume that the mean rotor weights are:
“A” = 4394g
“B” = 4277g
“C” = 4360g
“D” = 4343g
“E” = 4326g
That means the lightest pair of rotors is:
2 x 4326 = 8652g
And the heaviest pair of rotors is:
2 x 4394 = 8788g
The difference of these is:
8788 – 8652 = 136g
There must also be an allowable range for the weights of counter weights (drilling them brings the rough casting into this range). Let’s be conservative and assume all of the counterweights are exactly the same weight.
If Mazda does not dynamically balance every engine, and Mazda does not stamp counterweights to be used with their matching rotors then Mazda must allow rotor pairs that range over 136g in weight to be used with the same counterweights. Right?
So how does my removal of 60g (30g x (2)) make my setup any worse than what Mazda ships out the door?
Justin
This is my logic, tell me where I have gone wrong:
I weighed these two rotors:
"B" 4377.57g (9.650lb)
"D" 4343.67g (9.576lb)
The “2-letter” weight deviation of this pair seems to be 33.9g. Half of this value must be the “1-letter” deviation, which is 16.95g. Mazda letters rotors from A to E, which is (4) “1-letter” deviations in weight, which is 67.8g.
Given the above 2 values let assume that the mean rotor weights are:
“A” = 4394g
“B” = 4277g
“C” = 4360g
“D” = 4343g
“E” = 4326g
That means the lightest pair of rotors is:
2 x 4326 = 8652g
And the heaviest pair of rotors is:
2 x 4394 = 8788g
The difference of these is:
8788 – 8652 = 136g
There must also be an allowable range for the weights of counter weights (drilling them brings the rough casting into this range). Let’s be conservative and assume all of the counterweights are exactly the same weight.
If Mazda does not dynamically balance every engine, and Mazda does not stamp counterweights to be used with their matching rotors then Mazda must allow rotor pairs that range over 136g in weight to be used with the same counterweights. Right?
So how does my removal of 60g (30g x (2)) make my setup any worse than what Mazda ships out the door?
Justin
#23
Boost in..Apex seals out.
Join Date: Nov 2003
Location: Maryland, 21794
Posts: 1,931
Likes: 0
Received 0 Likes
on
0 Posts
You really thought about this, eh? It's quite possible that you are weighing rotors that have been worn over the years, and one might be substantially lighter then it would be stock. From the factory, they are probably much closer...even wear is not possible.
Nonetheless..I was a set of E rotors for my T2 :P
Nonetheless..I was a set of E rotors for my T2 :P
#25
7th Heaven
iTrader: (9)
Originally Posted by adrock3217
It's quite possible that you are weighing rotors that have been worn over the years, and one might be substantially lighter then it would be stock.
you are kidding right?
because a non-wear item would get lighter over years.
maybe if there was detonation....
