Reverse lights, relay still wont work
#1
Almost Famous
Thread Starter
Join Date: Aug 2010
Location: Virginia
Posts: 94
Likes: 0
Received 0 Likes
on
0 Posts
Reverse lights, relay still wont work
Im trying to avoid having to pull the reverse switch, s4 TII, its all rusted and looks like a bear to remove. its larger than a 24mm i think. I cant really get a good grip on it, obviously.
I checked the fuses, put in new light bulbs, i even replaced the terminals to all the wires on the switch because they were too corroded to clean. im assuming the 4 plugs were in the correct places to begin with. Still no dice.
So i did the relay as per the writeup in the faq. And still nothing. If i put the 12v to pin 87a on the relay the lights do come on, but always, without the key in. Bad switch?
I checked the fuses, put in new light bulbs, i even replaced the terminals to all the wires on the switch because they were too corroded to clean. im assuming the 4 plugs were in the correct places to begin with. Still no dice.
So i did the relay as per the writeup in the faq. And still nothing. If i put the 12v to pin 87a on the relay the lights do come on, but always, without the key in. Bad switch?
#2
Moderator
iTrader: (1)
The Black/Yellow wire supplies power to the reverse switch. When the car is placed in reverse the voltage passes on to the Red/Green wire. If the switch is not passing voltage to the R/G wire then the switch is no good.
Lets say you are talking about the relay and not the switch. The relay has a coil which triggers the relay. The coil requires two wires. One is a ground. The other wire needs to be the Black/Yellow wire. When the car is placed in reverse the B/Y wire will trigger the relay to the closed position. This leaves the two pins to the relay. One runs from the relay to the reverse lights. This would be the Red/Green wire. The other wire to the relay would then need to be a wire carrying voltage.
Lets say you are talking about the relay and not the switch. The relay has a coil which triggers the relay. The coil requires two wires. One is a ground. The other wire needs to be the Black/Yellow wire. When the car is placed in reverse the B/Y wire will trigger the relay to the closed position. This leaves the two pins to the relay. One runs from the relay to the reverse lights. This would be the Red/Green wire. The other wire to the relay would then need to be a wire carrying voltage.
Last edited by satch; 08-23-14 at 10:45 PM.
#3
Almost Famous
Thread Starter
Join Date: Aug 2010
Location: Virginia
Posts: 94
Likes: 0
Received 0 Likes
on
0 Posts
So basically run the b/y wire, going to the switch itself, to pin 87 to power the relay? like up through the shifter hole or something (since my relay is in the cabin), correct?
and since the reverse light wires are already connected to the relay at the drivers side kick panel, i dont have to run the r/g at the switch itself to the relay correct?
sorry, im just trying to create the visual in my head. Thanks!
and since the reverse light wires are already connected to the relay at the drivers side kick panel, i dont have to run the r/g at the switch itself to the relay correct?
sorry, im just trying to create the visual in my head. Thanks!
#4
Moderator
iTrader: (1)
So basically run the b/y wire, going to the switch itself, to pin 87 to power the relay? like up through the shifter hole or something (since my relay is in the cabin), correct?
and since the reverse light wires are already connected to the relay at the drivers side kick panel, i dont have to run the r/g at the switch itself to the relay correct?
sorry, im just trying to create the visual in my head. Thanks!
and since the reverse light wires are already connected to the relay at the drivers side kick panel, i dont have to run the r/g at the switch itself to the relay correct?
sorry, im just trying to create the visual in my head. Thanks!
The B/Y wire is found at connector FE-02.
Last edited by satch; 08-24-14 at 07:55 AM.
#5
Moderator
iTrader: (1)
Scratch everything I said as I forgot to take into account that the B/Y wire is not related to whether the car is in reverse or not as it is just powered by the meter fuse w/key to on.
You will not be able to use a relay unless you manually trigger the relay to turn the reverse lights on or off. Thus it would be much better to repair/replace the reverse switch. And I apologize for misguiding you.
If you had to manually trigger the relay then it would be more appropriate to just wire in another another two position switch which you could trigger yourself to either be on or off. Again, if possible it would be best to remedy your current switch.
You will not be able to use a relay unless you manually trigger the relay to turn the reverse lights on or off. Thus it would be much better to repair/replace the reverse switch. And I apologize for misguiding you.
If you had to manually trigger the relay then it would be more appropriate to just wire in another another two position switch which you could trigger yourself to either be on or off. Again, if possible it would be best to remedy your current switch.
Last edited by satch; 08-24-14 at 10:57 AM.
Trending Topics
#8
Almost Famous
Thread Starter
Join Date: Aug 2010
Location: Virginia
Posts: 94
Likes: 0
Received 0 Likes
on
0 Posts
there is continuity between the r/g and b/y on the harness at the switch, but not between the wires on the switch itself. Booo!
maybe ill tap it lightly with a giant hammer.
The only thing i can think of, its super ghetto but i read it somewhere someone else did it, is rig a toggle that the shifter hits when its in reverse and just hook it up between the two wires on the harness. If i can get it to sit right, that is. its only temporary.
maybe ill tap it lightly with a giant hammer.
The only thing i can think of, its super ghetto but i read it somewhere someone else did it, is rig a toggle that the shifter hits when its in reverse and just hook it up between the two wires on the harness. If i can get it to sit right, that is. its only temporary.
#9
Almost Famous
Thread Starter
Join Date: Aug 2010
Location: Virginia
Posts: 94
Likes: 0
Received 0 Likes
on
0 Posts
thanks satch!, i forgot you had mentioned it above. I had also read one of the aussies had to do it that way, lol
what about the 5th gear part of the switch? will not having it connected it affect driveability?
what about the 5th gear part of the switch? will not having it connected it affect driveability?
#11
Almost Famous
Thread Starter
Join Date: Aug 2010
Location: Virginia
Posts: 94
Likes: 0
Received 0 Likes
on
0 Posts
So, check this out!

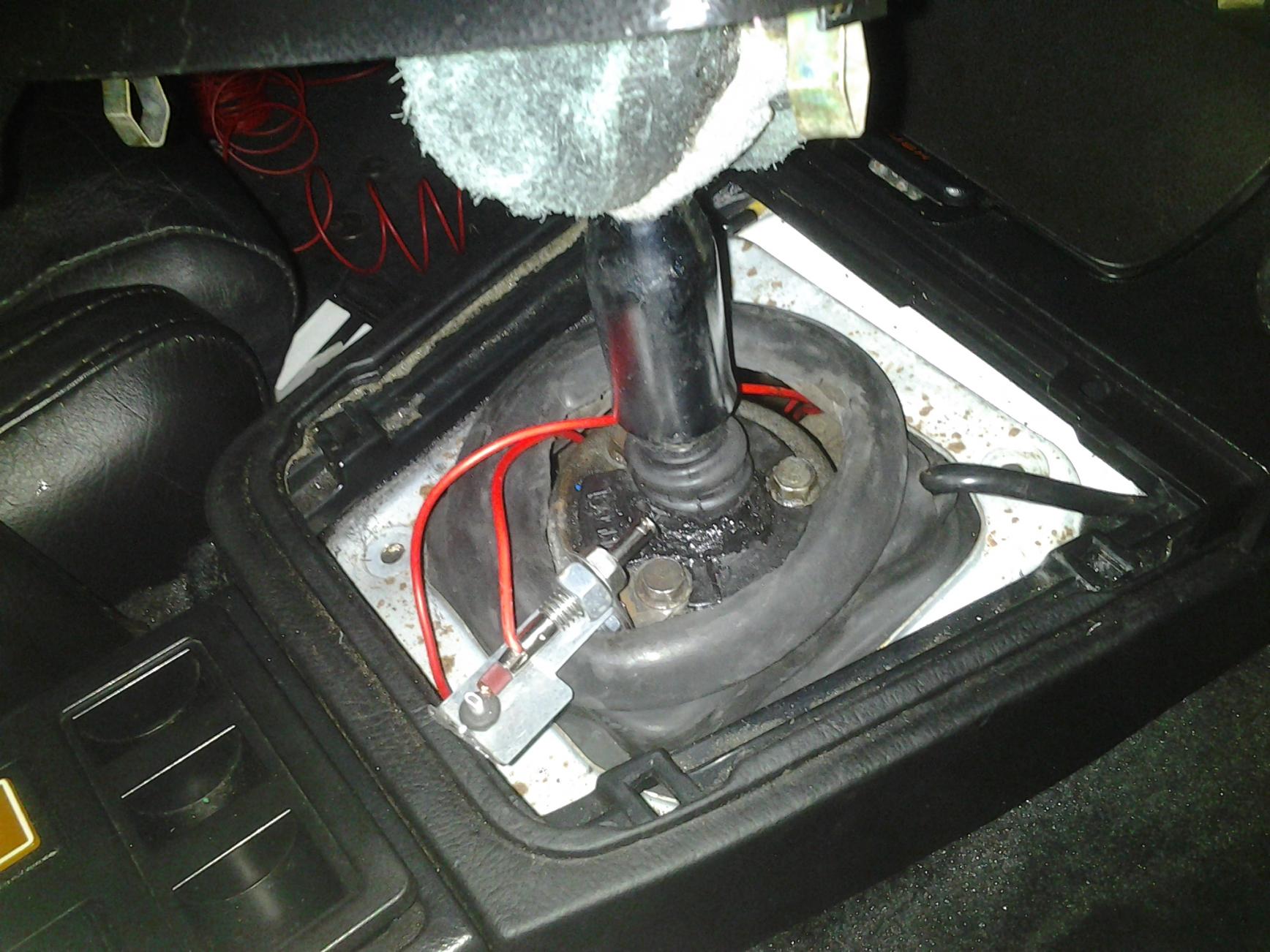

For once the boys at pep came thru for me, found this little 10 amp door jamb switch (Dorman #85932). I ended up cutting a small bit off the end of the switch to shorten it, rigged up a bracket using a "L" bracket i had laying around, and another piece out of a box cutter. I drilled some holes, added a lil grommet and a bare wire crimp and viola! Instant reverse switch! Actually, it took me an evening, but Macgyver eat your heart out.
The red end piece on the switch is actually a part of a tiny positap. i crimped it on (carefully) for good measure. And everything fit back nicely and inconspicuous.
I tried to silicon seal the inner shifter boot cause it was torn, but not much luck with that. Im waiting for my new one to arrive.
For once the boys at pep came thru for me, found this little 10 amp door jamb switch (Dorman #85932). I ended up cutting a small bit off the end of the switch to shorten it, rigged up a bracket using a "L" bracket i had laying around, and another piece out of a box cutter. I drilled some holes, added a lil grommet and a bare wire crimp and viola! Instant reverse switch! Actually, it took me an evening, but Macgyver eat your heart out.
The red end piece on the switch is actually a part of a tiny positap. i crimped it on (carefully) for good measure. And everything fit back nicely and inconspicuous.
I tried to silicon seal the inner shifter boot cause it was torn, but not much luck with that. Im waiting for my new one to arrive.
#13
Almost Famous
Thread Starter
Join Date: Aug 2010
Location: Virginia
Posts: 94
Likes: 0
Received 0 Likes
on
0 Posts
i just used the b/y to r/g wires at the old switch. b/y is a fused source, right?
ill add in some inline fuses. the only reason i didnt is because i have a switch for my fuel pump that didnt have inline fuses either, so i didnt think it was necessary. r/g wire may need one, huh?
ill add in some inline fuses. the only reason i didnt is because i have a switch for my fuel pump that didnt have inline fuses either, so i didnt think it was necessary. r/g wire may need one, huh?
#14
(blank)
iTrader: (1)
I commend you for finding another way of fixing your problem, but I'm WAY too OCD to approve!
So basically, the problem was the switch? I would have just sourced another one from a member or junkyard. It always scares me when I see things fixed differently. Then again, I still have the stock radio, lol, so that tells you something. If I had done this as an emergency, I'd go back to stock whenever I'd run across a stock switch. Just cleaner.
So basically, the problem was the switch? I would have just sourced another one from a member or junkyard. It always scares me when I see things fixed differently. Then again, I still have the stock radio, lol, so that tells you something. If I had done this as an emergency, I'd go back to stock whenever I'd run across a stock switch. Just cleaner.
#15
Almost Famous
Thread Starter
Join Date: Aug 2010
Location: Virginia
Posts: 94
Likes: 0
Received 0 Likes
on
0 Posts
Believe me, id like to "just replace it", however im not going to drop the transmission just for that. Ill want to replace everything then. This is just a temporary fix, to get by inspection til i can afford to do fix it right.
the only metal to metal contact is the end of the red tip that touches the little rod there, which is just a butt conector with one end crimped. i peeled the casing off and pushed it through that rubber grommet. It holds up nice with no arcing, so far.
the only metal to metal contact is the end of the red tip that touches the little rod there, which is just a butt conector with one end crimped. i peeled the casing off and pushed it through that rubber grommet. It holds up nice with no arcing, so far.
